Brass Half-Moon Glass Lens Step Light, In-Ground, 5 Inch, Gun Metal, 15° Narrow Beam Angle, 350 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

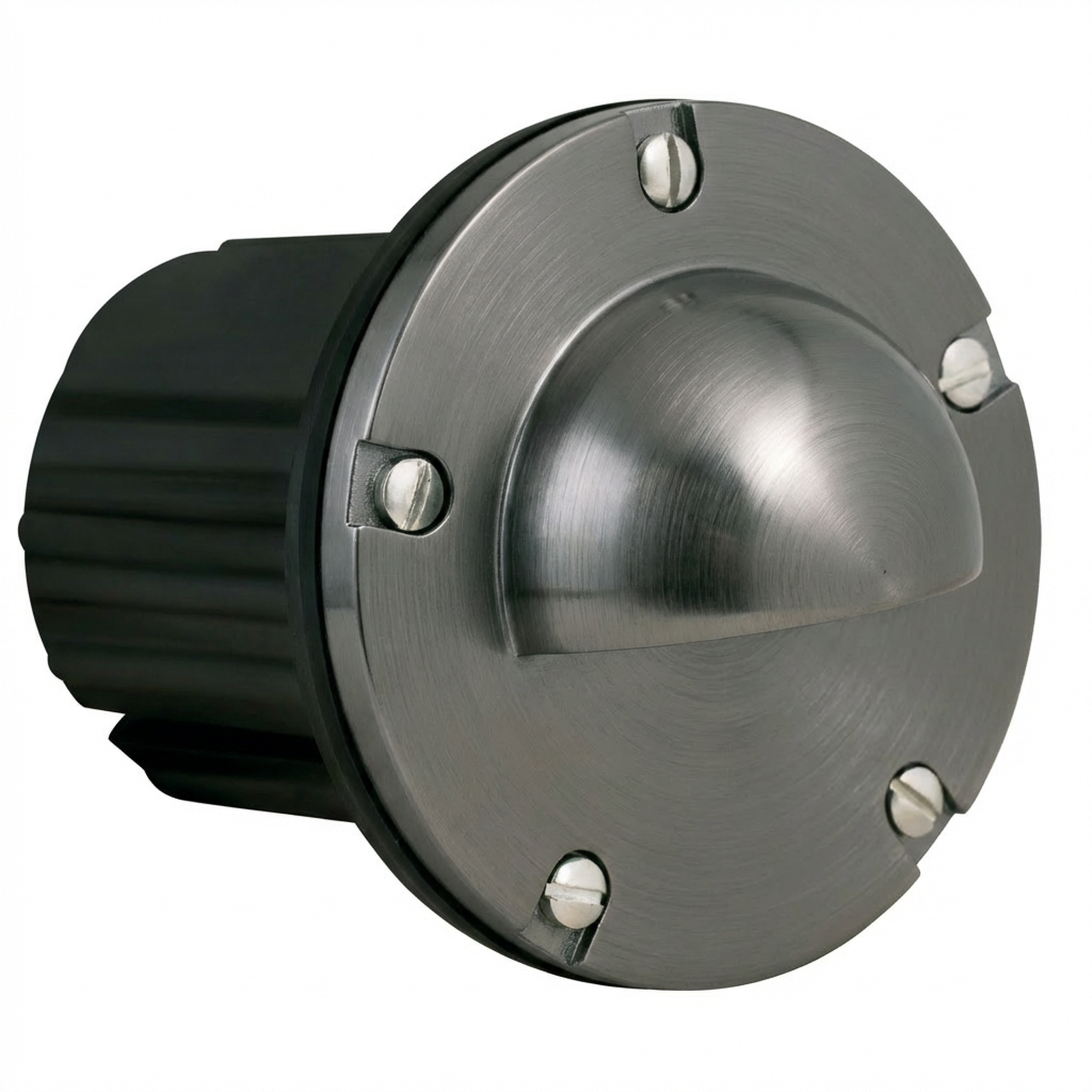

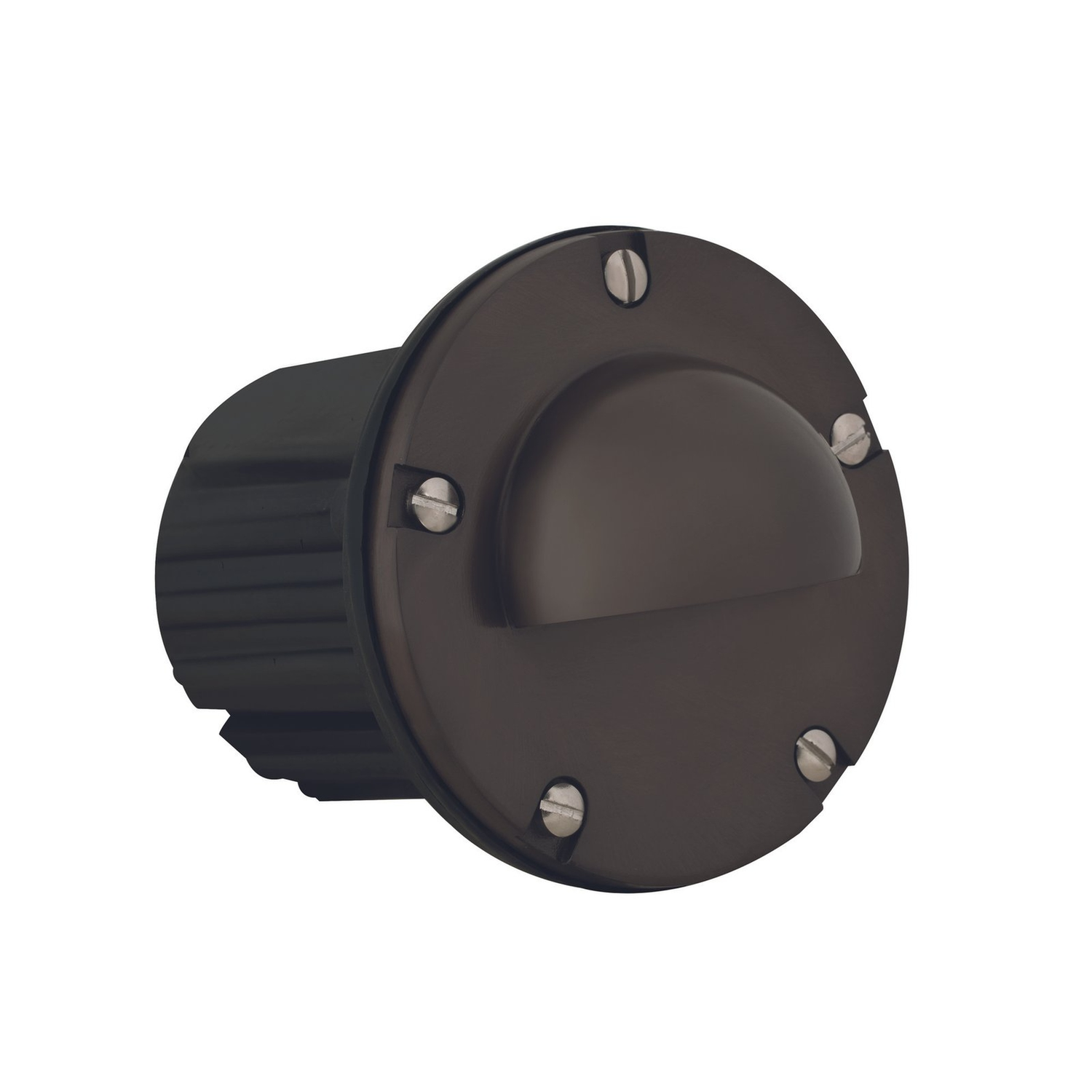

This cast brass faceplate and composite housing half-moon step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 350 lumens with a 15° Narrow Beam Angle. A remote 12V transformer is required.
Features
-
- Die-cast brass half-moon faceplate in Gun Metal finish; natural toning process means finish will vary
- Injection-molded composite housing for high UV stability; sealed with a silicone O-ring gasket
- Includes MR16 LED lamp: 5W, approximately 350 Lumens, 2700K, CRI 80, 15° narrow spot beam, rated life 50,000 hours
- LED operating range 9–17V; requires a remote 12V transformer
- Top-grade adjustable ceramic bi-pin socket with retention clip; socket tilts ±25°
- Dimensions: approx 4-7/8 Inch Dia x 6 Inch length
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Suitable for wall recessed mounting, in-ground direct burial, or concrete encasement
- ETL listed
- Limited lifetime warranty on brass faceplate
- 5-year manufacturer warranty on the lamp
This cast brass faceplate and composite housing half-moon step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 350 lumens with a 15° Narrow Beam Angle. A remote 12V transformer is required.
Features
-
- Die-cast brass half-moon faceplate in Gun Metal finish; natural toning process means finish will vary
- Injection-molded composite housing for high UV stability; sealed with a silicone O-ring gasket
- Includes MR16 LED lamp: 5W, approximately 350 Lumens, 2700K, CRI 80, 15° narrow spot beam, rated life 50,000 hours
- LED operating range 9–17V; requires a remote 12V transformer
- Top-grade adjustable ceramic bi-pin socket with retention clip; socket tilts ±25°
- Dimensions: approx 4-7/8 Inch Dia x 6 Inch length
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Suitable for wall recessed mounting, in-ground direct burial, or concrete encasement
- ETL listed
- Limited lifetime warranty on brass faceplate
- 5-year manufacturer warranty on the lamp
Overview
This cast brass faceplate and composite housing half-moon step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 350 lumens with a 15° Narrow Beam Angle. A remote 12V transformer is required.
Features
-
- Die-cast brass half-moon faceplate in Gun Metal finish; natural toning process means finish will vary
- Injection-molded composite housing for high UV stability; sealed with a silicone O-ring gasket
- Includes MR16 LED lamp: 5W, approximately 350 Lumens, 2700K, CRI 80, 15° narrow spot beam, rated life 50,000 hours
- LED operating range 9–17V; requires a remote 12V transformer
- Top-grade adjustable ceramic bi-pin socket with retention clip; socket tilts ±25°
- Dimensions: approx 4-7/8 Inch Dia x 6 Inch length
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Suitable for wall recessed mounting, in-ground direct burial, or concrete encasement
- ETL listed
- Limited lifetime warranty on brass faceplate
- 5-year manufacturer warranty on the lamp
Specifications
| Brass Half-Moon Glass Lens Step Light, In-Ground, 5 Inch, Gun Metal, 15° Narrow Beam Angle, 350 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 350LM |
| Efficacy | 70LM/W |
| Wattage | 5W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 15° Narrow Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | Approx. 4-7/8" Dia. x 6" L |
| Finish | Gun Metal |
| Material | Brass |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime warranty on brass faceplate; composite housing per manufacturer terms; 5-year manufacturer warranty on MR16 LED lamp. |
