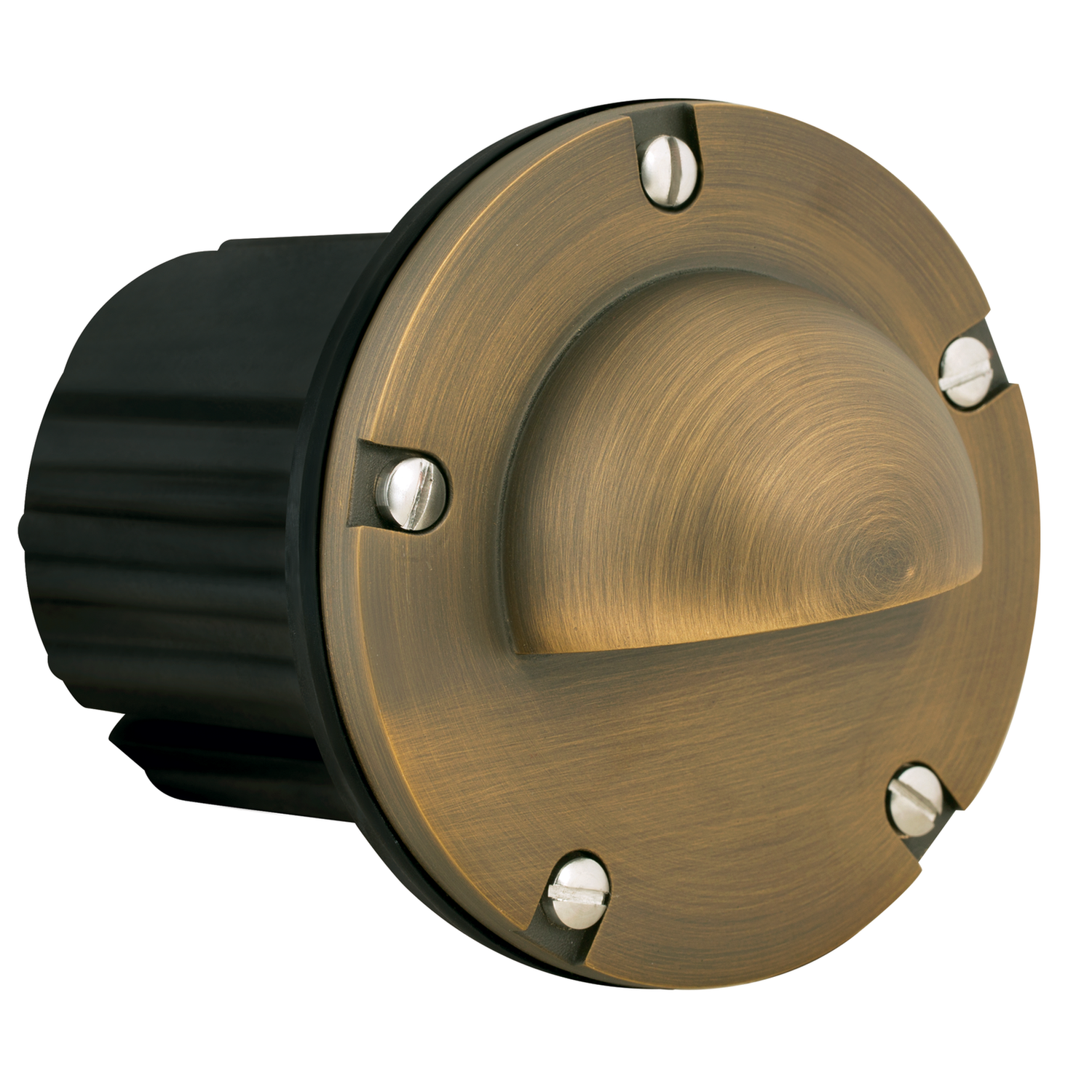

Brass Half-Moon Glass Lens Step Light, In-Ground, 5 Inch, Antique Bronze, 15° Narrow Beam Angle, 350 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This cast brass faceplate and composite housing half-moon step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 350 lumens with a 15° Narrow Beam Angle. A remote 12V transformer is required.
Features
-
- Die-cast brass faceplate for corrosion-resistant architectural finish
- Injection-molded composite housing with high UV stability for long outdoor life
- Frosted heat-resistant flat glass lens sealed with a silicone O-ring for weather-tight protection
- Adjustable ceramic bi-pin MR16 socket tilts ±25° with retention clip and Teflon-jacketed leads for precise aiming
- Dimensions: 4-7/8" Dia face, 6" overall length, approx 4-5/8" deep
- Electrical: requires remote 12V magnetic transformer; prewired with 3 ft 18-2 SJT-W direct-burial cord
- Included lamp: 5W LED MR16 style, 350 Lumens, 2700K, 15° beam, CRI 80, dimmable, rated life ~50,000 hours; operating range 9–17V
- Warranty: limited lifetime on brass faceplate; 10 years on housing (manufacturer defects); 5-year manufacturer’s warranty on lamp
This cast brass faceplate and composite housing half-moon step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 350 lumens with a 15° Narrow Beam Angle. A remote 12V transformer is required.
Features
-
- Die-cast brass faceplate for corrosion-resistant architectural finish
- Injection-molded composite housing with high UV stability for long outdoor life
- Frosted heat-resistant flat glass lens sealed with a silicone O-ring for weather-tight protection
- Adjustable ceramic bi-pin MR16 socket tilts ±25° with retention clip and Teflon-jacketed leads for precise aiming
- Dimensions: 4-7/8" Dia face, 6" overall length, approx 4-5/8" deep
- Electrical: requires remote 12V magnetic transformer; prewired with 3 ft 18-2 SJT-W direct-burial cord
- Included lamp: 5W LED MR16 style, 350 Lumens, 2700K, 15° beam, CRI 80, dimmable, rated life ~50,000 hours; operating range 9–17V
- Warranty: limited lifetime on brass faceplate; 10 years on housing (manufacturer defects); 5-year manufacturer’s warranty on lamp
Overview
This cast brass faceplate and composite housing half-moon step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 350 lumens with a 15° Narrow Beam Angle. A remote 12V transformer is required.
Features
-
- Die-cast brass faceplate for corrosion-resistant architectural finish
- Injection-molded composite housing with high UV stability for long outdoor life
- Frosted heat-resistant flat glass lens sealed with a silicone O-ring for weather-tight protection
- Adjustable ceramic bi-pin MR16 socket tilts ±25° with retention clip and Teflon-jacketed leads for precise aiming
- Dimensions: 4-7/8" Dia face, 6" overall length, approx 4-5/8" deep
- Electrical: requires remote 12V magnetic transformer; prewired with 3 ft 18-2 SJT-W direct-burial cord
- Included lamp: 5W LED MR16 style, 350 Lumens, 2700K, 15° beam, CRI 80, dimmable, rated life ~50,000 hours; operating range 9–17V
- Warranty: limited lifetime on brass faceplate; 10 years on housing (manufacturer defects); 5-year manufacturer’s warranty on lamp
Specifications
| Brass Half-Moon Glass Lens Step Light, In-Ground, 5 Inch, Antique Bronze, 15° Narrow Beam Angle, 350 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 350LM |
| Efficacy | 70LM/W |
| Wattage | 5W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 15° Narrow Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. face, 6" overall L, Approx. 4-5/8" D |
| Finish | Antique Bronze |
| Material | Die-cast brass faceplate |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime on brass faceplate, 10 years on housing for manufacturer defects, and 5-year manufacturer's warranty on the lamp |
