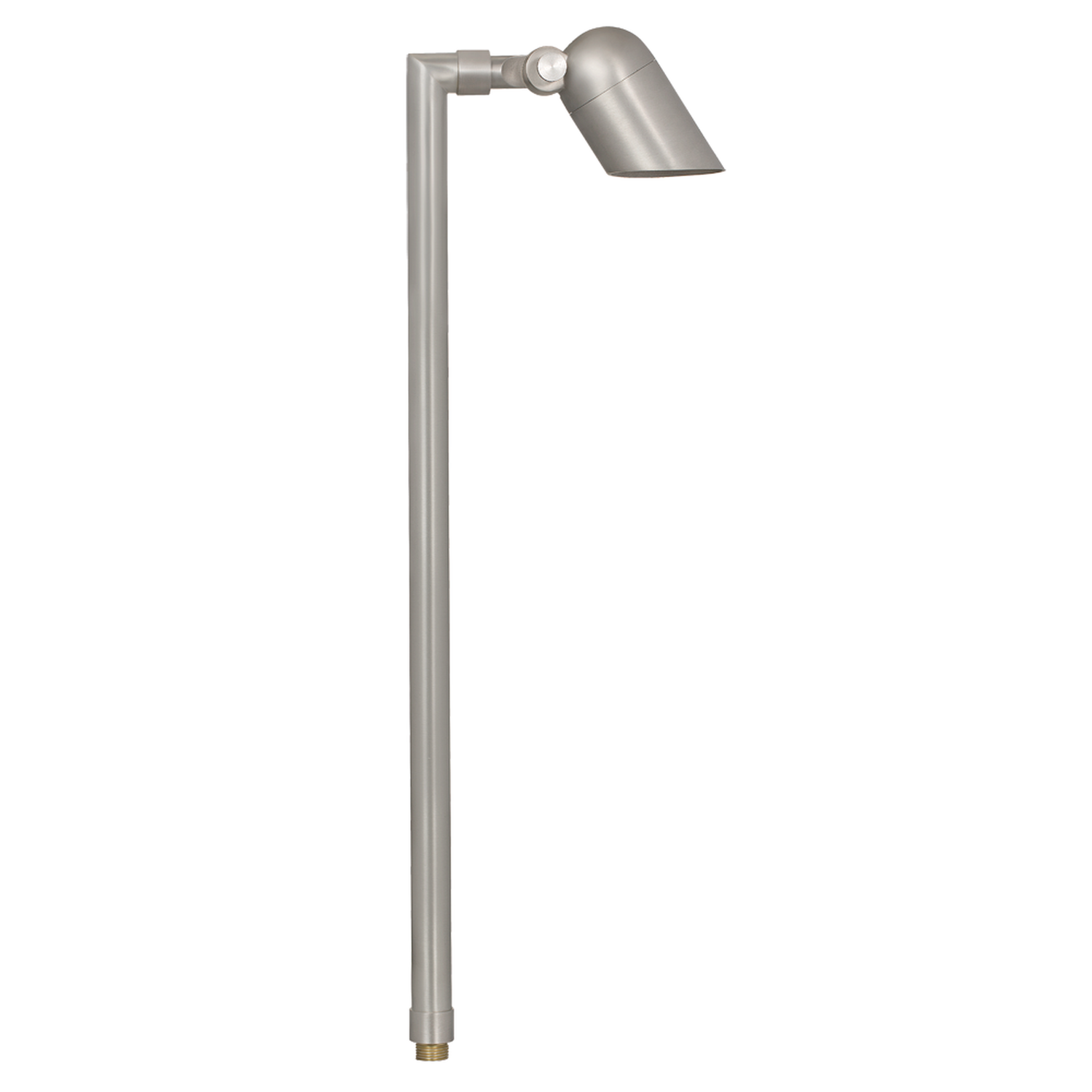

Brass Mini Single Head Path Light, 24 Inch Stem, Silver Plated, 60° Wide Beam Angle, 270 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This mini single-head path light is an architectural-grade, corrosion-resistant cast brass fixture finished in Silver Plated. The low-voltage design comes bundled with a 3.5W MR16 LED lamp rated at 270 Lumens and 2700K, delivering a 60° wide-flood beam with a 50,000-hour rated life. The unit arrives prewired with a 3 ft direct-burial cord and mounts on an included ground spike. It is dimmable and ETL listed for durable outdoor use. Ideal for lining garden walkways and driveways, providing focused ground-level illumination that safely guides foot traffic through outdoor spaces.
Features
-
- Corrosion-resistant cast brass housing and shroud with adjustable cast brass knuckle and thumb screw for precise aiming
- Silver Plated finish with natural toning process
- Clear heat-resistant convex glass lens
- Top-grade fixed ceramic bi-pin socket with retention clip
- Includes 3.5W MR16 LED lamp: 270 Lumens, 2700K, 60° beam angle, CRI 80, 50,000-hour rated life
- LED operating range 9–17V; dimmable for low-voltage control
- 12V fixture requires remote 12V transformer; accepts up to 50W max (halogen equivalent)
- Prewired with 3 ft 18-2 SPT2-W direct-burial cord
- Supplied injection-molded ground spike with 1/2" NPT female hub
- Head approx 2-1/2" Dia; overall height 24"
This mini single-head path light is an architectural-grade, corrosion-resistant cast brass fixture finished in Silver Plated. The low-voltage design comes bundled with a 3.5W MR16 LED lamp rated at 270 Lumens and 2700K, delivering a 60° wide-flood beam with a 50,000-hour rated life. The unit arrives prewired with a 3 ft direct-burial cord and mounts on an included ground spike. It is dimmable and ETL listed for durable outdoor use. Ideal for lining garden walkways and driveways, providing focused ground-level illumination that safely guides foot traffic through outdoor spaces.
Features
-
- Corrosion-resistant cast brass housing and shroud with adjustable cast brass knuckle and thumb screw for precise aiming
- Silver Plated finish with natural toning process
- Clear heat-resistant convex glass lens
- Top-grade fixed ceramic bi-pin socket with retention clip
- Includes 3.5W MR16 LED lamp: 270 Lumens, 2700K, 60° beam angle, CRI 80, 50,000-hour rated life
- LED operating range 9–17V; dimmable for low-voltage control
- 12V fixture requires remote 12V transformer; accepts up to 50W max (halogen equivalent)
- Prewired with 3 ft 18-2 SPT2-W direct-burial cord
- Supplied injection-molded ground spike with 1/2" NPT female hub
- Head approx 2-1/2" Dia; overall height 24"
Overview
This mini single-head path light is an architectural-grade, corrosion-resistant cast brass fixture finished in Silver Plated. The low-voltage design comes bundled with a 3.5W MR16 LED lamp rated at 270 Lumens and 2700K, delivering a 60° wide-flood beam with a 50,000-hour rated life. The unit arrives prewired with a 3 ft direct-burial cord and mounts on an included ground spike. It is dimmable and ETL listed for durable outdoor use. Ideal for lining garden walkways and driveways, providing focused ground-level illumination that safely guides foot traffic through outdoor spaces.
Features
-
- Corrosion-resistant cast brass housing and shroud with adjustable cast brass knuckle and thumb screw for precise aiming
- Silver Plated finish with natural toning process
- Clear heat-resistant convex glass lens
- Top-grade fixed ceramic bi-pin socket with retention clip
- Includes 3.5W MR16 LED lamp: 270 Lumens, 2700K, 60° beam angle, CRI 80, 50,000-hour rated life
- LED operating range 9–17V; dimmable for low-voltage control
- 12V fixture requires remote 12V transformer; accepts up to 50W max (halogen equivalent)
- Prewired with 3 ft 18-2 SPT2-W direct-burial cord
- Supplied injection-molded ground spike with 1/2" NPT female hub
- Head approx 2-1/2" Dia; overall height 24"
Specifications
| Brass Mini Single Head Path Light, 24 Inch Stem, Silver Plated, 60° Wide Beam Angle, 270 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 270LM |
| Efficacy | 77.1LM/W |
| Wattage | 3.5W |
| Wattage Equivalency | 25W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K |
| CRI | 80.0+ |
| Beam Angle | 60° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Included Components | COB LED |
| Mount Type | Ground Spike |
| Dimensions | Head Approx. 2-1/2" Dia. H 24" |
| Finish | Silver Plated |
| Material | Cast brass (corrosion-resistant) |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited warranty on cast brass fixture housing per manufacturer terms; Five (5) years limited warranty on LED module |
