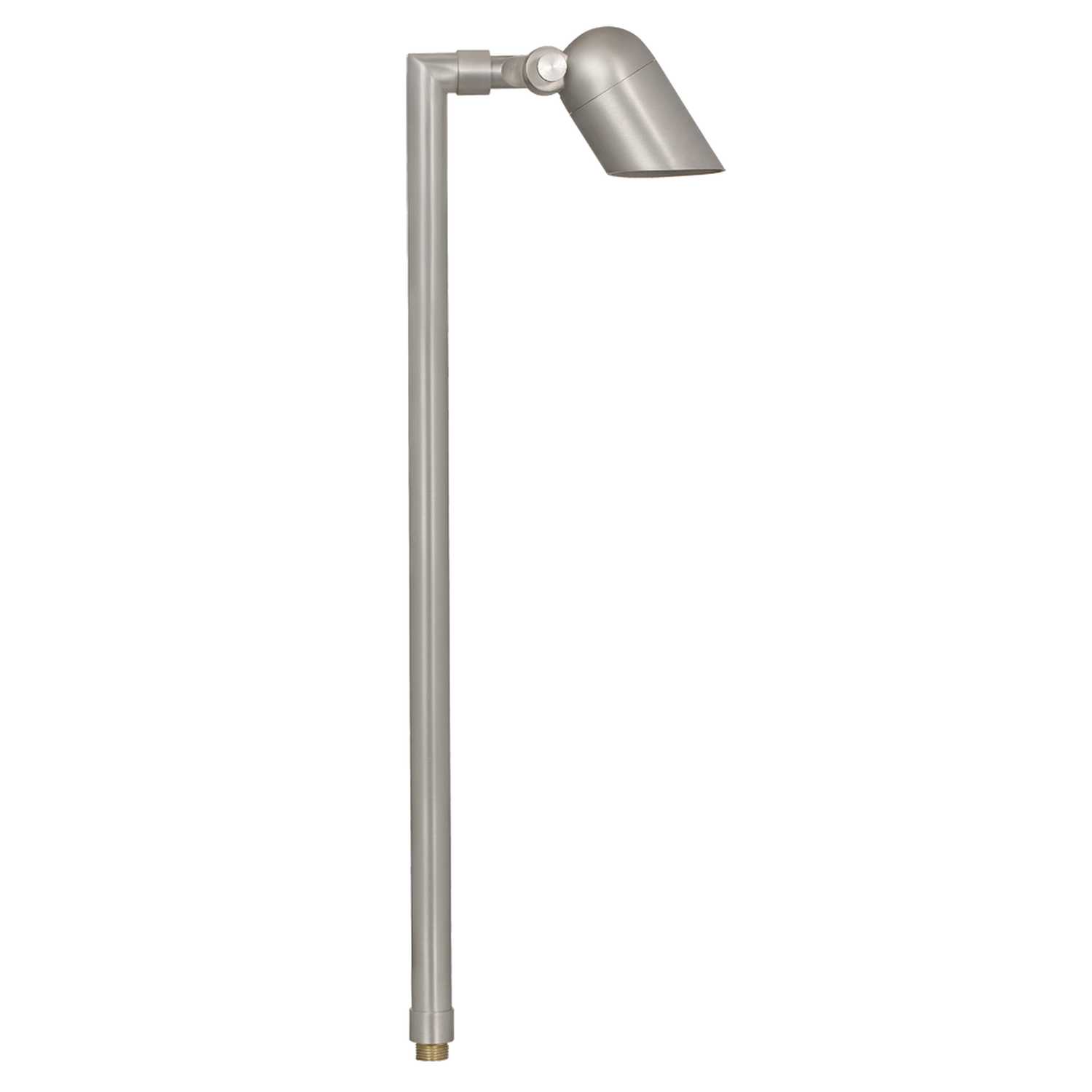

Brass Mini Single Head Path Light, 24 Inch Stem, Silver Plated, 15° Narrow Beam Angle, 270 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This mini single-head path light features a corrosion-resistant cast brass housing in a Silver Plated finish, mounted on a 24-Inch solid brass stem, with a head approximately 2-1/2" in Dia. The 12V MR16 fixture is prewired with a 3 ft direct-burial cord and includes a bundled 3.5W MR16 LED lamp with a 15° narrow beam at 2700K, delivering 270 Lumens, CRI 80, and a 50,000-hour rated life. It is dimmable, ETL listed, and ships with an injection-molded ground spike for easy landscape installation. Ideal for lining garden walkways and driveways, guiding foot traffic safely through outdoor spaces.
Features
-
- Mini single-head path light in Silver Plated finish for architectural area and path lighting
- Corrosion-resistant cast brass housing and shroud with adjustable cast brass knuckle and thumb screw for aiming
- Clear heat-resistant convex glass lens with silicone double gasket for watertight sealing
- Includes MR16 3.5W LED lamp: 270 Lumens, 2700K, CRI 80, 15° narrow beam angle, dimmable, 50,000-hour rated life
- Top-grade fixed ceramic bi-pin socket with retention clip; 12V MR16 system; remote 12V transformer required; LED lamp operating range 9–17V
- 24" solid brass stem with 1/2" NPT bottom; head approx 2-1/2" Dia
- Injection-molded ground spike with 1/2" NPT female hub supplied
- Prewired with 3 ft 18-2 SPT2-W direct-burial cord
- ETL listed; rated for -22°F to 122°F operating temperatures
- Some assembly required; apply grease on threaded parts during installation
This mini single-head path light features a corrosion-resistant cast brass housing in a Silver Plated finish, mounted on a 24-Inch solid brass stem, with a head approximately 2-1/2" in Dia. The 12V MR16 fixture is prewired with a 3 ft direct-burial cord and includes a bundled 3.5W MR16 LED lamp with a 15° narrow beam at 2700K, delivering 270 Lumens, CRI 80, and a 50,000-hour rated life. It is dimmable, ETL listed, and ships with an injection-molded ground spike for easy landscape installation. Ideal for lining garden walkways and driveways, guiding foot traffic safely through outdoor spaces.
Features
-
- Mini single-head path light in Silver Plated finish for architectural area and path lighting
- Corrosion-resistant cast brass housing and shroud with adjustable cast brass knuckle and thumb screw for aiming
- Clear heat-resistant convex glass lens with silicone double gasket for watertight sealing
- Includes MR16 3.5W LED lamp: 270 Lumens, 2700K, CRI 80, 15° narrow beam angle, dimmable, 50,000-hour rated life
- Top-grade fixed ceramic bi-pin socket with retention clip; 12V MR16 system; remote 12V transformer required; LED lamp operating range 9–17V
- 24" solid brass stem with 1/2" NPT bottom; head approx 2-1/2" Dia
- Injection-molded ground spike with 1/2" NPT female hub supplied
- Prewired with 3 ft 18-2 SPT2-W direct-burial cord
- ETL listed; rated for -22°F to 122°F operating temperatures
- Some assembly required; apply grease on threaded parts during installation
Overview
This mini single-head path light features a corrosion-resistant cast brass housing in a Silver Plated finish, mounted on a 24-Inch solid brass stem, with a head approximately 2-1/2" in Dia. The 12V MR16 fixture is prewired with a 3 ft direct-burial cord and includes a bundled 3.5W MR16 LED lamp with a 15° narrow beam at 2700K, delivering 270 Lumens, CRI 80, and a 50,000-hour rated life. It is dimmable, ETL listed, and ships with an injection-molded ground spike for easy landscape installation. Ideal for lining garden walkways and driveways, guiding foot traffic safely through outdoor spaces.
Features
-
- Mini single-head path light in Silver Plated finish for architectural area and path lighting
- Corrosion-resistant cast brass housing and shroud with adjustable cast brass knuckle and thumb screw for aiming
- Clear heat-resistant convex glass lens with silicone double gasket for watertight sealing
- Includes MR16 3.5W LED lamp: 270 Lumens, 2700K, CRI 80, 15° narrow beam angle, dimmable, 50,000-hour rated life
- Top-grade fixed ceramic bi-pin socket with retention clip; 12V MR16 system; remote 12V transformer required; LED lamp operating range 9–17V
- 24" solid brass stem with 1/2" NPT bottom; head approx 2-1/2" Dia
- Injection-molded ground spike with 1/2" NPT female hub supplied
- Prewired with 3 ft 18-2 SPT2-W direct-burial cord
- ETL listed; rated for -22°F to 122°F operating temperatures
- Some assembly required; apply grease on threaded parts during installation
Specifications
| Brass Mini Single Head Path Light, 24 Inch Stem, Silver Plated, 15° Narrow Beam Angle, 270 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 270LM |
| Efficacy | 77.1LM/W |
| Wattage | 3.5W |
| Wattage Equivalency | 25W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 15° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Included Components | COB LED |
| Mount Type | Ground Spike |
| Dimensions | Head Approx. 2-1/2" Dia. H 24" |
| Finish | Silver Plated |
| Material | Corrosion-resistant cast brass |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited warranty on cast brass fixture housing per manufacturer terms; Five (5) years limited warranty on LED module |
