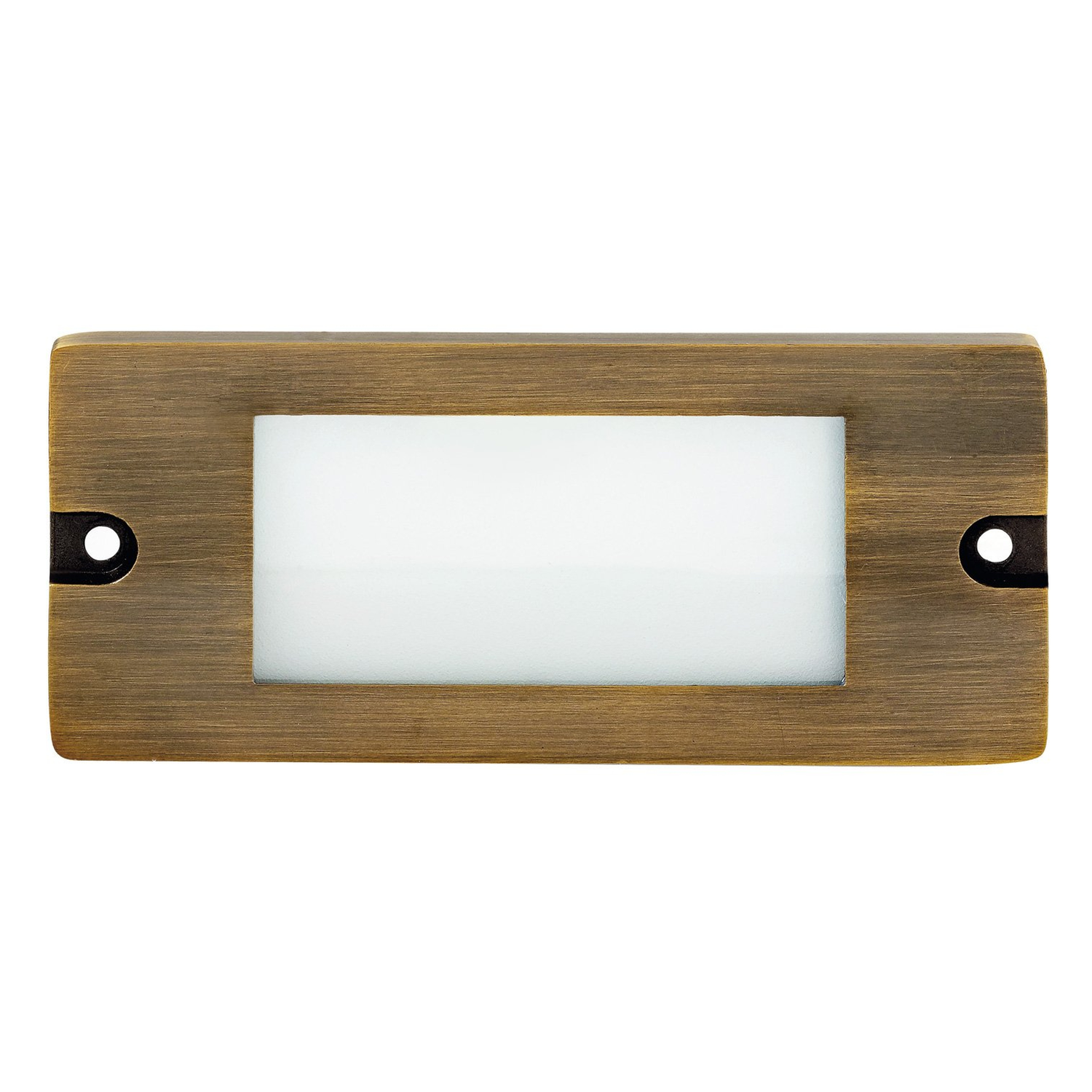

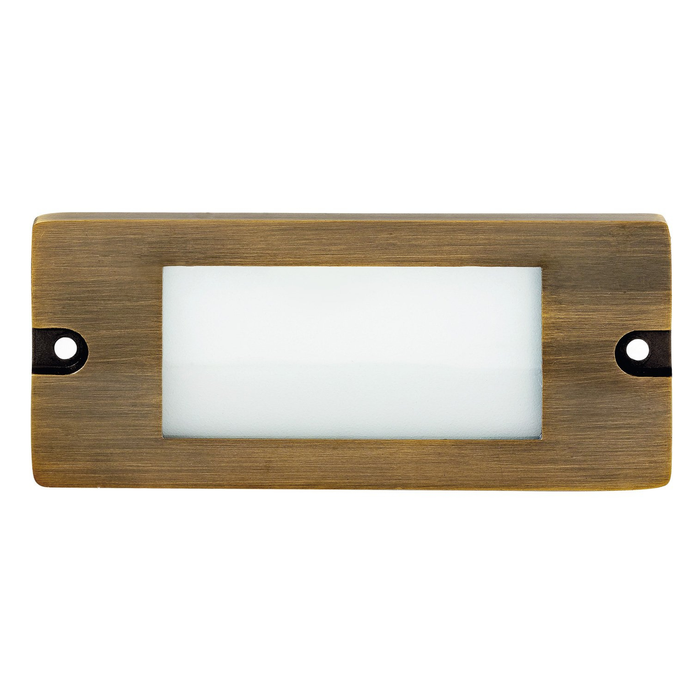

Brass Lensed Step Light, Surface-Mount, 5.5 Inch, Antique Bronze, 250 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This 5-1/2" wide architectural brass step and brick light features a die-cast faceplate and stainless steel backplate for surface mounting on walls or steps. It includes a removable 2.5W integrated LED that delivers 250 Lumens at 3000K with CRI > 80, is dimmable, and carries a 30,000-hour rated life. Designed for 12V AC systems with 8–15V input, the fixture is prewired with a 25 ft direct-burial cord and includes a limited lifetime housing warranty plus a 10-year LED module warranty. Ideal for illuminating stair risers, deck edges, and entryway steps, delivering safe, low-profile accent lighting along residential and commercial pathways.
Features
-
- Heavy-duty, corrosion-resistant cast brass housing for long-lasting outdoor use
- Die-cast brass faceplate with stainless steel backplate and frosted lens for uniform illumination
- Dimensions: 5-1/2" W x 2-1/2" H x 1/2" D for low-profile step and brick installations
- Integrated removable 2.5W LED included: 250 Lumens, 3000K, CRI > 80; 20W halogen equivalent; dimmable; rated life 30,000 hours
- Designed for 12V AC systems; LED input range 8–15V AC; requires remote magnetic transformer
- Prewired with 25 ft of 18-2 SPT2-W direct-burial cord
- Surface mount for walls and steps; includes two screws and two anchor bolts; no backbox required
- Operating temperature range: -40°F to 124°F
This 5-1/2" wide architectural brass step and brick light features a die-cast faceplate and stainless steel backplate for surface mounting on walls or steps. It includes a removable 2.5W integrated LED that delivers 250 Lumens at 3000K with CRI > 80, is dimmable, and carries a 30,000-hour rated life. Designed for 12V AC systems with 8–15V input, the fixture is prewired with a 25 ft direct-burial cord and includes a limited lifetime housing warranty plus a 10-year LED module warranty. Ideal for illuminating stair risers, deck edges, and entryway steps, delivering safe, low-profile accent lighting along residential and commercial pathways.
Features
-
- Heavy-duty, corrosion-resistant cast brass housing for long-lasting outdoor use
- Die-cast brass faceplate with stainless steel backplate and frosted lens for uniform illumination
- Dimensions: 5-1/2" W x 2-1/2" H x 1/2" D for low-profile step and brick installations
- Integrated removable 2.5W LED included: 250 Lumens, 3000K, CRI > 80; 20W halogen equivalent; dimmable; rated life 30,000 hours
- Designed for 12V AC systems; LED input range 8–15V AC; requires remote magnetic transformer
- Prewired with 25 ft of 18-2 SPT2-W direct-burial cord
- Surface mount for walls and steps; includes two screws and two anchor bolts; no backbox required
- Operating temperature range: -40°F to 124°F
Overview
This 5-1/2" wide architectural brass step and brick light features a die-cast faceplate and stainless steel backplate for surface mounting on walls or steps. It includes a removable 2.5W integrated LED that delivers 250 Lumens at 3000K with CRI > 80, is dimmable, and carries a 30,000-hour rated life. Designed for 12V AC systems with 8–15V input, the fixture is prewired with a 25 ft direct-burial cord and includes a limited lifetime housing warranty plus a 10-year LED module warranty. Ideal for illuminating stair risers, deck edges, and entryway steps, delivering safe, low-profile accent lighting along residential and commercial pathways.
Features
-
- Heavy-duty, corrosion-resistant cast brass housing for long-lasting outdoor use
- Die-cast brass faceplate with stainless steel backplate and frosted lens for uniform illumination
- Dimensions: 5-1/2" W x 2-1/2" H x 1/2" D for low-profile step and brick installations
- Integrated removable 2.5W LED included: 250 Lumens, 3000K, CRI > 80; 20W halogen equivalent; dimmable; rated life 30,000 hours
- Designed for 12V AC systems; LED input range 8–15V AC; requires remote magnetic transformer
- Prewired with 25 ft of 18-2 SPT2-W direct-burial cord
- Surface mount for walls and steps; includes two screws and two anchor bolts; no backbox required
- Operating temperature range: -40°F to 124°F
Specifications
| Brass Lensed Step Light, Surface-Mount, 5.5 Inch, Antique Bronze, 250 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 250LM |
| Efficacy | 100LM/W |
| Wattage | 2.5W |
| Wattage Equivalency | 20W |
| Voltage | Low Voltage |
| Operating Temperature | -40°F to 124°F |
| Dimmable | Dimmable |
| Color Temperature | 3000K |
| CRI | 80+ |
| Trim Color | Antique Bronze |
| Power Type | Low Voltage 12V |
| Mount Type | Surface |
| Dimensions | 5-1/2" W x 2-1/2" H x 1/2" D |
| Finish | Antique Bronze |
| Shade Material | Stainless steel backplate with frosted lens |
| Material | Cast brass housing, die-cast brass faceplate, stainless steel backplate with frosted lens |
| Lifetime | 30,000 Hours |
| Warranty | Limited lifetime fixture warranty; 10-year LED module warranty |
