Brass Lensed Step Light, Surface-Mount, 5.5 Inch, Silver Plated, 250 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

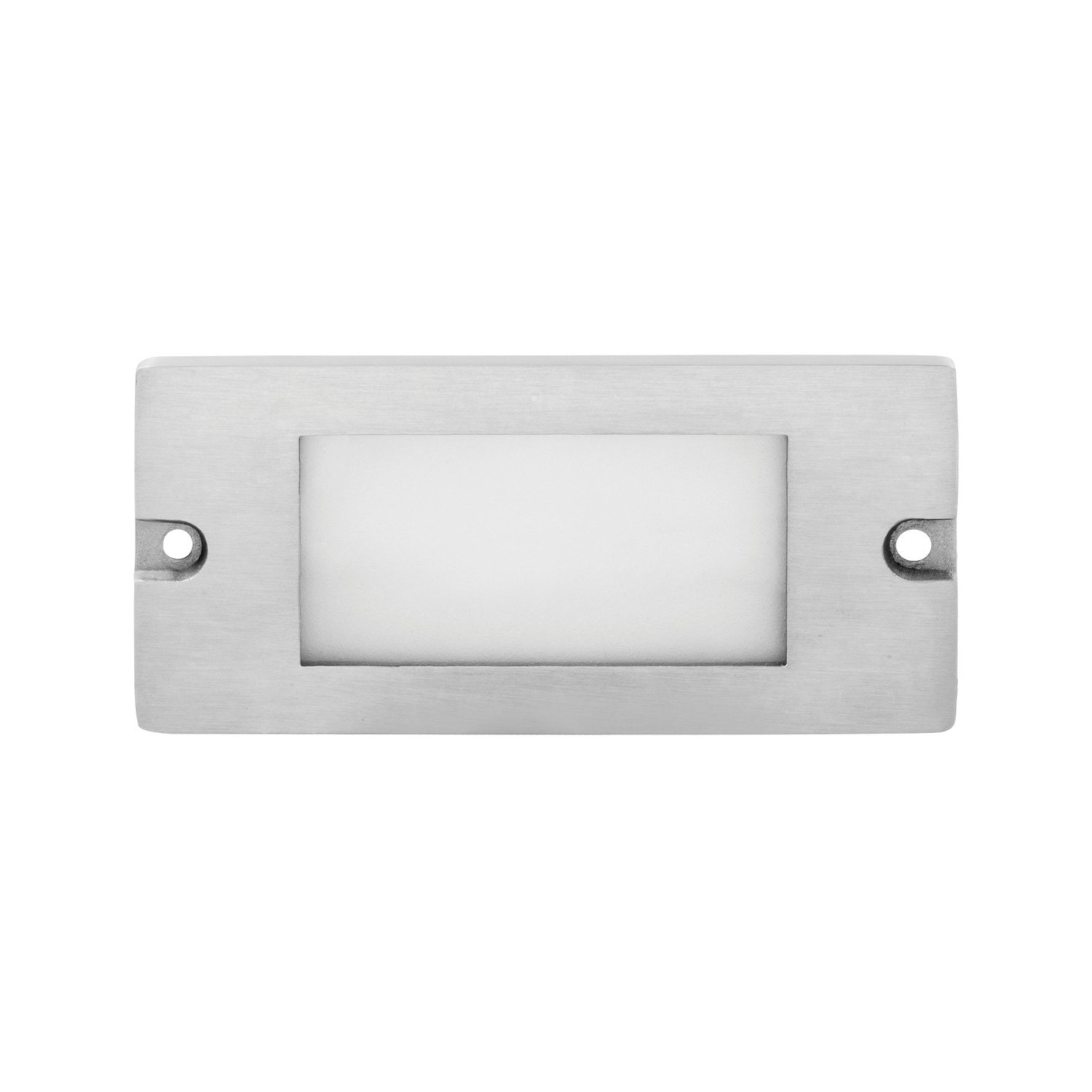

This compact 5-1/2" W x 2-1/2" H x 1/2" D Silver Plated brass step light mounts directly to walls and steps, featuring an integrated removable 2.5W LED that delivers 250 Lumens at 3000K with a CRI Ra > 80, is dimmable, and is rated for 30,000 hours. Construction combines cast brass with a die-cast faceplate and frosted lens on a stainless steel backplate, and the fixture ships prewired with a 25 ft cord requiring a remote 12V magnetic transformer. Ideal for illuminating stair risers, deck edges, and entryway steps in residential and commercial settings.
Features
-
- Small lensed backless box step light, 5-1/2" W x 2-1/2" H x 1/2" D; Silver Plated finish with natural toning process
- Heavy-duty corrosion-resistant cast brass housing and die-cast brass faceplate; frosted lens fitted to a stainless steel backplate
- Integrated removable 2.5W LED delivering 250 Lumens at 3000K; CRI Ra > 80; rated 30,000 hours
- Operates on 12V AC with 8–15V operating range; requires remote 12V magnetic transformer; not for electronic transformers
- Prewired with 25 ft 18-2 SPT2-W direct-burial cord; includes two screws and two anchor bolts for surface mounting; 20W halogen equivalent
- Limited lifetime warranty on fixture housing; 10-year warranty on removable LED
This compact 5-1/2" W x 2-1/2" H x 1/2" D Silver Plated brass step light mounts directly to walls and steps, featuring an integrated removable 2.5W LED that delivers 250 Lumens at 3000K with a CRI Ra > 80, is dimmable, and is rated for 30,000 hours. Construction combines cast brass with a die-cast faceplate and frosted lens on a stainless steel backplate, and the fixture ships prewired with a 25 ft cord requiring a remote 12V magnetic transformer. Ideal for illuminating stair risers, deck edges, and entryway steps in residential and commercial settings.
Features
-
- Small lensed backless box step light, 5-1/2" W x 2-1/2" H x 1/2" D; Silver Plated finish with natural toning process
- Heavy-duty corrosion-resistant cast brass housing and die-cast brass faceplate; frosted lens fitted to a stainless steel backplate
- Integrated removable 2.5W LED delivering 250 Lumens at 3000K; CRI Ra > 80; rated 30,000 hours
- Operates on 12V AC with 8–15V operating range; requires remote 12V magnetic transformer; not for electronic transformers
- Prewired with 25 ft 18-2 SPT2-W direct-burial cord; includes two screws and two anchor bolts for surface mounting; 20W halogen equivalent
- Limited lifetime warranty on fixture housing; 10-year warranty on removable LED
Overview
This compact 5-1/2" W x 2-1/2" H x 1/2" D Silver Plated brass step light mounts directly to walls and steps, featuring an integrated removable 2.5W LED that delivers 250 Lumens at 3000K with a CRI Ra > 80, is dimmable, and is rated for 30,000 hours. Construction combines cast brass with a die-cast faceplate and frosted lens on a stainless steel backplate, and the fixture ships prewired with a 25 ft cord requiring a remote 12V magnetic transformer. Ideal for illuminating stair risers, deck edges, and entryway steps in residential and commercial settings.
Features
-
- Small lensed backless box step light, 5-1/2" W x 2-1/2" H x 1/2" D; Silver Plated finish with natural toning process
- Heavy-duty corrosion-resistant cast brass housing and die-cast brass faceplate; frosted lens fitted to a stainless steel backplate
- Integrated removable 2.5W LED delivering 250 Lumens at 3000K; CRI Ra > 80; rated 30,000 hours
- Operates on 12V AC with 8–15V operating range; requires remote 12V magnetic transformer; not for electronic transformers
- Prewired with 25 ft 18-2 SPT2-W direct-burial cord; includes two screws and two anchor bolts for surface mounting; 20W halogen equivalent
- Limited lifetime warranty on fixture housing; 10-year warranty on removable LED
Specifications
| Brass Lensed Step Light, Surface-Mount, 5.5 Inch, Silver Plated, 250 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 250LM |
| Efficacy | 100LM/W |
| Wattage | 2.5W |
| Wattage Equivalency | 20W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 3000K |
| CRI | 80+ |
| LED Heads | 1 |
| Included Components | Integrated LED, Frosted lens, Stainless steel backplate |
| Power Type | Low Voltage 12V |
| Mount Type | Surface |
| Dimensions | 5-1/2" W x 2-1/2" H x 1/2" D |
| Finish | Silver Plated |
| Shade Material | Frosted lens, stainless steel backplate |
| Material | Cast brass housing; die-cast brass faceplate; stainless steel backplate; frosted lens |
| Lifetime | 30,000 Hours |
| Warranty | Limited lifetime fixture warranty; 10-year LED module warranty |
