Brass Louvered Glass Lens Round Step Light, In-Ground, 5 Inch, Gun Metal, 15° Narrow Beam Angle, 350 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

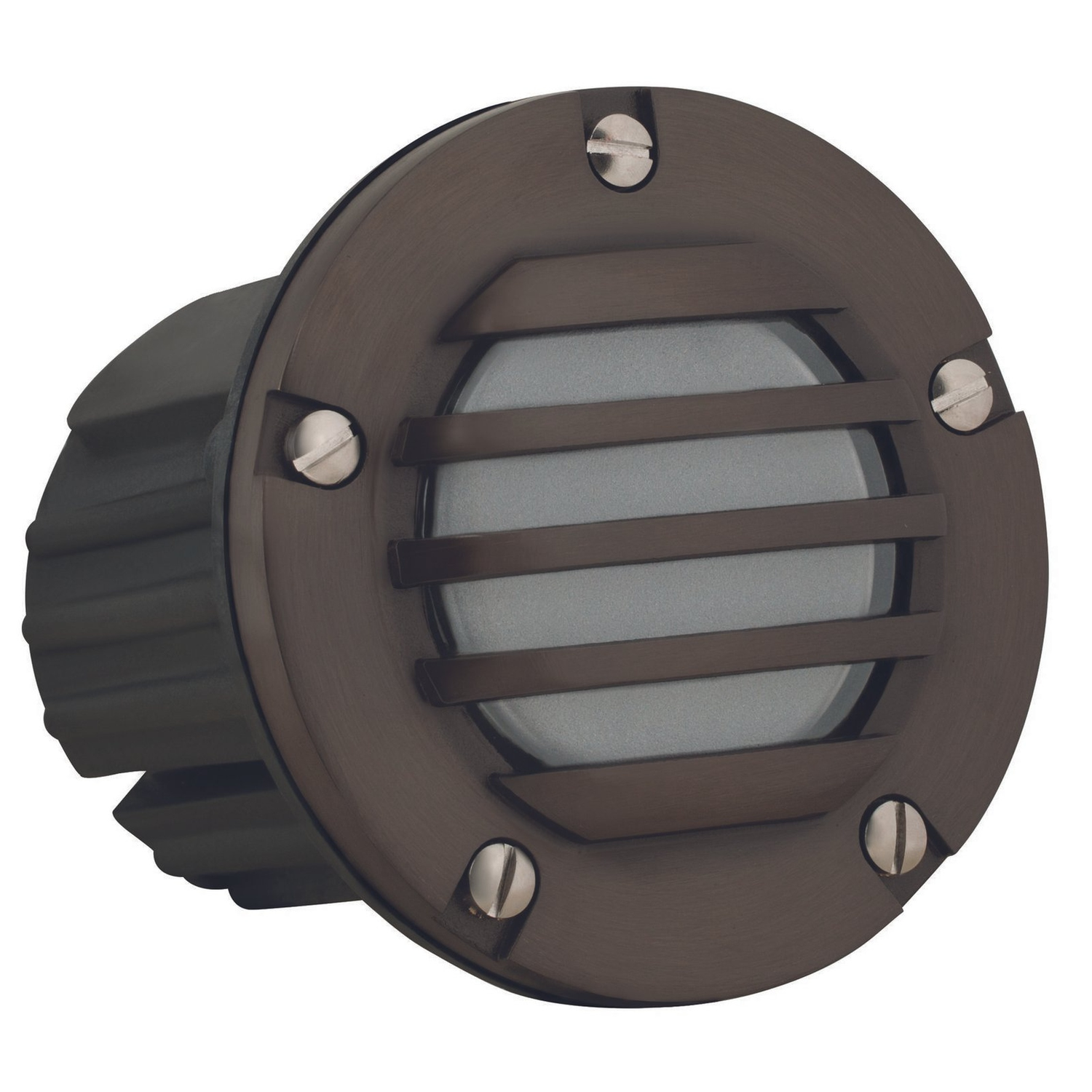

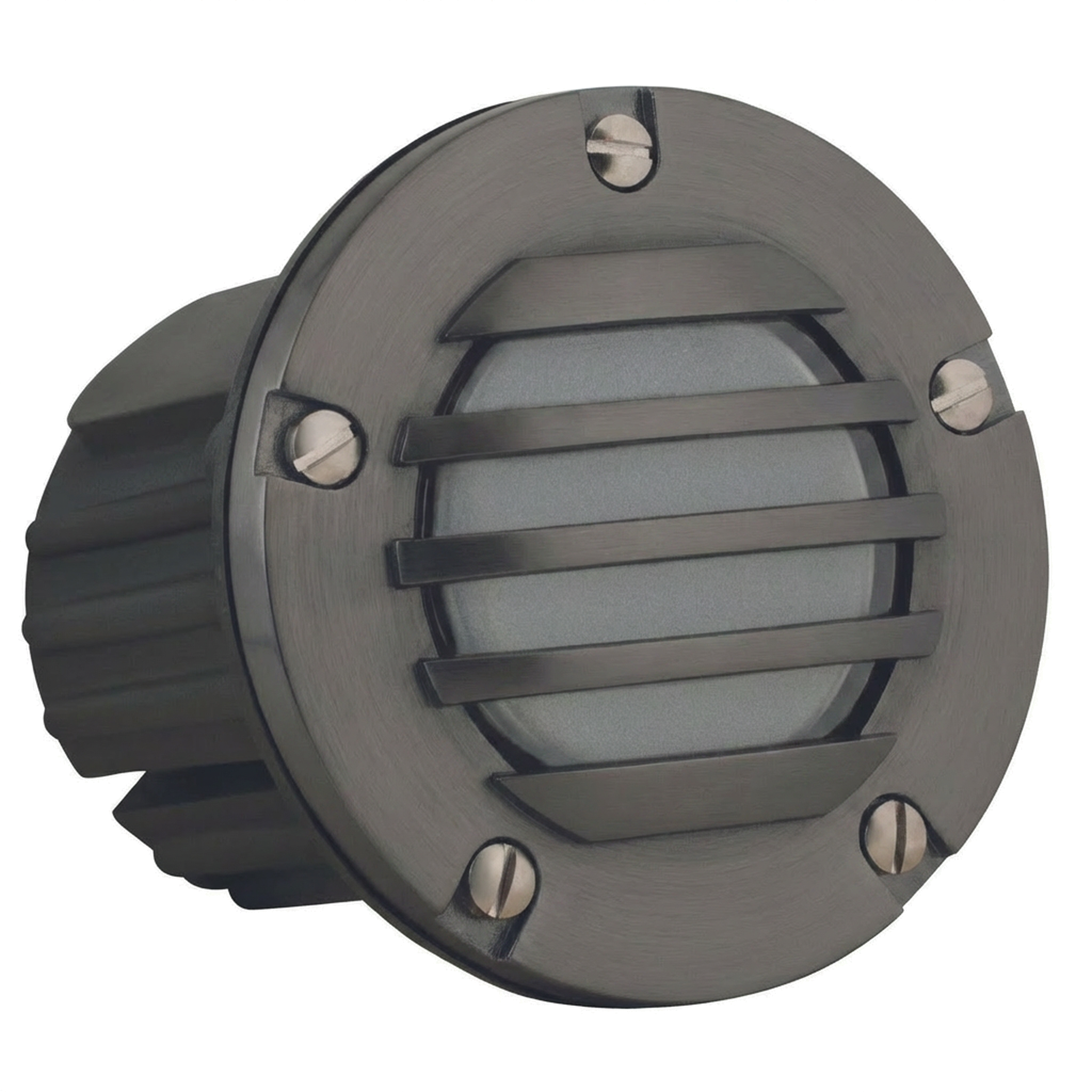

This Gun Metal brass louvered round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 5W MR16 LED lamp delivers 350 lumens at 2700K. This exact sold configuration has a 15° Narrow Beam Angle.
Features
-
- Architectural-grade step light with cast brass faceplate and injection-molded composite housing for high UV stability
- Gun Metal (GM) finish with natural toning process; finish variation expected
- Frosted heat-resistant flat glass lens with silicone O-ring seals for weather-tight protection
- Top-grade adjustable ceramic bi-pin MR16 socket with retention clip; socket tilt ±25°
- Prewired with 3 ft 18-2 SJT-W direct-burial cord; compatible with remote 12V transformer
- LED operating voltage range 9–17V; dimmable control
- Includes MR16 LED lamp: 5W, ≈350 Lumens, 2700K, 15° spot beam, 50,000 hr, 40W halogen equivalent
- Surface-mount faceplate supplied for recessed wall installation
- Optional concrete pour kit CX-237 for encasement
- Warranty: limited lifetime on brass faceplate, 10 years on housing, 5-year limited on LED lamps
This Gun Metal brass louvered round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 5W MR16 LED lamp delivers 350 lumens at 2700K. This exact sold configuration has a 15° Narrow Beam Angle.
Features
-
- Architectural-grade step light with cast brass faceplate and injection-molded composite housing for high UV stability
- Gun Metal (GM) finish with natural toning process; finish variation expected
- Frosted heat-resistant flat glass lens with silicone O-ring seals for weather-tight protection
- Top-grade adjustable ceramic bi-pin MR16 socket with retention clip; socket tilt ±25°
- Prewired with 3 ft 18-2 SJT-W direct-burial cord; compatible with remote 12V transformer
- LED operating voltage range 9–17V; dimmable control
- Includes MR16 LED lamp: 5W, ≈350 Lumens, 2700K, 15° spot beam, 50,000 hr, 40W halogen equivalent
- Surface-mount faceplate supplied for recessed wall installation
- Optional concrete pour kit CX-237 for encasement
- Warranty: limited lifetime on brass faceplate, 10 years on housing, 5-year limited on LED lamps
Overview
This Gun Metal brass louvered round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 5W MR16 LED lamp delivers 350 lumens at 2700K. This exact sold configuration has a 15° Narrow Beam Angle.
Features
-
- Architectural-grade step light with cast brass faceplate and injection-molded composite housing for high UV stability
- Gun Metal (GM) finish with natural toning process; finish variation expected
- Frosted heat-resistant flat glass lens with silicone O-ring seals for weather-tight protection
- Top-grade adjustable ceramic bi-pin MR16 socket with retention clip; socket tilt ±25°
- Prewired with 3 ft 18-2 SJT-W direct-burial cord; compatible with remote 12V transformer
- LED operating voltage range 9–17V; dimmable control
- Includes MR16 LED lamp: 5W, ≈350 Lumens, 2700K, 15° spot beam, 50,000 hr, 40W halogen equivalent
- Surface-mount faceplate supplied for recessed wall installation
- Optional concrete pour kit CX-237 for encasement
- Warranty: limited lifetime on brass faceplate, 10 years on housing, 5-year limited on LED lamps
Specifications
| Brass Louvered Glass Lens Round Step Light, In-Ground, 5 Inch, Gun Metal, 15° Narrow Beam Angle, 350 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 350LM |
| Efficacy | 70LM/W |
| Wattage | 5W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 15° Narrow Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 4-5/8" L |
| Finish | Gun Metal |
| Material | Cast brass faceplate; injection-molded composite housing |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime warranty on brass faceplate; 10-year limited warranty on composite housing; five (5) year limited warranty on LED lamp. |
