Brass Louvered Glass Lens Round Step Light, In-Ground, 5 Inch, Gun Metal, 15° Narrow Beam Angle, 270 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

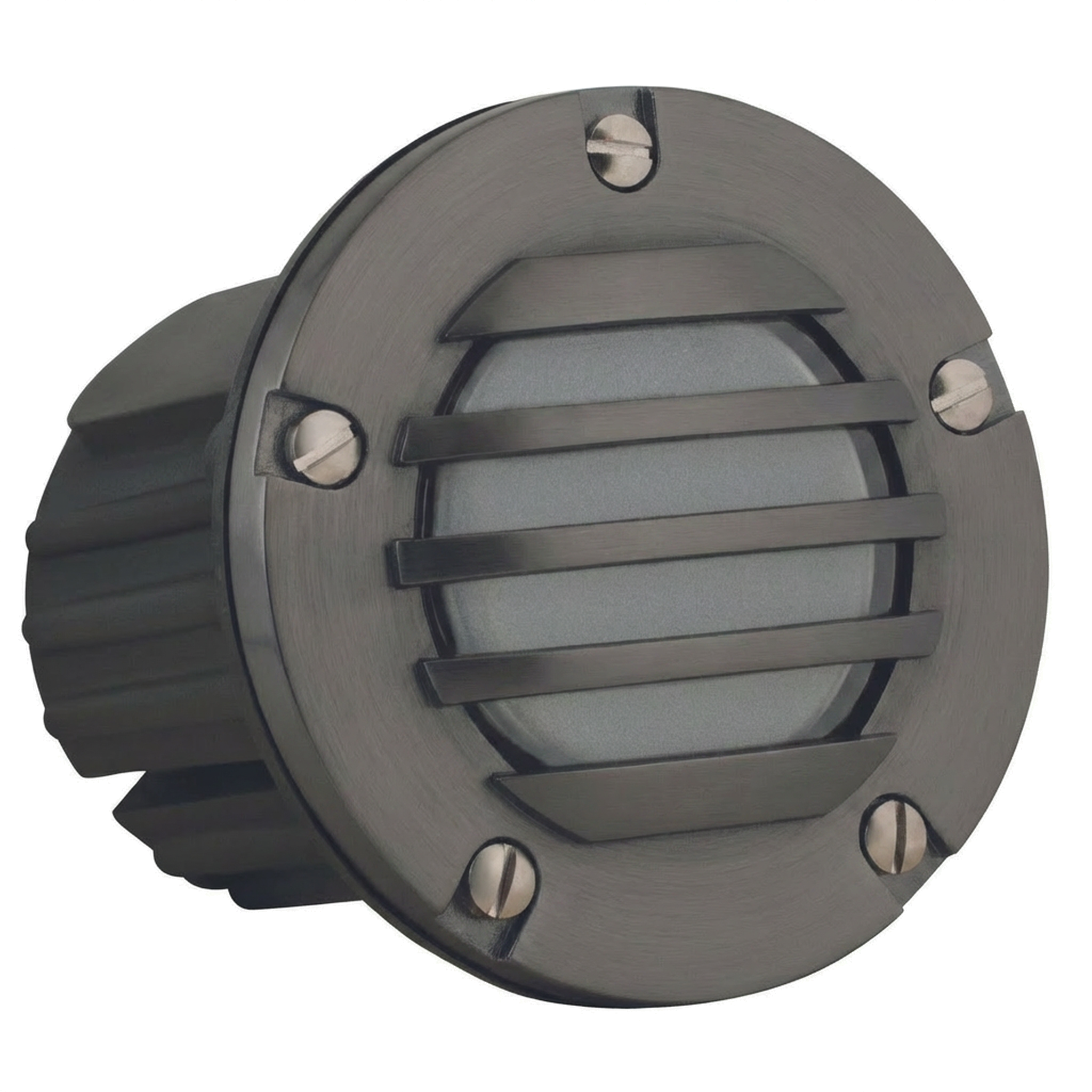

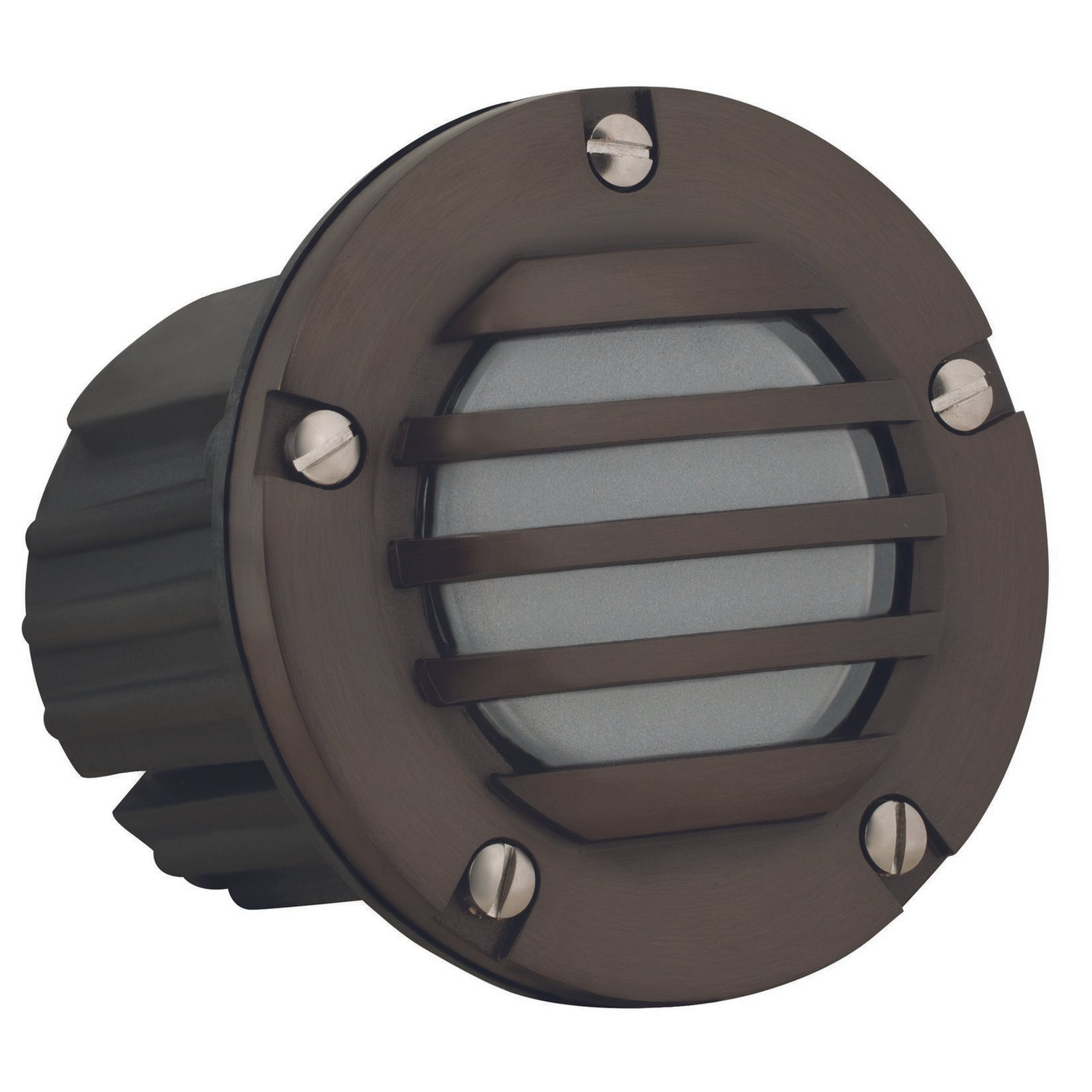

This Gun Metal brass louvered round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 3W MR16 LED lamp delivers 270 lumens at 2700K. This exact sold configuration has a 15° Narrow Beam Angle.
Features
-
- Architectural grade step light with cast brass faceplate and injection-molded composite housing for high UV stability
- Frosted heat-resistant flat glass lens with silicone O-ring gasket for weather-tight protection
- Prewired with 3 ft 18-2 SJT-W direct-burial cord; requires remote 12V transformer
- LED operating voltage 9–17V
- Top-grade adjustable ceramic bi-pin MR16 socket with retention clip; socket tilt ±25°
- Bundled MR16 LED lamp: 3.5W, ~270 Lumens, 2700K, CRI 80, dimmable, 15° narrow spot beam, 50,000-hour life, 25W halogen equivalency, 77.1 Lumens/W efficacy
- Dimensions: 4-7/8 Inch Dia x 4-5/8 Inch length
- Surface mount faceplate included
This Gun Metal brass louvered round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 3W MR16 LED lamp delivers 270 lumens at 2700K. This exact sold configuration has a 15° Narrow Beam Angle.
Features
-
- Architectural grade step light with cast brass faceplate and injection-molded composite housing for high UV stability
- Frosted heat-resistant flat glass lens with silicone O-ring gasket for weather-tight protection
- Prewired with 3 ft 18-2 SJT-W direct-burial cord; requires remote 12V transformer
- LED operating voltage 9–17V
- Top-grade adjustable ceramic bi-pin MR16 socket with retention clip; socket tilt ±25°
- Bundled MR16 LED lamp: 3.5W, ~270 Lumens, 2700K, CRI 80, dimmable, 15° narrow spot beam, 50,000-hour life, 25W halogen equivalency, 77.1 Lumens/W efficacy
- Dimensions: 4-7/8 Inch Dia x 4-5/8 Inch length
- Surface mount faceplate included
Overview
This Gun Metal brass louvered round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 3W MR16 LED lamp delivers 270 lumens at 2700K. This exact sold configuration has a 15° Narrow Beam Angle.
Features
-
- Architectural grade step light with cast brass faceplate and injection-molded composite housing for high UV stability
- Frosted heat-resistant flat glass lens with silicone O-ring gasket for weather-tight protection
- Prewired with 3 ft 18-2 SJT-W direct-burial cord; requires remote 12V transformer
- LED operating voltage 9–17V
- Top-grade adjustable ceramic bi-pin MR16 socket with retention clip; socket tilt ±25°
- Bundled MR16 LED lamp: 3.5W, ~270 Lumens, 2700K, CRI 80, dimmable, 15° narrow spot beam, 50,000-hour life, 25W halogen equivalency, 77.1 Lumens/W efficacy
- Dimensions: 4-7/8 Inch Dia x 4-5/8 Inch length
- Surface mount faceplate included
Specifications
| Brass Louvered Glass Lens Round Step Light, In-Ground, 5 Inch, Gun Metal, 15° Narrow Beam Angle, 270 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 270LM |
| Efficacy | 77.1LM/W |
| Wattage | 3.5W |
| Wattage Equivalency | 25W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 15° Narrow Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Included Components | COB LED |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 4-5/8" L |
| Finish | Gun Metal |
| Material | Cast brass faceplate; injection-molded composite housing |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime warranty on brass faceplate; 10 years on housing; included LED lamps 5-year limited. |
