Brass Glass Lens Step Light, In-Ground, 5 Inch, Gun Metal, 45° Wide Beam Angle, 350 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

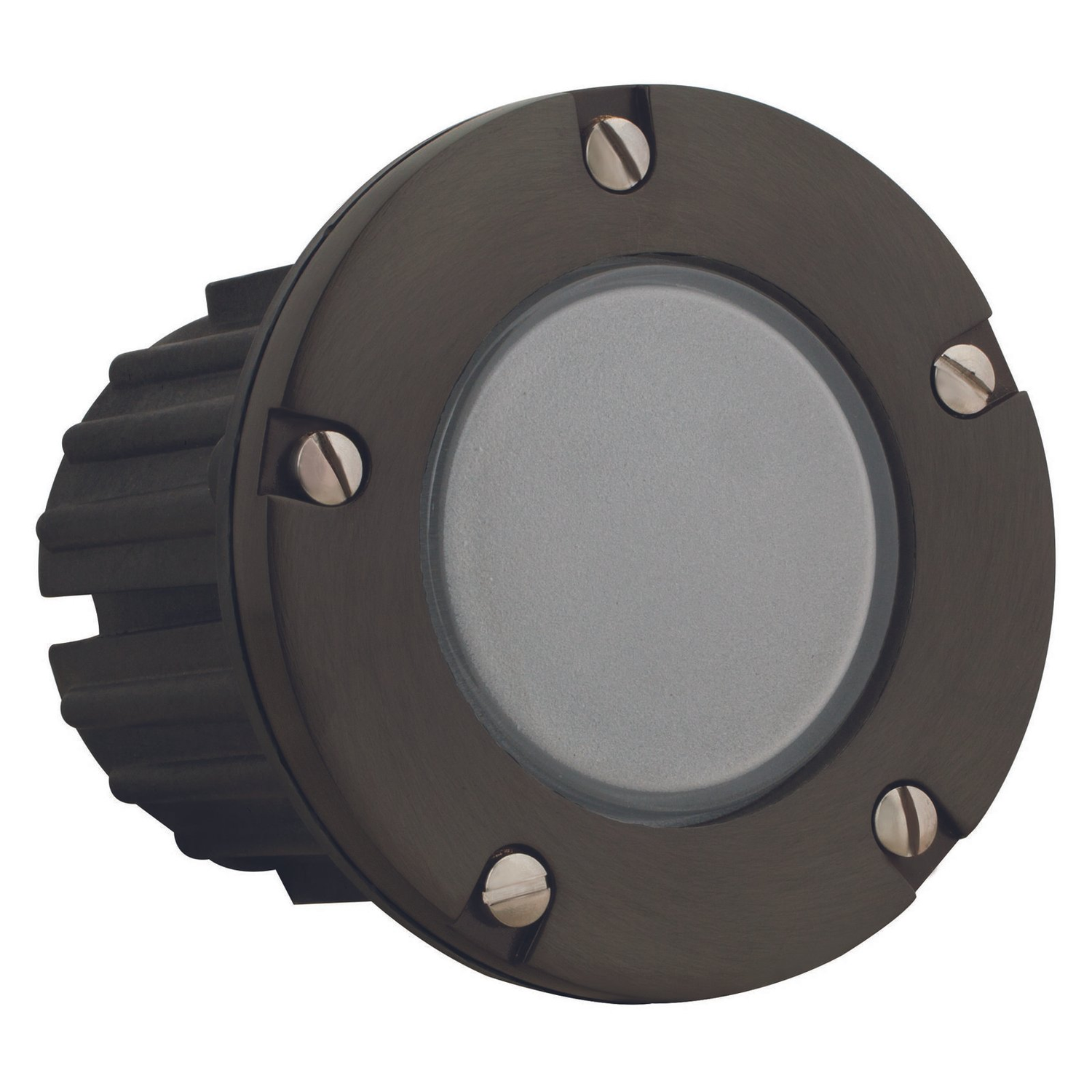

This cast brass faceplate and composite housing lensed step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 350 lumens with a 45° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Die-cast brass faceplate with injection composite fiberglass housing for high UV stability and architectural-grade construction
- Gun Metal (GM) finish with natural toning process; Antique Bronze also available
- Frosted, heat-resistant flat glass lens with silicone O-ring seal for a weather-resistant face
- Top-grade adjustable ceramic bi-pin MR16 socket with retention clip and Teflon-jacketed wire lead
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Surface-mount installation; concrete pour kit CX-237 recommended for concrete applications
- 12V MR16 platform, 50W max; requires remote 12V transformer
- Bundled MR16 LED lamp: 5W, 350 Lumens, 2700K, CRI 80, 45° flood beam (FL), dimmable, rated life 50,000 hours; operates 9–17V
- Dimensions: 4-7/8 Inch Dia x 4-5/8 Inch length
- ETL listed
- Operating range: -22°F to 122°F
This cast brass faceplate and composite housing lensed step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 350 lumens with a 45° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Die-cast brass faceplate with injection composite fiberglass housing for high UV stability and architectural-grade construction
- Gun Metal (GM) finish with natural toning process; Antique Bronze also available
- Frosted, heat-resistant flat glass lens with silicone O-ring seal for a weather-resistant face
- Top-grade adjustable ceramic bi-pin MR16 socket with retention clip and Teflon-jacketed wire lead
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Surface-mount installation; concrete pour kit CX-237 recommended for concrete applications
- 12V MR16 platform, 50W max; requires remote 12V transformer
- Bundled MR16 LED lamp: 5W, 350 Lumens, 2700K, CRI 80, 45° flood beam (FL), dimmable, rated life 50,000 hours; operates 9–17V
- Dimensions: 4-7/8 Inch Dia x 4-5/8 Inch length
- ETL listed
- Operating range: -22°F to 122°F
Overview
This cast brass faceplate and composite housing lensed step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 350 lumens with a 45° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Die-cast brass faceplate with injection composite fiberglass housing for high UV stability and architectural-grade construction
- Gun Metal (GM) finish with natural toning process; Antique Bronze also available
- Frosted, heat-resistant flat glass lens with silicone O-ring seal for a weather-resistant face
- Top-grade adjustable ceramic bi-pin MR16 socket with retention clip and Teflon-jacketed wire lead
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Surface-mount installation; concrete pour kit CX-237 recommended for concrete applications
- 12V MR16 platform, 50W max; requires remote 12V transformer
- Bundled MR16 LED lamp: 5W, 350 Lumens, 2700K, CRI 80, 45° flood beam (FL), dimmable, rated life 50,000 hours; operates 9–17V
- Dimensions: 4-7/8 Inch Dia x 4-5/8 Inch length
- ETL listed
- Operating range: -22°F to 122°F
Specifications
| Brass Glass Lens Step Light, In-Ground, 5 Inch, Gun Metal, 45° Wide Beam Angle, 350 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 350LM |
| Efficacy | 70LM/W |
| Wattage | 5W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 45° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 4-5/8" L |
| Finish | Gun Metal |
| Material | die-cast brass faceplate; injection composite fiberglass housing |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime warranty on brass faceplate; ten (10) years on housing against manufacturer's defects; included LED lamps carry a five (5) year limited warranty. |
