Brass Glass Lens Step Light, In-Ground, 5 Inch, Gun Metal, 38° Beam Angle, 450 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

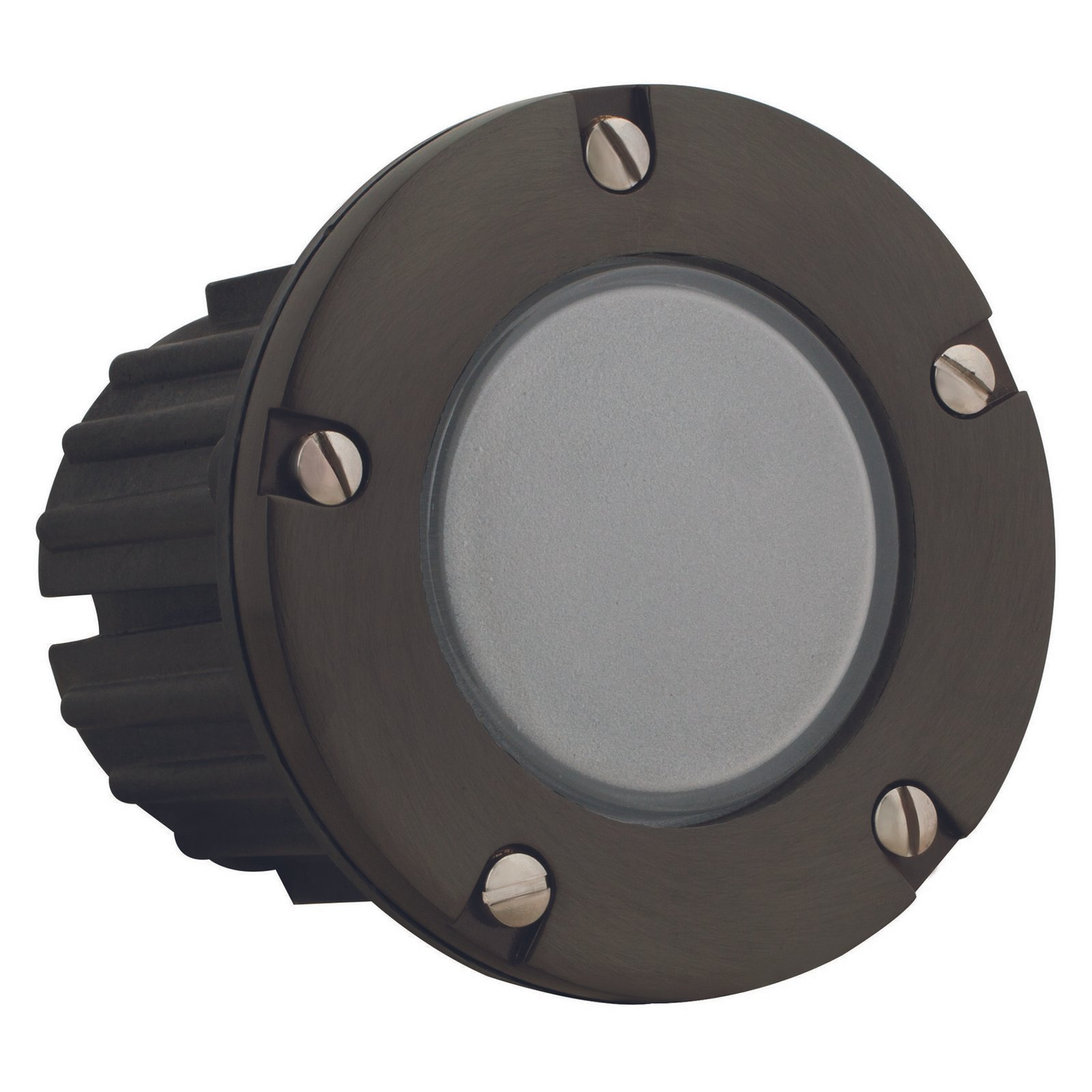

This cast brass faceplate and composite housing lensed step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 450 lumens with a 38° Beam Angle. A remote 12V transformer is required.
Features
-
- Architectural brass lensed step and brick light with die-cast brass faceplate and injection composite fiberglass housing
- Finish: Gun Metal with natural toning (Antique Bronze also available)
- Frosted heat-resistant flat glass lens sealed with a silicone O-ring
- Adjustable ceramic bi-pin MR16 socket with retention clip and Teflon-jacketed wire lead
- Includes 5W MR16 COB LED lamp: approx 450 Lumens, 2700K, CRI 80, 38° FL (flood) beam; operates 9–17V
- LED rated life: 50,000 hours
- 12V MR16 system, 50W max; remote 12V transformer required
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Dimensions: 4-7/8" Dia x 4-5/8" L
- 5-year lamp warranty; limited lifetime warranty on faceplate
This cast brass faceplate and composite housing lensed step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 450 lumens with a 38° Beam Angle. A remote 12V transformer is required.
Features
-
- Architectural brass lensed step and brick light with die-cast brass faceplate and injection composite fiberglass housing
- Finish: Gun Metal with natural toning (Antique Bronze also available)
- Frosted heat-resistant flat glass lens sealed with a silicone O-ring
- Adjustable ceramic bi-pin MR16 socket with retention clip and Teflon-jacketed wire lead
- Includes 5W MR16 COB LED lamp: approx 450 Lumens, 2700K, CRI 80, 38° FL (flood) beam; operates 9–17V
- LED rated life: 50,000 hours
- 12V MR16 system, 50W max; remote 12V transformer required
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Dimensions: 4-7/8" Dia x 4-5/8" L
- 5-year lamp warranty; limited lifetime warranty on faceplate
Overview
This cast brass faceplate and composite housing lensed step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 450 lumens with a 38° Beam Angle. A remote 12V transformer is required.
Features
-
- Architectural brass lensed step and brick light with die-cast brass faceplate and injection composite fiberglass housing
- Finish: Gun Metal with natural toning (Antique Bronze also available)
- Frosted heat-resistant flat glass lens sealed with a silicone O-ring
- Adjustable ceramic bi-pin MR16 socket with retention clip and Teflon-jacketed wire lead
- Includes 5W MR16 COB LED lamp: approx 450 Lumens, 2700K, CRI 80, 38° FL (flood) beam; operates 9–17V
- LED rated life: 50,000 hours
- 12V MR16 system, 50W max; remote 12V transformer required
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Dimensions: 4-7/8" Dia x 4-5/8" L
- 5-year lamp warranty; limited lifetime warranty on faceplate
Specifications
| Brass Glass Lens Step Light, In-Ground, 5 Inch, Gun Metal, 38° Beam Angle, 450 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 450LM |
| Efficacy | 94LM/W |
| Wattage | 5W |
| Wattage Equivalency | 50W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 38° Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 4-5/8" L |
| Finish | Gun Metal |
| Material | die-cast brass faceplate, injection composite fiberglass housing |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime on brass faceplate; ten (10) years on housing against manufacturer's defects; included LED lamps carry a five (5) year limited warranty. |
