Half-Moon Glass Lens Disc Step Light, In-Ground, 5 Inch, Bronze, 45° Wide Beam Angle, 270 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

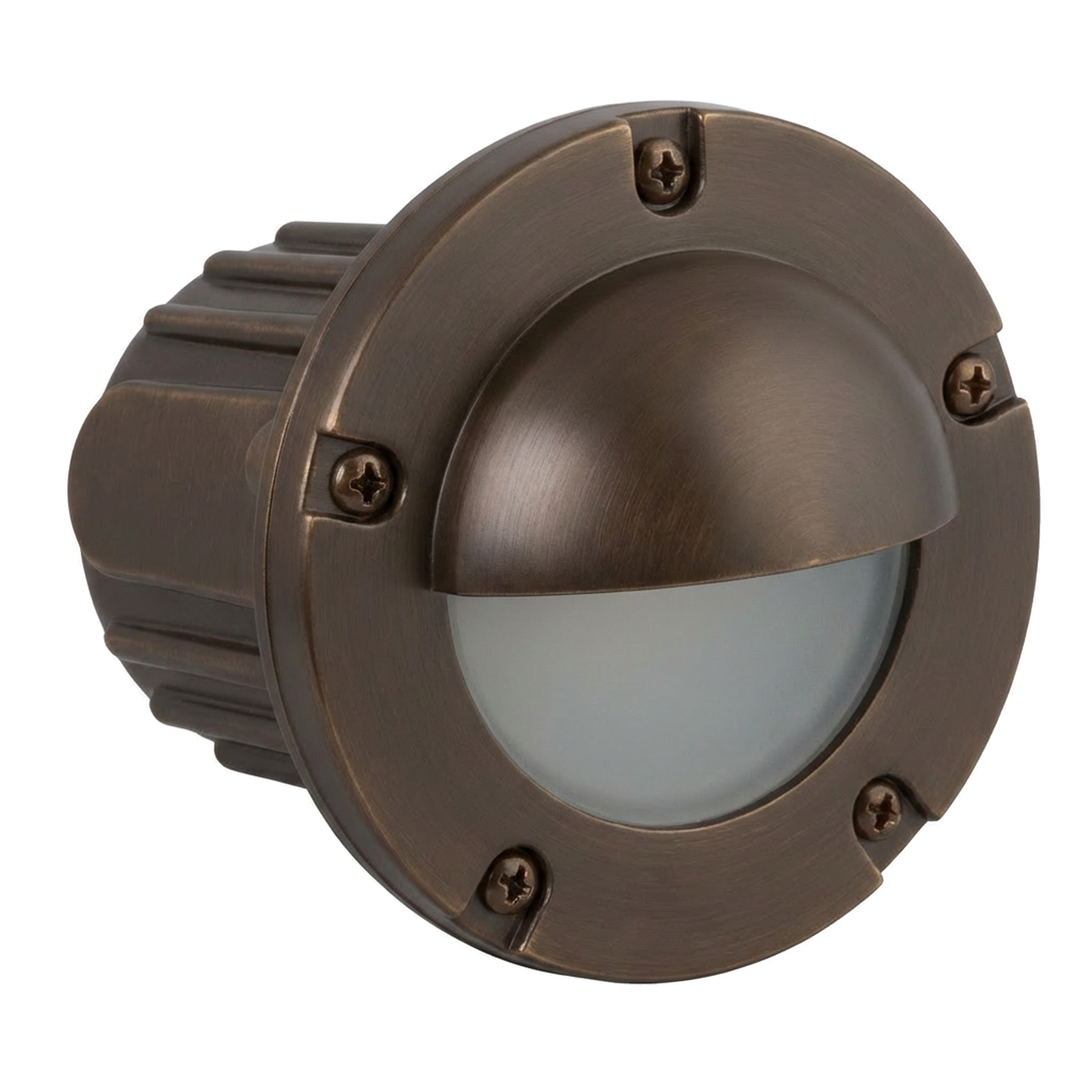

This half-moon glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 270 lumens at 2700K with a 45° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Composite half-moon step/brick light for 12V systems
- Includes MR16 LED lamp: 3.5W, 270 Lumens, 2700K, 45° beam angle; dimmable; 50,000-hour rated life; CRI 80; LED operating range 9–17V
- Dimensions: 4-7/8" x 4-5/8" x 3-1/2"; additional noted dimensions 1-3/8" and 3/8"
- Injection-molded composite housing with high UV stability; frosted heat-resistant glass lens
- Silicone O-ring gasket for a weather-tight faceplate seal
- Prewired with 3 ft 18-2 SJT-W direct-burial cord for in-ground or concrete-encasement installation
- Adjustable ceramic bi-pin socket tilts ±25° and accepts MR16 lamps up to 50W max
- ETL listed
- Warranty: 10-year fixture warranty
- Mounting: in-ground direct burial or concrete encasement
This half-moon glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 270 lumens at 2700K with a 45° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Composite half-moon step/brick light for 12V systems
- Includes MR16 LED lamp: 3.5W, 270 Lumens, 2700K, 45° beam angle; dimmable; 50,000-hour rated life; CRI 80; LED operating range 9–17V
- Dimensions: 4-7/8" x 4-5/8" x 3-1/2"; additional noted dimensions 1-3/8" and 3/8"
- Injection-molded composite housing with high UV stability; frosted heat-resistant glass lens
- Silicone O-ring gasket for a weather-tight faceplate seal
- Prewired with 3 ft 18-2 SJT-W direct-burial cord for in-ground or concrete-encasement installation
- Adjustable ceramic bi-pin socket tilts ±25° and accepts MR16 lamps up to 50W max
- ETL listed
- Warranty: 10-year fixture warranty
- Mounting: in-ground direct burial or concrete encasement
Overview
This half-moon glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 270 lumens at 2700K with a 45° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Composite half-moon step/brick light for 12V systems
- Includes MR16 LED lamp: 3.5W, 270 Lumens, 2700K, 45° beam angle; dimmable; 50,000-hour rated life; CRI 80; LED operating range 9–17V
- Dimensions: 4-7/8" x 4-5/8" x 3-1/2"; additional noted dimensions 1-3/8" and 3/8"
- Injection-molded composite housing with high UV stability; frosted heat-resistant glass lens
- Silicone O-ring gasket for a weather-tight faceplate seal
- Prewired with 3 ft 18-2 SJT-W direct-burial cord for in-ground or concrete-encasement installation
- Adjustable ceramic bi-pin socket tilts ±25° and accepts MR16 lamps up to 50W max
- ETL listed
- Warranty: 10-year fixture warranty
- Mounting: in-ground direct burial or concrete encasement
Specifications
| Half-Moon Glass Lens Disc Step Light, In-Ground, 5 Inch, Bronze, 45° Wide Beam Angle, 270 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 270LM |
| Efficacy | 77.1LM/W |
| Wattage | 3.5W |
| Wattage Equivalency | 25W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 45° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Included Components | COB LED |
| Mount Type | Surface Mount |
| Dimensions | Faceplate 4-7/8" x 4-5/8" x 3-1/2"; Lens 1-3/8"; Faceplate 3/8" thick |
| Finish | Bronze |
| Material | Injection-molded composite |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Ten (10) year limited warranty on composite fixture housing; five (5) year limited warranty on LED module |
