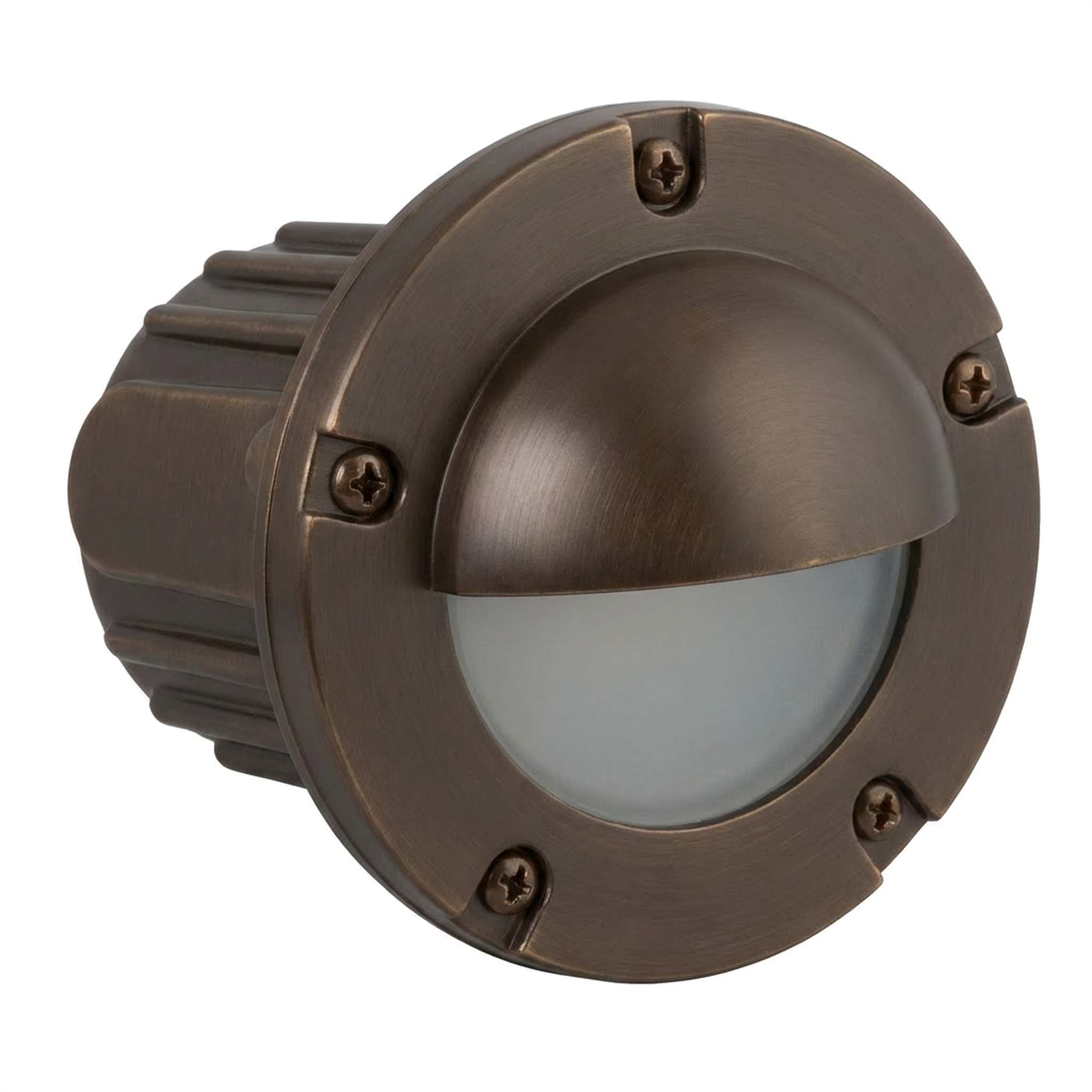

Half-Moon Glass Lens Disc Step Light, In-Ground, 5 Inch, Bronze, 60° Wide Beam Angle, 270 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This half-moon glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 270 lumens at 2700K with a 60° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Composite half-moon step/brick light for 12V landscape systems
- Includes MR16 LED lamp: 3.5W, 270 Lumens, 2700K, CRI 80, 60° wide-flood beam; operates 9–17V; 50,000-hour rated lamp life
- Injection-molded composite housing with high UV stability
- Frosted heat-resistant glass lens with silicone O-ring for weather-tight protection
- Adjustable ceramic bi-pin socket tilts ±25°
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Dimensions: 4-7/8" x 4-5/8" x 3-1/2"
- Requires remote 12V transformer
- Warranty: 10-year fixture warranty
- Mounting: in-ground direct burial or concrete encasement
This half-moon glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 270 lumens at 2700K with a 60° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Composite half-moon step/brick light for 12V landscape systems
- Includes MR16 LED lamp: 3.5W, 270 Lumens, 2700K, CRI 80, 60° wide-flood beam; operates 9–17V; 50,000-hour rated lamp life
- Injection-molded composite housing with high UV stability
- Frosted heat-resistant glass lens with silicone O-ring for weather-tight protection
- Adjustable ceramic bi-pin socket tilts ±25°
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Dimensions: 4-7/8" x 4-5/8" x 3-1/2"
- Requires remote 12V transformer
- Warranty: 10-year fixture warranty
- Mounting: in-ground direct burial or concrete encasement
Overview
This half-moon glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 270 lumens at 2700K with a 60° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Composite half-moon step/brick light for 12V landscape systems
- Includes MR16 LED lamp: 3.5W, 270 Lumens, 2700K, CRI 80, 60° wide-flood beam; operates 9–17V; 50,000-hour rated lamp life
- Injection-molded composite housing with high UV stability
- Frosted heat-resistant glass lens with silicone O-ring for weather-tight protection
- Adjustable ceramic bi-pin socket tilts ±25°
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Dimensions: 4-7/8" x 4-5/8" x 3-1/2"
- Requires remote 12V transformer
- Warranty: 10-year fixture warranty
- Mounting: in-ground direct burial or concrete encasement
Specifications
| Half-Moon Glass Lens Disc Step Light, In-Ground, 5 Inch, Bronze, 60° Wide Beam Angle, 270 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 270LM |
| Efficacy | 77.1LM/W |
| Wattage | 3.5W |
| Wattage Equivalency | 25W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 60° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Included Components | COB LED |
| Mount Type | Surface Mount |
| Dimensions | Faceplate 4-7/8" x 4-5/8" x 3-1/2"; Lens 1-3/8"; Faceplate 3/8" thick |
| Finish | Bronze |
| Material | Injection-molded composite |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited ten (10) years on fixture against manufacturer's defects; included LED lamps carry five-year limited warranty. |
