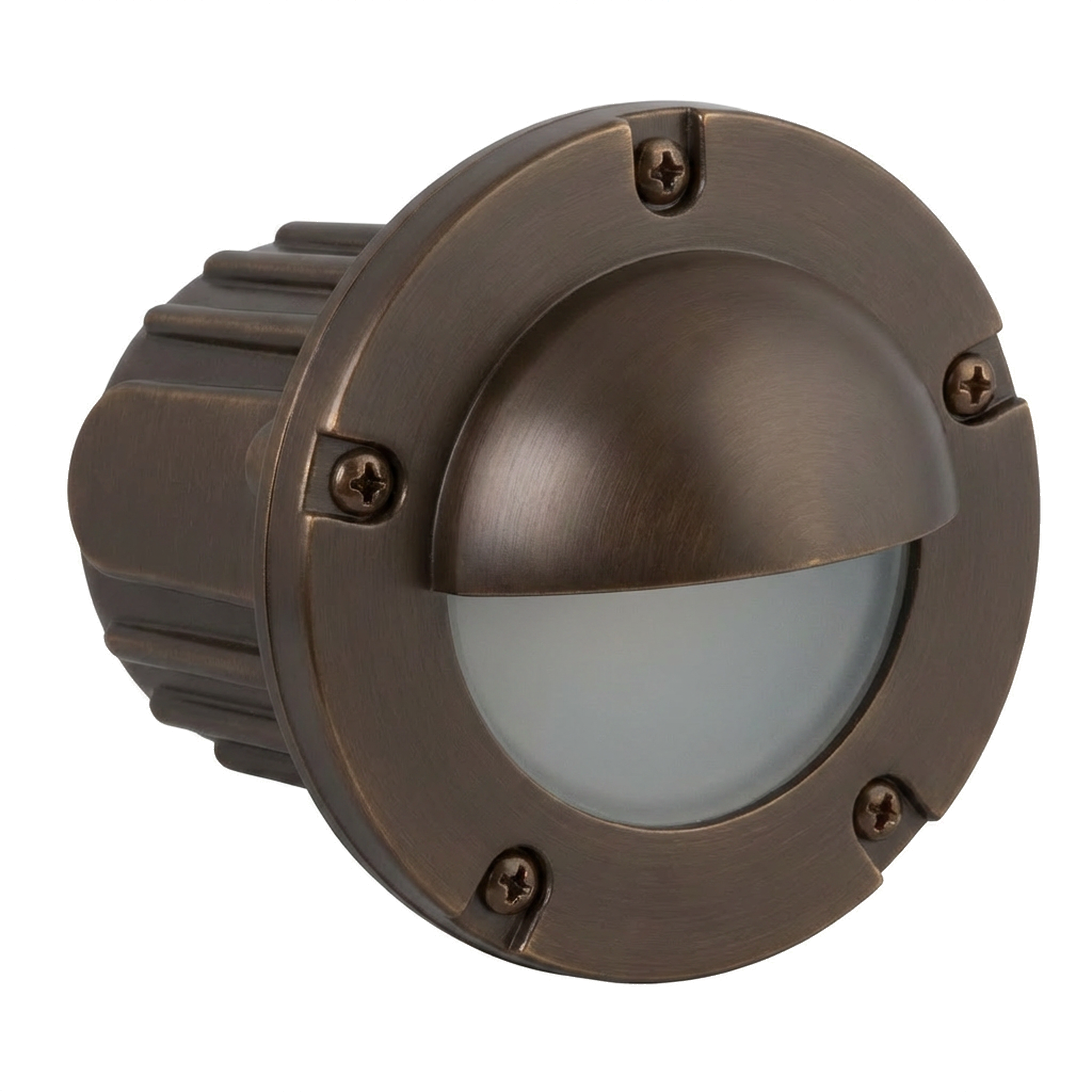

Half-Moon Glass Lens Disc Step Light, In-Ground, 5 Inch, Bronze, 15° Narrow Beam Angle, 350 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This Bronze half-moon glass lens disc step light is designed for in-ground installation in a low-voltage landscape system. Its exact customer-facing face measures 4-7/8 Inch, and the included LED lamp delivers 350 lumens with a 15° narrow beam angle.
Features
-
- Composite half-moon step/brick light for 12V systems
- Lamp: MR16 LED, 5W COB, 15° spot beam (SP), approx 350 Lumens, 2700K; halogen equivalency up to 50W; 50,000-hour rated life; operates on 9–17V
- Injection-molded composite housing with high UV stability; frosted heat-resistant glass lens
- Faceplate sealed with silicone O-ring gasket for weather-tight protection; socket tilts ±25°
- Top-grade adjustable ceramic bi-pin socket with retention clip; prewired with 3 ft 18-2 SJT-W direct-burial cord
- Mounting: in-ground direct burial or concrete encasement
- Requires remote 12V transformer
- Warranty: 10-year fixture warranty
This Bronze half-moon glass lens disc step light is designed for in-ground installation in a low-voltage landscape system. Its exact customer-facing face measures 4-7/8 Inch, and the included LED lamp delivers 350 lumens with a 15° narrow beam angle.
Features
-
- Composite half-moon step/brick light for 12V systems
- Lamp: MR16 LED, 5W COB, 15° spot beam (SP), approx 350 Lumens, 2700K; halogen equivalency up to 50W; 50,000-hour rated life; operates on 9–17V
- Injection-molded composite housing with high UV stability; frosted heat-resistant glass lens
- Faceplate sealed with silicone O-ring gasket for weather-tight protection; socket tilts ±25°
- Top-grade adjustable ceramic bi-pin socket with retention clip; prewired with 3 ft 18-2 SJT-W direct-burial cord
- Mounting: in-ground direct burial or concrete encasement
- Requires remote 12V transformer
- Warranty: 10-year fixture warranty
Overview
This Bronze half-moon glass lens disc step light is designed for in-ground installation in a low-voltage landscape system. Its exact customer-facing face measures 4-7/8 Inch, and the included LED lamp delivers 350 lumens with a 15° narrow beam angle.
Features
-
- Composite half-moon step/brick light for 12V systems
- Lamp: MR16 LED, 5W COB, 15° spot beam (SP), approx 350 Lumens, 2700K; halogen equivalency up to 50W; 50,000-hour rated life; operates on 9–17V
- Injection-molded composite housing with high UV stability; frosted heat-resistant glass lens
- Faceplate sealed with silicone O-ring gasket for weather-tight protection; socket tilts ±25°
- Top-grade adjustable ceramic bi-pin socket with retention clip; prewired with 3 ft 18-2 SJT-W direct-burial cord
- Mounting: in-ground direct burial or concrete encasement
- Requires remote 12V transformer
- Warranty: 10-year fixture warranty
Specifications
| Half-Moon Glass Lens Disc Step Light, In-Ground, 5 Inch, Bronze, 15° Narrow Beam Angle, 350 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 350LM |
| Efficacy | 70LM/W |
| Wattage | 5W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 15° Narrow Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | Faceplate 4-7/8" x 4-5/8" x 3-1/2"; Lens 1-3/8"; Faceplate 3/8" thick |
| Finish | Bronze |
| Material | Injection-molded composite |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited ten (10) years on fixture against manufacturer's defects; included LED lamps carry five-year limited warranty. |
