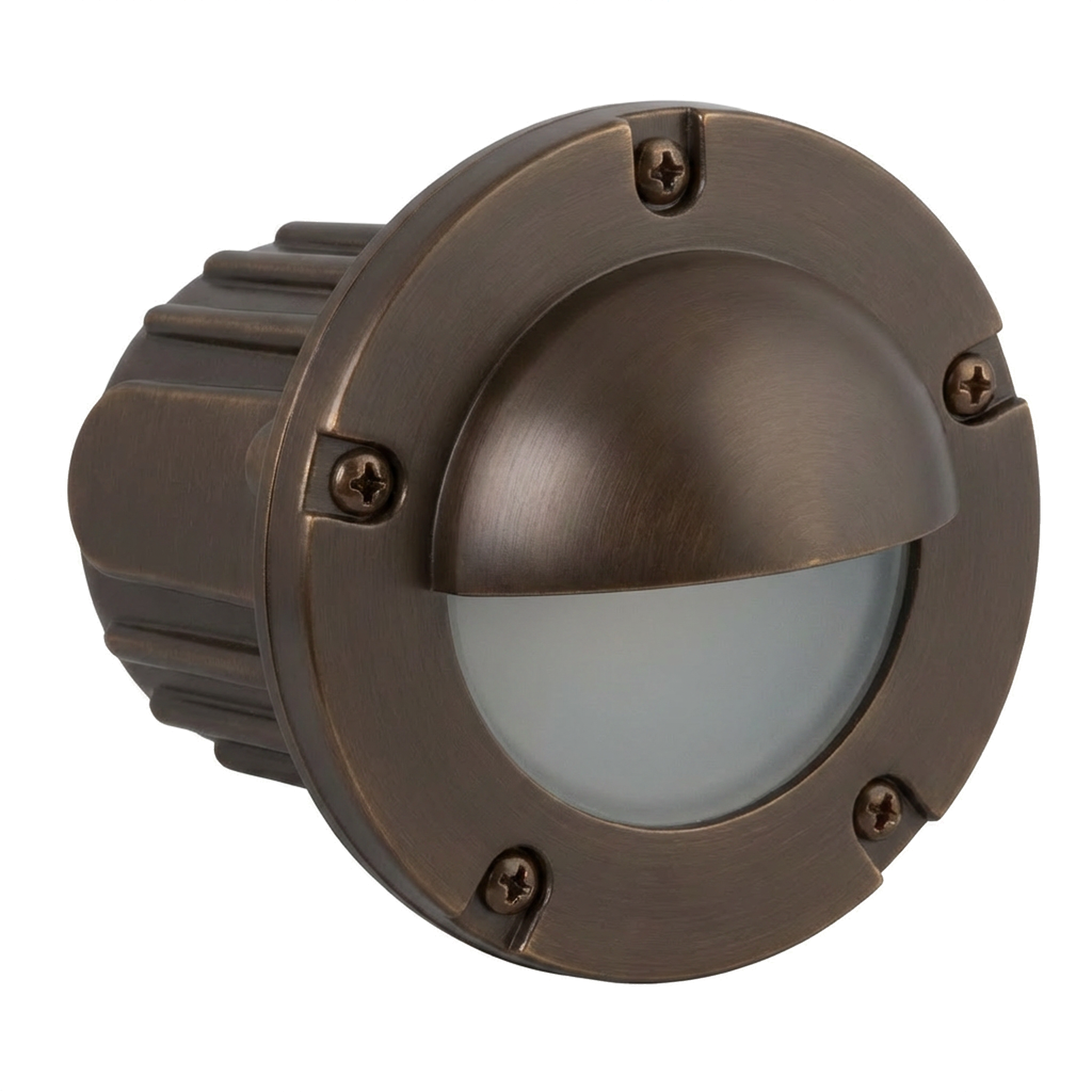

Half-Moon Glass Lens Disc Step Light, In-Ground, 5 Inch, Bronze, 60° Wide Beam Angle, 350 Lumens

$97.99

Half-Moon Glass Lens Disc Step Light, In-Ground, 5 Inch, Bronze, 60° Wide Beam Angle, 350 Lumens

SKU:

$97.99

Lumens350LM

Wattage5W

VoltageLow Voltage

DimmingDimmable

WarrantyTen (10) year limited warranty on injection-molded composite housing; Five (5) years limited warranty on LED module

Automatic volume discounts

Volume discount savings by cart subtotal
SPEND	SAVE
$500 - $999	5%
$1,000 - $1,999	11%
$2,000 - $2,999	12%
$3,000 - $3,999	13%
$4,000 - $4,999	14%
$5,000 - $5,999	15%
$6,000 - $6,999	16%
$7,000 - $7,999	17%
$8,000 - $8,999	18%
$9,000 - $9,999	19%
$10,000 - $19,999	20%
$20,000 - $49,999	25%
Over $50,000	30%

*Discounts apply to all products; rates may vary by product.

Live Chat

Free Shipping on orders $100+
Ships within 1 business day

Overview

This half-moon glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 350 lumens at 2700K with a 60° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.

Features

- Composite half-moon step light for 12V systems
- Includes MR16 LED lamp: 5W, 350 Lumens typical output, 60° wide beam angle, CRI 80, rated lamp life 50,000 hours
- Electrical: LED operating range 9–17V; requires remote 12V transformer (not included)
- Injection-molded composite housing with high UV stability
- Silicone O-ring faceplate gasket for a weather-tight seal
- Frosted heat-resistant glass lens
- Adjustable ceramic bi-pin socket tilts ±25°
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Suitable for in-ground direct burial or concrete encasement
- Dimensions: 4-7/8" x 4-5/8" x 3-1/2" (additional dimensions noted: 1-3/8"; 3/8")
- Warranty: 10-year fixture warranty
- Mounting: in-ground direct burial or concrete encasement

Specifications

Specifications
Brand	NSL
Lumens	350 LM
Efficacy	70 LM/W
Wattage	5 W
Voltage	Low Voltage
Operating Temperature	-22°F to 122°F
Dimmable	Dimmable
Color Temperature	2700K
CRI	80 +
Beam Angle	60° Wide Beam Angle °
LED Heads	1
Bulb Base	MR16
Mount Type	Surface Mount
Dimensions	Faceplate 4-7/8" x 4-5/8" x 3-1/2"; Lens 1-3/8"; Faceplate 3/8" thick
Finish	Bronze
Material	Injection-molded composite
Certifications	ETL
Lifetime	50,000 Hours
Warranty	Ten (10) year limited warranty on injection-molded composite housing; Five (5) years limited warranty on LED module
