Hooded Glass Lens Round Step Light, In-Ground, 5 Inch, Bronze, 15° Narrow Beam Angle, 350 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

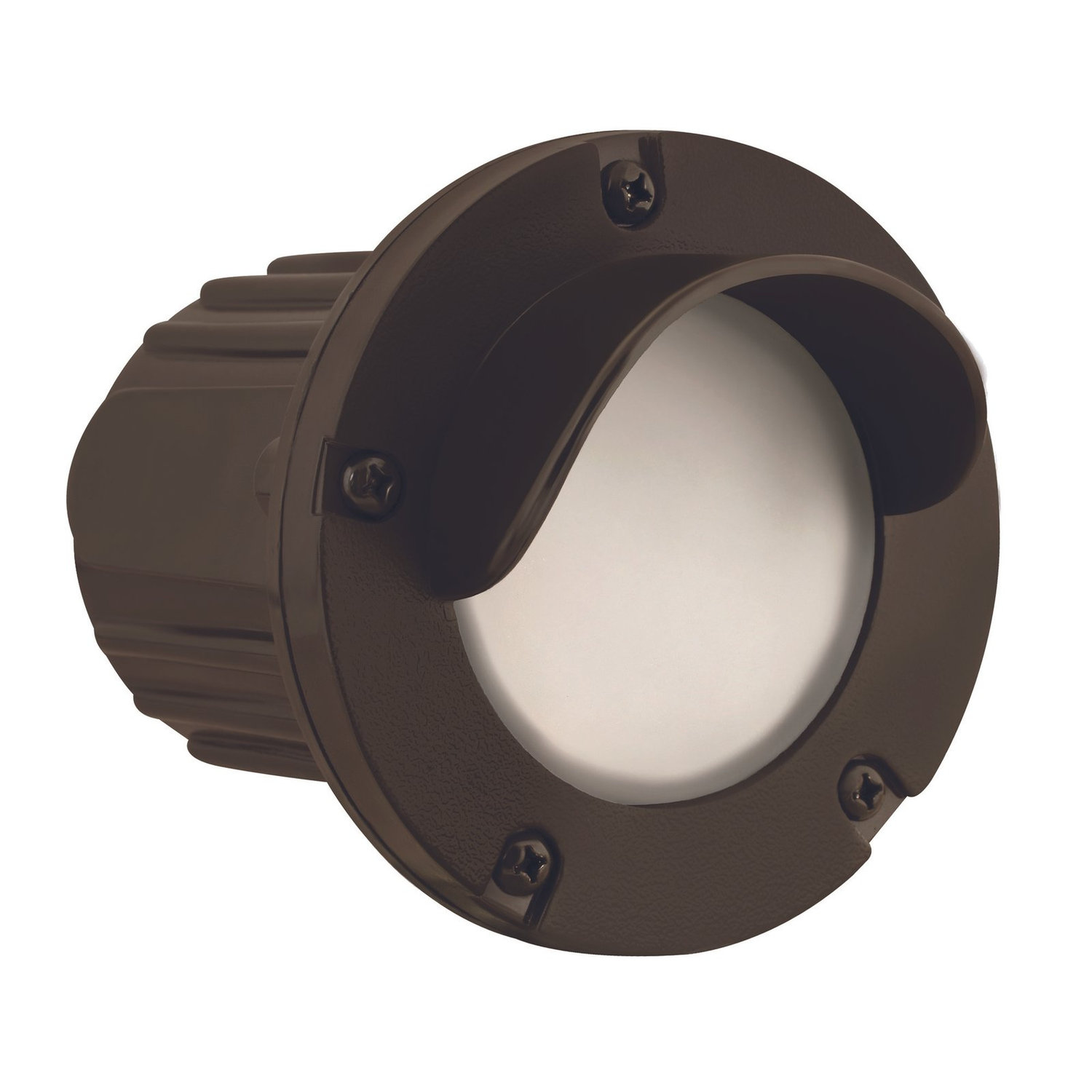

This Bronze hooded round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 5W MR16 LED lamp delivers 350 lumens at 2700K. This exact sold configuration has a 15° Narrow Beam Angle.
Features
-
- Injection-molded architectural-grade composite housing and faceplate with high UV stability
- Bronze finish
- Frosted heat-resistant glass lens sealed with a silicone O-ring gasket for weather protection
- Adjustable ceramic bi-pin MR16 socket with retention clip, Teflon-jacketed lead, and ±25° tilt
- Includes MR16 LED lamp: 5W, 350 Lumens, 2700K, CRI 80, 15° narrow beam angle, dimmable, 50,000-hour rated life
- LED operating range 9–17V; requires remote 12V transformer
- Prewired with 3 ft 18-2 SJT-W water-resistant/direct-burial cord
- Dimensions: 4-7/8" Dia x 6-1/8" L
- Surface mount supplied
- Supports in-ground direct burial or concrete encasement with pour kit
- Warranty: limited 10-year housing; 5-year manufacturer lamp warranty
This Bronze hooded round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 5W MR16 LED lamp delivers 350 lumens at 2700K. This exact sold configuration has a 15° Narrow Beam Angle.
Features
-
- Injection-molded architectural-grade composite housing and faceplate with high UV stability
- Bronze finish
- Frosted heat-resistant glass lens sealed with a silicone O-ring gasket for weather protection
- Adjustable ceramic bi-pin MR16 socket with retention clip, Teflon-jacketed lead, and ±25° tilt
- Includes MR16 LED lamp: 5W, 350 Lumens, 2700K, CRI 80, 15° narrow beam angle, dimmable, 50,000-hour rated life
- LED operating range 9–17V; requires remote 12V transformer
- Prewired with 3 ft 18-2 SJT-W water-resistant/direct-burial cord
- Dimensions: 4-7/8" Dia x 6-1/8" L
- Surface mount supplied
- Supports in-ground direct burial or concrete encasement with pour kit
- Warranty: limited 10-year housing; 5-year manufacturer lamp warranty
Overview
This Bronze hooded round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 5W MR16 LED lamp delivers 350 lumens at 2700K. This exact sold configuration has a 15° Narrow Beam Angle.
Features
-
- Injection-molded architectural-grade composite housing and faceplate with high UV stability
- Bronze finish
- Frosted heat-resistant glass lens sealed with a silicone O-ring gasket for weather protection
- Adjustable ceramic bi-pin MR16 socket with retention clip, Teflon-jacketed lead, and ±25° tilt
- Includes MR16 LED lamp: 5W, 350 Lumens, 2700K, CRI 80, 15° narrow beam angle, dimmable, 50,000-hour rated life
- LED operating range 9–17V; requires remote 12V transformer
- Prewired with 3 ft 18-2 SJT-W water-resistant/direct-burial cord
- Dimensions: 4-7/8" Dia x 6-1/8" L
- Surface mount supplied
- Supports in-ground direct burial or concrete encasement with pour kit
- Warranty: limited 10-year housing; 5-year manufacturer lamp warranty
Specifications
| Hooded Glass Lens Round Step Light, In-Ground, 5 Inch, Bronze, 15° Narrow Beam Angle, 350 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 350LM |
| Efficacy | 70LM/W |
| Wattage | 5W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 15° Narrow Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 6-1/8" L |
| Finish | Bronze |
| Material | Injection-molded composite |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited ten-year housing warranty and a five-year lamp warranty |
