Hooded Glass Lens Round Step Light, In-Ground, 5 Inch, Bronze, 15° Narrow Beam Angle, 270 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

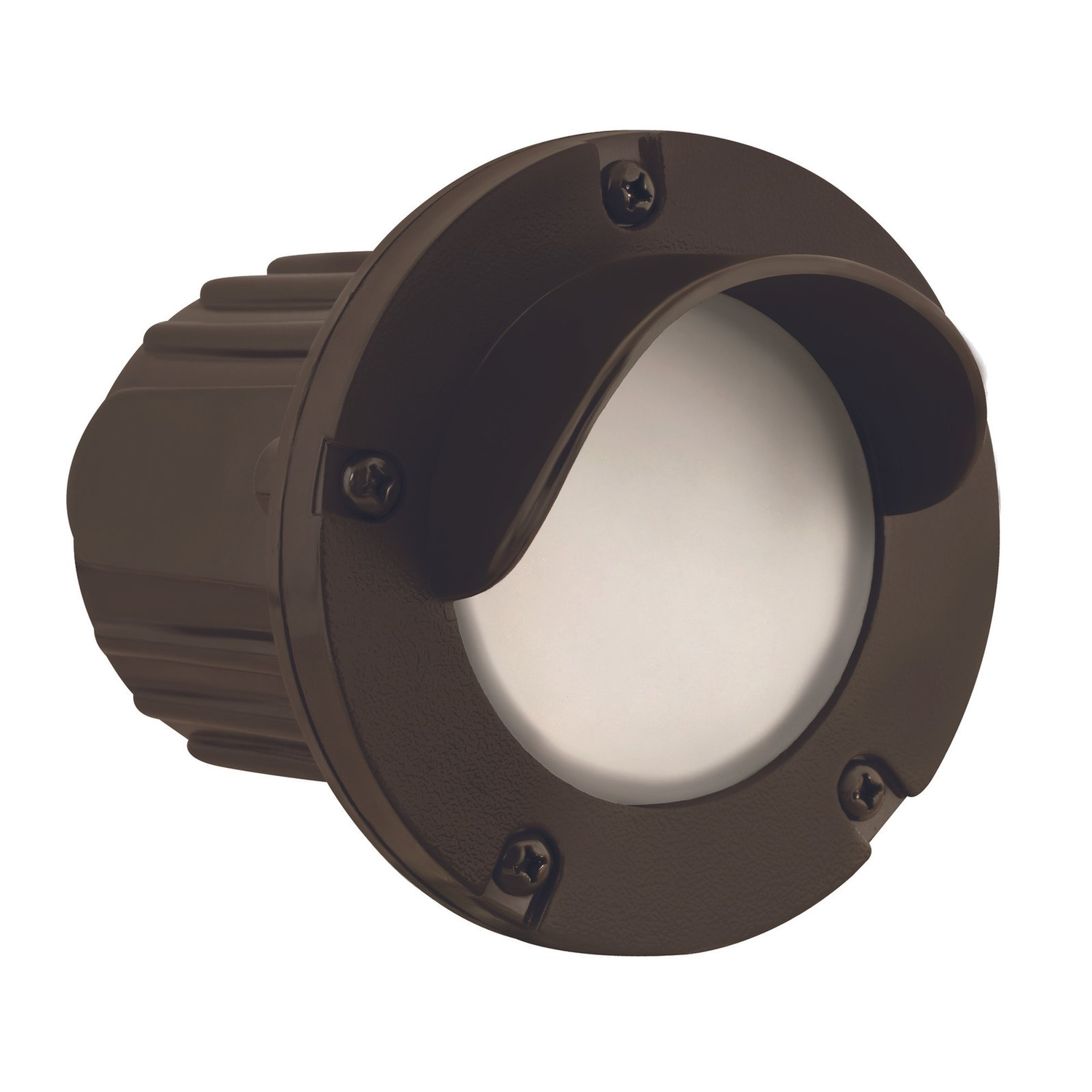

This Bronze hooded round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 3W MR16 LED lamp delivers 270 lumens at 2700K. This exact sold configuration has a 15° Narrow Beam Angle.
Features
-
- Injection-molded composite housing and faceplate with high UV stability for long-term outdoor use
- Bronze finish with frosted heat-resistant glass lens and silicone O-ring gasket to seal the faceplate
- Top-grade adjustable ceramic bi-pin MR16 socket with retention clip and ±25° tilt for precise aiming
- Includes MR16 LED lamp: 3.5W, 270 Lumens, 2700K, 15° narrow spot (3.5 SP), dimmable, 77.1 Lumens/W efficacy, 50,000-hour rated lifetime
- LED operating range: 9–17V; remote 12V transformer required
- Prewired with 3 ft 18-2 SJT-W water-resistant direct-burial cord
- ETL listed; rated for -22°F to 122°F
- Surface mount supplied
- Mounting options include in-ground direct burial or concrete encasement with optional CX-237 concrete pour kit
This Bronze hooded round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 3W MR16 LED lamp delivers 270 lumens at 2700K. This exact sold configuration has a 15° Narrow Beam Angle.
Features
-
- Injection-molded composite housing and faceplate with high UV stability for long-term outdoor use
- Bronze finish with frosted heat-resistant glass lens and silicone O-ring gasket to seal the faceplate
- Top-grade adjustable ceramic bi-pin MR16 socket with retention clip and ±25° tilt for precise aiming
- Includes MR16 LED lamp: 3.5W, 270 Lumens, 2700K, 15° narrow spot (3.5 SP), dimmable, 77.1 Lumens/W efficacy, 50,000-hour rated lifetime
- LED operating range: 9–17V; remote 12V transformer required
- Prewired with 3 ft 18-2 SJT-W water-resistant direct-burial cord
- ETL listed; rated for -22°F to 122°F
- Surface mount supplied
- Mounting options include in-ground direct burial or concrete encasement with optional CX-237 concrete pour kit
Overview
This Bronze hooded round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 3W MR16 LED lamp delivers 270 lumens at 2700K. This exact sold configuration has a 15° Narrow Beam Angle.
Features
-
- Injection-molded composite housing and faceplate with high UV stability for long-term outdoor use
- Bronze finish with frosted heat-resistant glass lens and silicone O-ring gasket to seal the faceplate
- Top-grade adjustable ceramic bi-pin MR16 socket with retention clip and ±25° tilt for precise aiming
- Includes MR16 LED lamp: 3.5W, 270 Lumens, 2700K, 15° narrow spot (3.5 SP), dimmable, 77.1 Lumens/W efficacy, 50,000-hour rated lifetime
- LED operating range: 9–17V; remote 12V transformer required
- Prewired with 3 ft 18-2 SJT-W water-resistant direct-burial cord
- ETL listed; rated for -22°F to 122°F
- Surface mount supplied
- Mounting options include in-ground direct burial or concrete encasement with optional CX-237 concrete pour kit
Specifications
| Hooded Glass Lens Round Step Light, In-Ground, 5 Inch, Bronze, 15° Narrow Beam Angle, 270 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 270LM |
| Efficacy | 77.1LM/W |
| Wattage | 3.5W |
| Wattage Equivalency | 25W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 15° Narrow Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Included Components | COB LED |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 6-1/8" L |
| Finish | Bronze |
| Material | Injection-molded composite |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited warranty on composite fixture housing per manufacturer terms; Five (5) years limited warranty on LED module |
