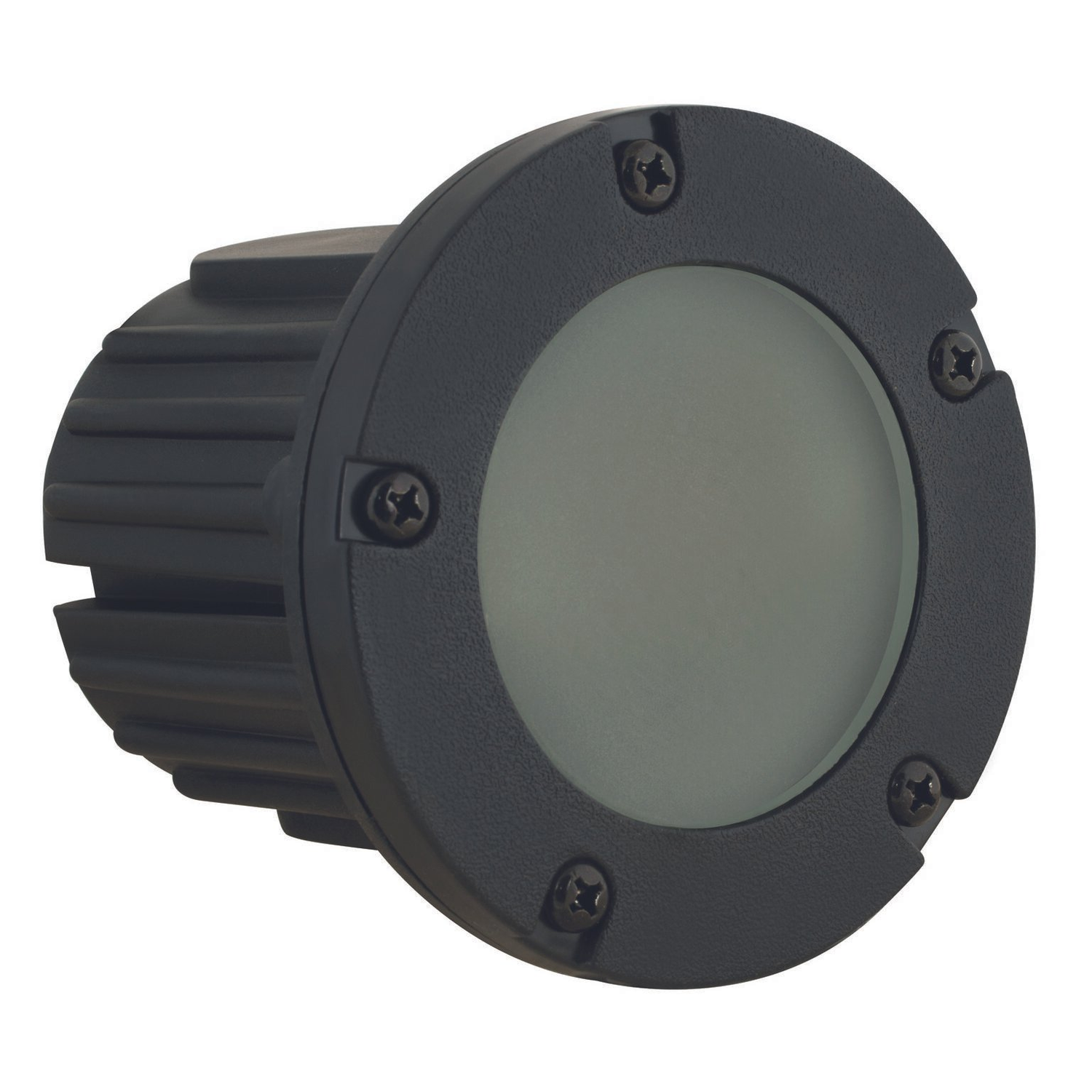

Glass Lens Disc Step Light, In-Ground, 5 Inch, Black, 15° Narrow Beam Angle, 450 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 450 lumens at 2700K with a 15° narrow beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Step and brick light, architectural grade
- Finish: Black or bronze (this bundle includes the Black finish)
- Injection-molded composite housing engineered for high UV stability
- Dimensions: 4-7/8" Dia x 4-5/8" L
- Frosted heat-resistant glass lens with adjustable ceramic bi-pin socket and retention clip
- Included lamp: MR16 5W COB LED, approximately 450 Lumens, 2700K, CRI 80, beam angle 15° Narrow Beam Angle, 50,000-hour rated life
- Prewired with 3 ft 18-2 SJT-W water-resistant cord
- Lamp operation: 9–17V; remote 12V transformer required
- Mounting: in-ground direct burial or concrete encasement
- Warranty: 10-year fixture warranty
This glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 450 lumens at 2700K with a 15° narrow beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Step and brick light, architectural grade
- Finish: Black or bronze (this bundle includes the Black finish)
- Injection-molded composite housing engineered for high UV stability
- Dimensions: 4-7/8" Dia x 4-5/8" L
- Frosted heat-resistant glass lens with adjustable ceramic bi-pin socket and retention clip
- Included lamp: MR16 5W COB LED, approximately 450 Lumens, 2700K, CRI 80, beam angle 15° Narrow Beam Angle, 50,000-hour rated life
- Prewired with 3 ft 18-2 SJT-W water-resistant cord
- Lamp operation: 9–17V; remote 12V transformer required
- Mounting: in-ground direct burial or concrete encasement
- Warranty: 10-year fixture warranty
Overview
This glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 450 lumens at 2700K with a 15° narrow beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Step and brick light, architectural grade
- Finish: Black or bronze (this bundle includes the Black finish)
- Injection-molded composite housing engineered for high UV stability
- Dimensions: 4-7/8" Dia x 4-5/8" L
- Frosted heat-resistant glass lens with adjustable ceramic bi-pin socket and retention clip
- Included lamp: MR16 5W COB LED, approximately 450 Lumens, 2700K, CRI 80, beam angle 15° Narrow Beam Angle, 50,000-hour rated life
- Prewired with 3 ft 18-2 SJT-W water-resistant cord
- Lamp operation: 9–17V; remote 12V transformer required
- Mounting: in-ground direct burial or concrete encasement
- Warranty: 10-year fixture warranty
Specifications
| Glass Lens Disc Step Light, In-Ground, 5 Inch, Black, 15° Narrow Beam Angle, 450 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 450LM |
| Efficacy | 94LM/W |
| Wattage | 5W |
| Wattage Equivalency | 50W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 15° Narrow Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 4-5/8" L |
| Finish | Black |
| Material | Composite (injection-molded) |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | 10-year limited warranty on composite fixture housing; 5-year limited warranty on LED lamp module |
