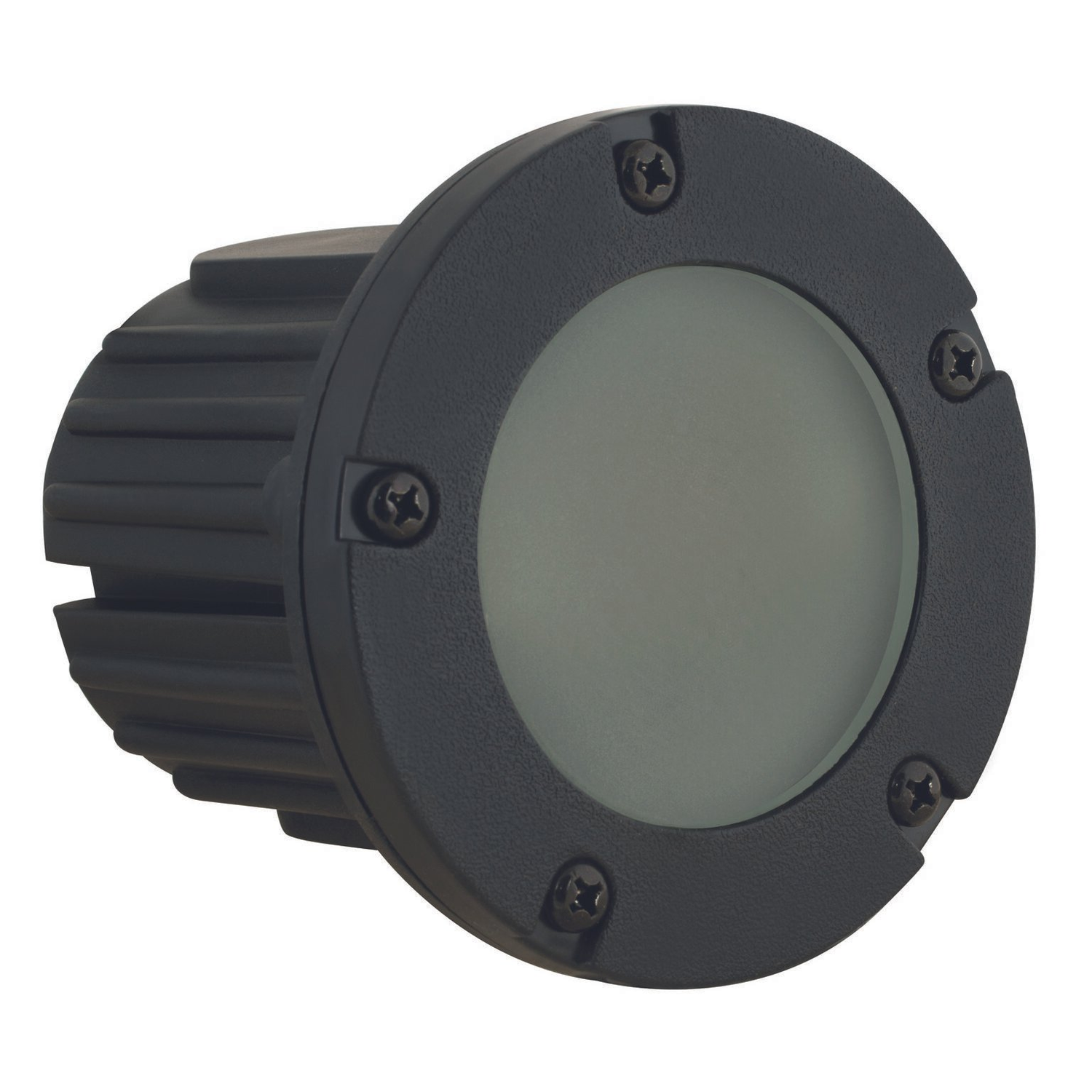

Glass Lens Disc Step Light, In-Ground, 5 Inch, Black, 38° Beam Angle, 450 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 450 lumens at 2700K with a 38° beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Lensed step light with composite injection-molded housing for high UV stability and frosted, heat-resistant glass lens
- Dimensions: 4-7/8" Dia x 4-5/8" L
- Top-grade adjustable ceramic MR16 bi-pin socket with retention clip
- Includes COB MR16 5W LED lamp: approx 450 Lumens, 2700K, beam angle 38° Beam Angle, 50,000-hour rated life
- Mounting: in-ground direct burial or concrete encasement
- Suitable for in-ground direct burial or concrete encasement with optional concrete pour kit
- Dimmable operation with compatible 12V dimmers
- Warranty: 10-year fixture warranty
This glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 450 lumens at 2700K with a 38° beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Lensed step light with composite injection-molded housing for high UV stability and frosted, heat-resistant glass lens
- Dimensions: 4-7/8" Dia x 4-5/8" L
- Top-grade adjustable ceramic MR16 bi-pin socket with retention clip
- Includes COB MR16 5W LED lamp: approx 450 Lumens, 2700K, beam angle 38° Beam Angle, 50,000-hour rated life
- Mounting: in-ground direct burial or concrete encasement
- Suitable for in-ground direct burial or concrete encasement with optional concrete pour kit
- Dimmable operation with compatible 12V dimmers
- Warranty: 10-year fixture warranty
Overview
This glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 450 lumens at 2700K with a 38° beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Lensed step light with composite injection-molded housing for high UV stability and frosted, heat-resistant glass lens
- Dimensions: 4-7/8" Dia x 4-5/8" L
- Top-grade adjustable ceramic MR16 bi-pin socket with retention clip
- Includes COB MR16 5W LED lamp: approx 450 Lumens, 2700K, beam angle 38° Beam Angle, 50,000-hour rated life
- Mounting: in-ground direct burial or concrete encasement
- Suitable for in-ground direct burial or concrete encasement with optional concrete pour kit
- Dimmable operation with compatible 12V dimmers
- Warranty: 10-year fixture warranty
Specifications
| Glass Lens Disc Step Light, In-Ground, 5 Inch, Black, 38° Beam Angle, 450 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 450LM |
| Efficacy | 94LM/W |
| Wattage | 5W |
| Wattage Equivalency | 50W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 38° Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 4-5/8" L |
| Finish | Black |
| Material | Composite (injection-molded) |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Ten (10) year warranty on fixture housing against manufacturer's defects; Five (5) year warranty on LED lamp |
