Brass Mini Single Head Path Light, 18 Inch Stem, Gun Metal, 15° Narrow Beam Angle, 270 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

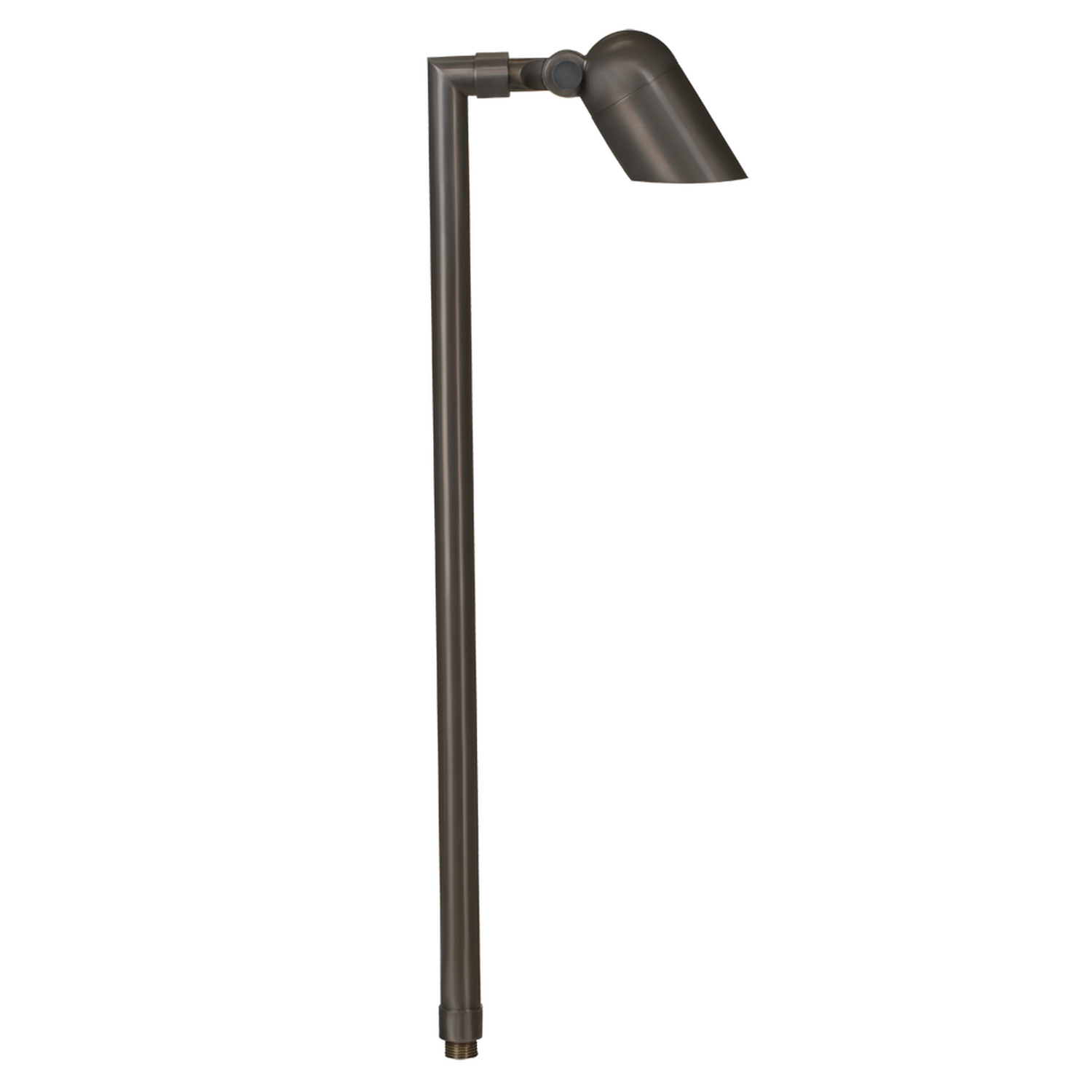

This mini single-head path light features a die-cast brass construction in a Gun Metal finish with an 18" stem and a 2-1/2" Dia. head, built for corrosion-resistant landscape performance. It ships with a 3.5W MR16 LED lamp at 2700K delivering a 15° spot beam at 270 Lumens with a CRI of 80 and a 50,000-hour rated life. The fixture is dimmable and ETL listed. Installation is simplified with a supplied ground spike, prewired 3 ft direct-burial cord, and a 1/2" NPT hub; a remote 12V transformer is required. Ideal for lining garden walkways and entry paths where focused ground-level illumination guides foot traffic safely after dark.
Features
-
- Die-cast brass mini single-head path light with 18 Inch stem and 2-1/2 Inch Dia head
- Gun Metal finish; corrosion-resistant cast brass housing and shroud
- Included MR16 LED lamp: 3.5W, 270 Lumens, 2700K, 15° spot beam, CRI 80; dimmable; 50,000-hour rated life; approx 25W halogen equivalent
- Clear heat-resistant convex glass lens with silicone double-gasketed watertight sealing
- Adjustable cast brass knuckle with thumb screw for precise aiming
- Fixed ceramic bi-pin socket with retention clip
- Prewired with 3 ft 18-2 SPT2-W direct-burial cord and ground spike with 1/2 Inch NPT female hub
- 12V system; requires remote 12V transformer; LED operating range 9–17V
- Connectors sold separately
This mini single-head path light features a die-cast brass construction in a Gun Metal finish with an 18" stem and a 2-1/2" Dia. head, built for corrosion-resistant landscape performance. It ships with a 3.5W MR16 LED lamp at 2700K delivering a 15° spot beam at 270 Lumens with a CRI of 80 and a 50,000-hour rated life. The fixture is dimmable and ETL listed. Installation is simplified with a supplied ground spike, prewired 3 ft direct-burial cord, and a 1/2" NPT hub; a remote 12V transformer is required. Ideal for lining garden walkways and entry paths where focused ground-level illumination guides foot traffic safely after dark.
Features
-
- Die-cast brass mini single-head path light with 18 Inch stem and 2-1/2 Inch Dia head
- Gun Metal finish; corrosion-resistant cast brass housing and shroud
- Included MR16 LED lamp: 3.5W, 270 Lumens, 2700K, 15° spot beam, CRI 80; dimmable; 50,000-hour rated life; approx 25W halogen equivalent
- Clear heat-resistant convex glass lens with silicone double-gasketed watertight sealing
- Adjustable cast brass knuckle with thumb screw for precise aiming
- Fixed ceramic bi-pin socket with retention clip
- Prewired with 3 ft 18-2 SPT2-W direct-burial cord and ground spike with 1/2 Inch NPT female hub
- 12V system; requires remote 12V transformer; LED operating range 9–17V
- Connectors sold separately
Overview
This mini single-head path light features a die-cast brass construction in a Gun Metal finish with an 18" stem and a 2-1/2" Dia. head, built for corrosion-resistant landscape performance. It ships with a 3.5W MR16 LED lamp at 2700K delivering a 15° spot beam at 270 Lumens with a CRI of 80 and a 50,000-hour rated life. The fixture is dimmable and ETL listed. Installation is simplified with a supplied ground spike, prewired 3 ft direct-burial cord, and a 1/2" NPT hub; a remote 12V transformer is required. Ideal for lining garden walkways and entry paths where focused ground-level illumination guides foot traffic safely after dark.
Features
-
- Die-cast brass mini single-head path light with 18 Inch stem and 2-1/2 Inch Dia head
- Gun Metal finish; corrosion-resistant cast brass housing and shroud
- Included MR16 LED lamp: 3.5W, 270 Lumens, 2700K, 15° spot beam, CRI 80; dimmable; 50,000-hour rated life; approx 25W halogen equivalent
- Clear heat-resistant convex glass lens with silicone double-gasketed watertight sealing
- Adjustable cast brass knuckle with thumb screw for precise aiming
- Fixed ceramic bi-pin socket with retention clip
- Prewired with 3 ft 18-2 SPT2-W direct-burial cord and ground spike with 1/2 Inch NPT female hub
- 12V system; requires remote 12V transformer; LED operating range 9–17V
- Connectors sold separately
Specifications
| Brass Mini Single Head Path Light, 18 Inch Stem, Gun Metal, 15° Narrow Beam Angle, 270 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 270LM |
| Efficacy | 77.1LM/W |
| Wattage | 3.5W |
| Wattage Equivalency | 25W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K |
| CRI | 80.0+ |
| Beam Angle | 15° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Included Components | COB LED |
| Mount Type | Ground Spike |
| Dimensions | 2-1/2" Dia. Head; H 18" |
| Finish | Gun Metal |
| Material | Corrosion-resistant cast brass |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime warranty on cast brass fixture housing; five (5) year limited warranty on LED module |
