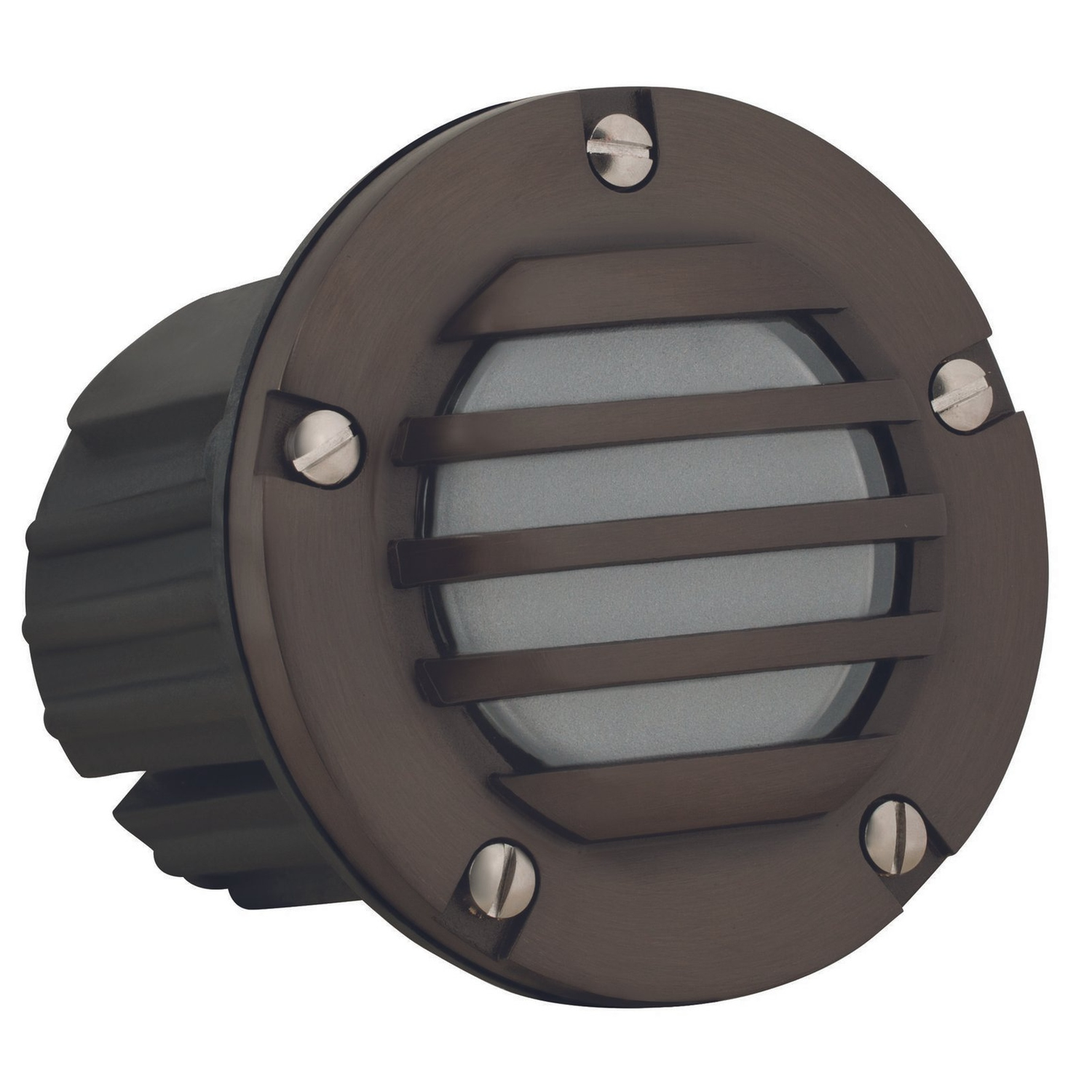

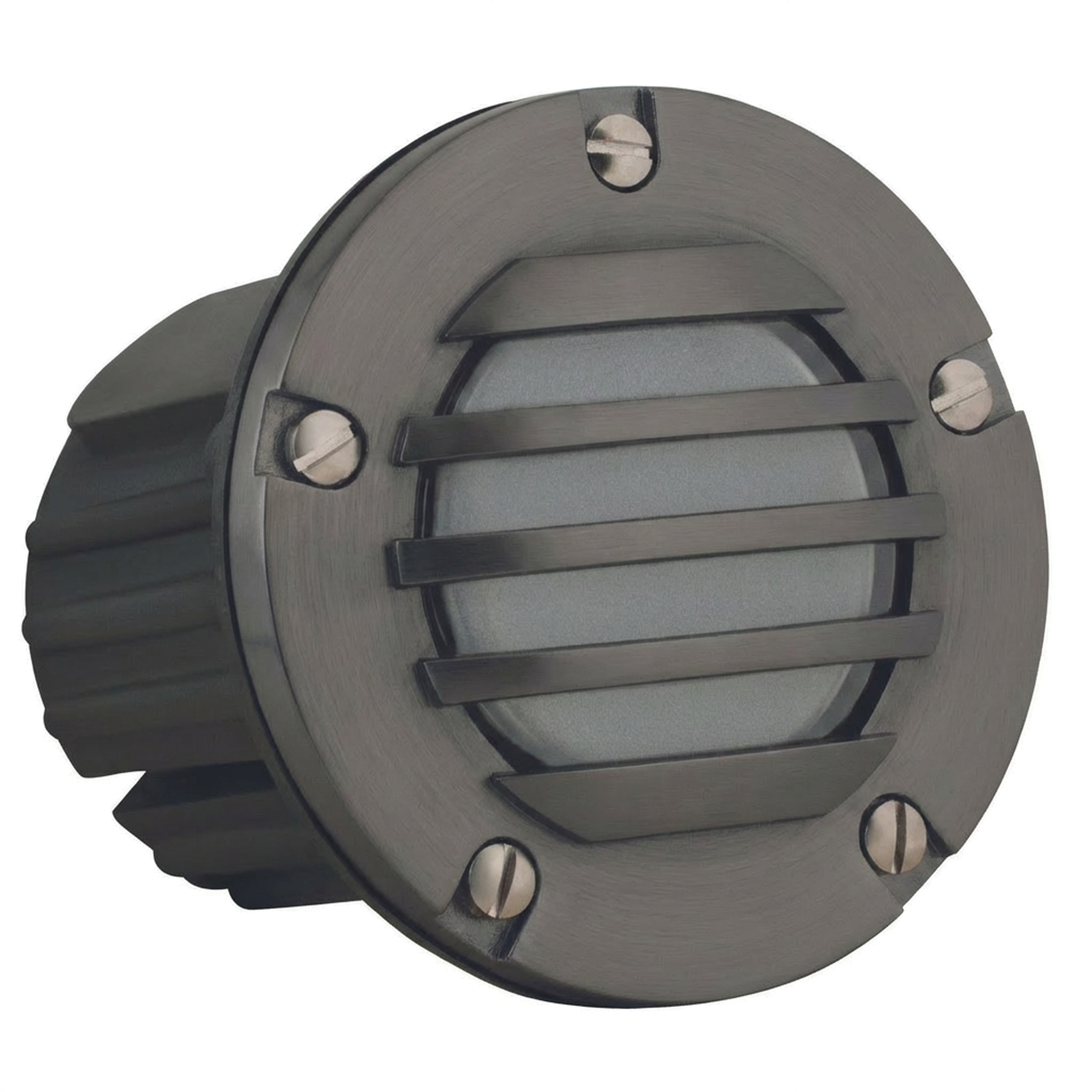

Brass Louvered Glass Lens Round Step Light, In-Ground, 5 Inch, Gun Metal, 45° Wide Beam Angle, 270 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This Gun Metal brass louvered round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 3W MR16 LED lamp delivers 270 lumens at 2700K. This exact sold configuration has a 45° Wide Beam Angle.
Features
-
- Cast brass faceplate with Gun Metal natural toning process for architectural-grade durability
- Injection-molded composite housing with high UV stability and silicone O-ring gasket for weather-tight protection
- Frosted heat-resistant flat glass lens; prewired 3 ft 18-2 SJT-W direct-burial cord
- Top-grade adjustable ceramic bi-pin MR16 socket with retention clip and ±25° tilt for precise aiming
- LED voltage range 9–17V; requires remote 12V transformer; surface-mount faceplate supplied
- Included MR16 LED lamp, 3.5W, approx 270 Lumens, 2700K color temperature, 45° beam, dimmable; 50,000-hour life; approx 25W halogen equivalency
- ETL listed; optional concrete pour kit CX-237 available for encasement
This Gun Metal brass louvered round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 3W MR16 LED lamp delivers 270 lumens at 2700K. This exact sold configuration has a 45° Wide Beam Angle.
Features
-
- Cast brass faceplate with Gun Metal natural toning process for architectural-grade durability
- Injection-molded composite housing with high UV stability and silicone O-ring gasket for weather-tight protection
- Frosted heat-resistant flat glass lens; prewired 3 ft 18-2 SJT-W direct-burial cord
- Top-grade adjustable ceramic bi-pin MR16 socket with retention clip and ±25° tilt for precise aiming
- LED voltage range 9–17V; requires remote 12V transformer; surface-mount faceplate supplied
- Included MR16 LED lamp, 3.5W, approx 270 Lumens, 2700K color temperature, 45° beam, dimmable; 50,000-hour life; approx 25W halogen equivalency
- ETL listed; optional concrete pour kit CX-237 available for encasement
Overview
This Gun Metal brass louvered round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 3W MR16 LED lamp delivers 270 lumens at 2700K. This exact sold configuration has a 45° Wide Beam Angle.
Features
-
- Cast brass faceplate with Gun Metal natural toning process for architectural-grade durability
- Injection-molded composite housing with high UV stability and silicone O-ring gasket for weather-tight protection
- Frosted heat-resistant flat glass lens; prewired 3 ft 18-2 SJT-W direct-burial cord
- Top-grade adjustable ceramic bi-pin MR16 socket with retention clip and ±25° tilt for precise aiming
- LED voltage range 9–17V; requires remote 12V transformer; surface-mount faceplate supplied
- Included MR16 LED lamp, 3.5W, approx 270 Lumens, 2700K color temperature, 45° beam, dimmable; 50,000-hour life; approx 25W halogen equivalency
- ETL listed; optional concrete pour kit CX-237 available for encasement
Specifications
| Brass Louvered Glass Lens Round Step Light, In-Ground, 5 Inch, Gun Metal, 45° Wide Beam Angle, 270 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 270LM |
| Efficacy | 77.1LM/W |
| Wattage | 3.5W |
| Wattage Equivalency | 25W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 45° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Included Components | COB LED |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 4-5/8" L |
| Finish | Gun Metal |
| Material | Cast brass faceplate; injection-molded composite housing |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime warranty on brass faceplate; 10 years on housing; included LED lamps 5-year limited. |
