Brass Half-Moon Glass Lens Step Light, In-Ground, 5 Inch, Antique Bronze, 45° Wide Beam Angle, 270 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

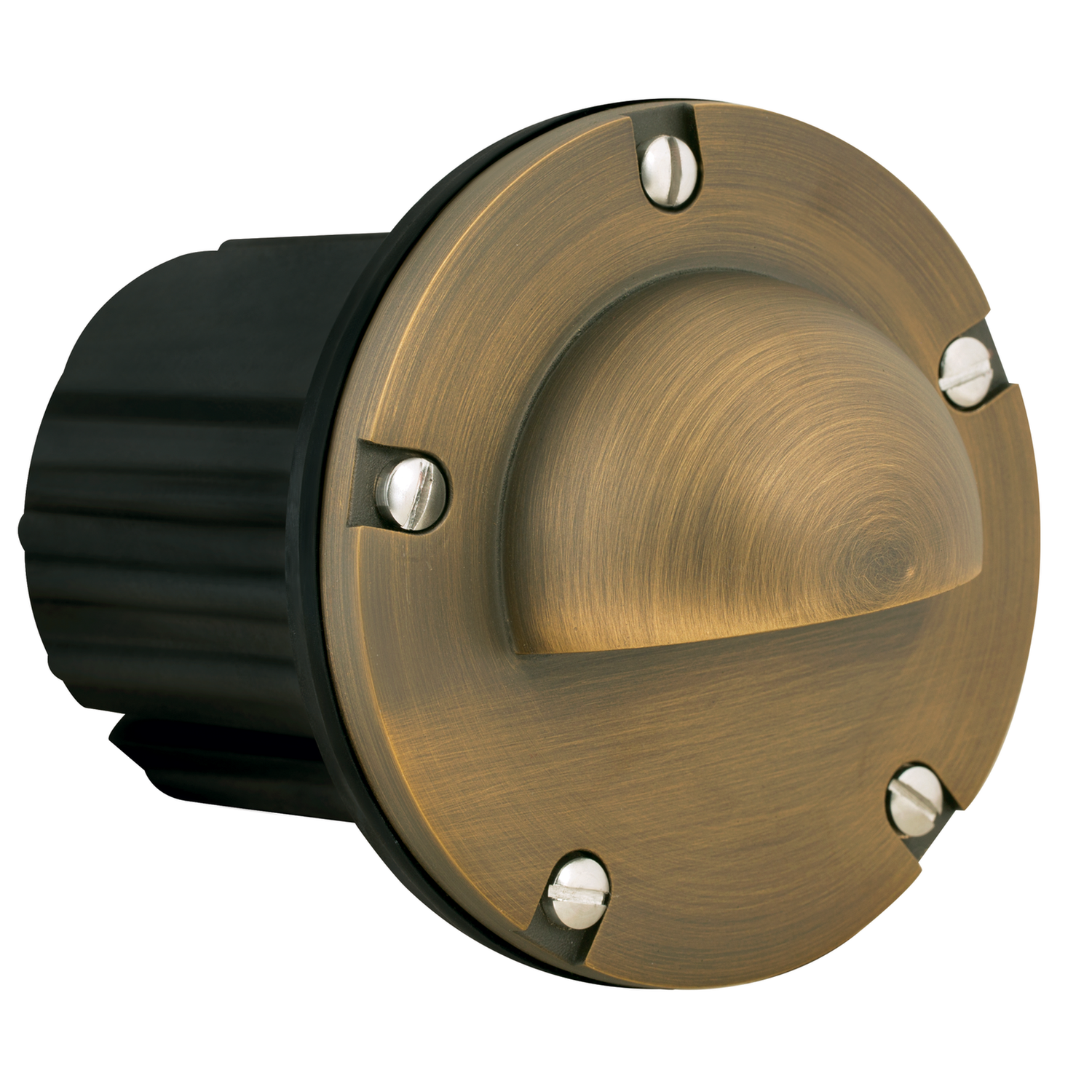

This cast brass faceplate and composite housing half-moon step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 270 lumens with a 45° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Half-moon step/brick light with die-cast brass faceplate and injection-molded composite housing for high UV stability
- Finish: Antique Bronze
- Dimensions: 4-7/8" Dia face; 6" overall length; approx 4-5/8" depth
- Adjustable ceramic bi-pin MR16 socket with retention clip; tilts ±25° for precise aiming
- Includes MR16 LED lamp: 3.5W, 270 Lumens, 2700K, CRI 80, 45° beam angle, dimmable, 50,000-hour rated life
- LED operating range: 9–17V; requires remote 12V magnetic transformer (not included)
- Prewired with 3 ft 18-2 SJT-W direct-burial cord; supplied for surface-mount installation
- Weather-tight with silicone O-ring seal; ETL listed
- Limited lifetime warranty on brass faceplate
This cast brass faceplate and composite housing half-moon step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 270 lumens with a 45° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Half-moon step/brick light with die-cast brass faceplate and injection-molded composite housing for high UV stability
- Finish: Antique Bronze
- Dimensions: 4-7/8" Dia face; 6" overall length; approx 4-5/8" depth
- Adjustable ceramic bi-pin MR16 socket with retention clip; tilts ±25° for precise aiming
- Includes MR16 LED lamp: 3.5W, 270 Lumens, 2700K, CRI 80, 45° beam angle, dimmable, 50,000-hour rated life
- LED operating range: 9–17V; requires remote 12V magnetic transformer (not included)
- Prewired with 3 ft 18-2 SJT-W direct-burial cord; supplied for surface-mount installation
- Weather-tight with silicone O-ring seal; ETL listed
- Limited lifetime warranty on brass faceplate
Overview
This cast brass faceplate and composite housing half-moon step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 270 lumens with a 45° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Half-moon step/brick light with die-cast brass faceplate and injection-molded composite housing for high UV stability
- Finish: Antique Bronze
- Dimensions: 4-7/8" Dia face; 6" overall length; approx 4-5/8" depth
- Adjustable ceramic bi-pin MR16 socket with retention clip; tilts ±25° for precise aiming
- Includes MR16 LED lamp: 3.5W, 270 Lumens, 2700K, CRI 80, 45° beam angle, dimmable, 50,000-hour rated life
- LED operating range: 9–17V; requires remote 12V magnetic transformer (not included)
- Prewired with 3 ft 18-2 SJT-W direct-burial cord; supplied for surface-mount installation
- Weather-tight with silicone O-ring seal; ETL listed
- Limited lifetime warranty on brass faceplate
Specifications
| Brass Half-Moon Glass Lens Step Light, In-Ground, 5 Inch, Antique Bronze, 45° Wide Beam Angle, 270 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 270LM |
| Efficacy | 77.1LM/W |
| Wattage | 3.5W |
| Wattage Equivalency | 25W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 45° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Included Components | COB LED |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. face; 6" overall L; Approx. 4-5/8" D |
| Finish | Antique Bronze |
| Material | Die-cast brass faceplate; injection-molded composite housing |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime warranty on brass faceplate; Ten (10) years on housing (manufacturer's defects); five (5) year manufacturer's warranty on the LED lamp |
