Ships within 1 business dayOverview

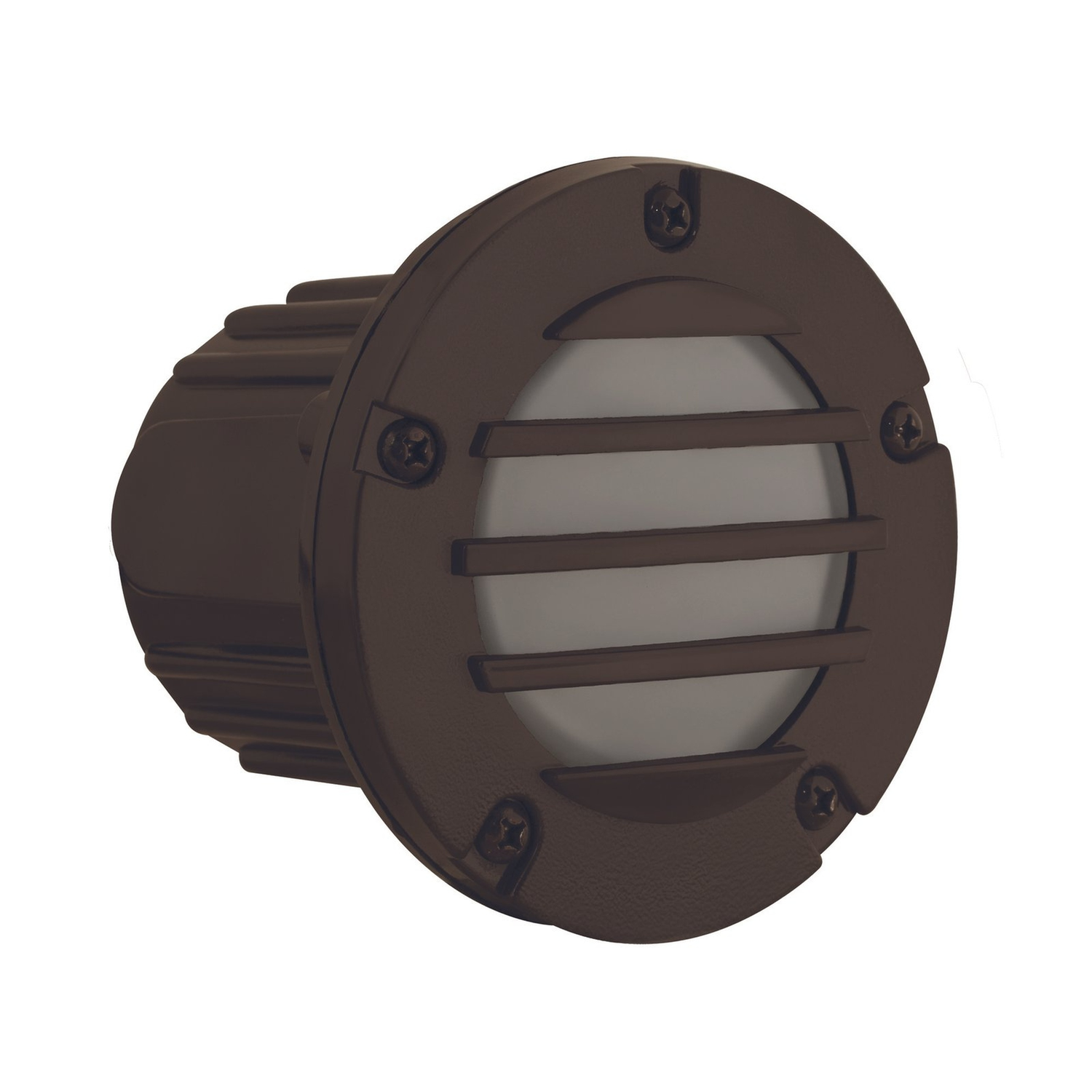

This injection-molded composite 4-louver step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 350 lumens with a 60° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Hooded/louvered step light with frosted, heat-resistant glass lens
- Injection-molded composite housing and sealed faceplate for high UV stability
- Finish: Bronze (Black optional)
- Includes MR16 LED lamp: 5W, 350 Lumens, 2700K, CRI 80, 50,000-hour rated life
- Dimmable; LED operating range 9–17V; remote 12V transformer required
- Adjustable ceramic bi-pin socket
- Prewired with 3 ft 18-2 SJT-W direct-burial water-resistant cord; silicone O-ring gasket for a weather-tight seal
- Mounting: in-ground direct burial or concrete encasement
- Concrete pour kit CX-237 recommended for concrete installs

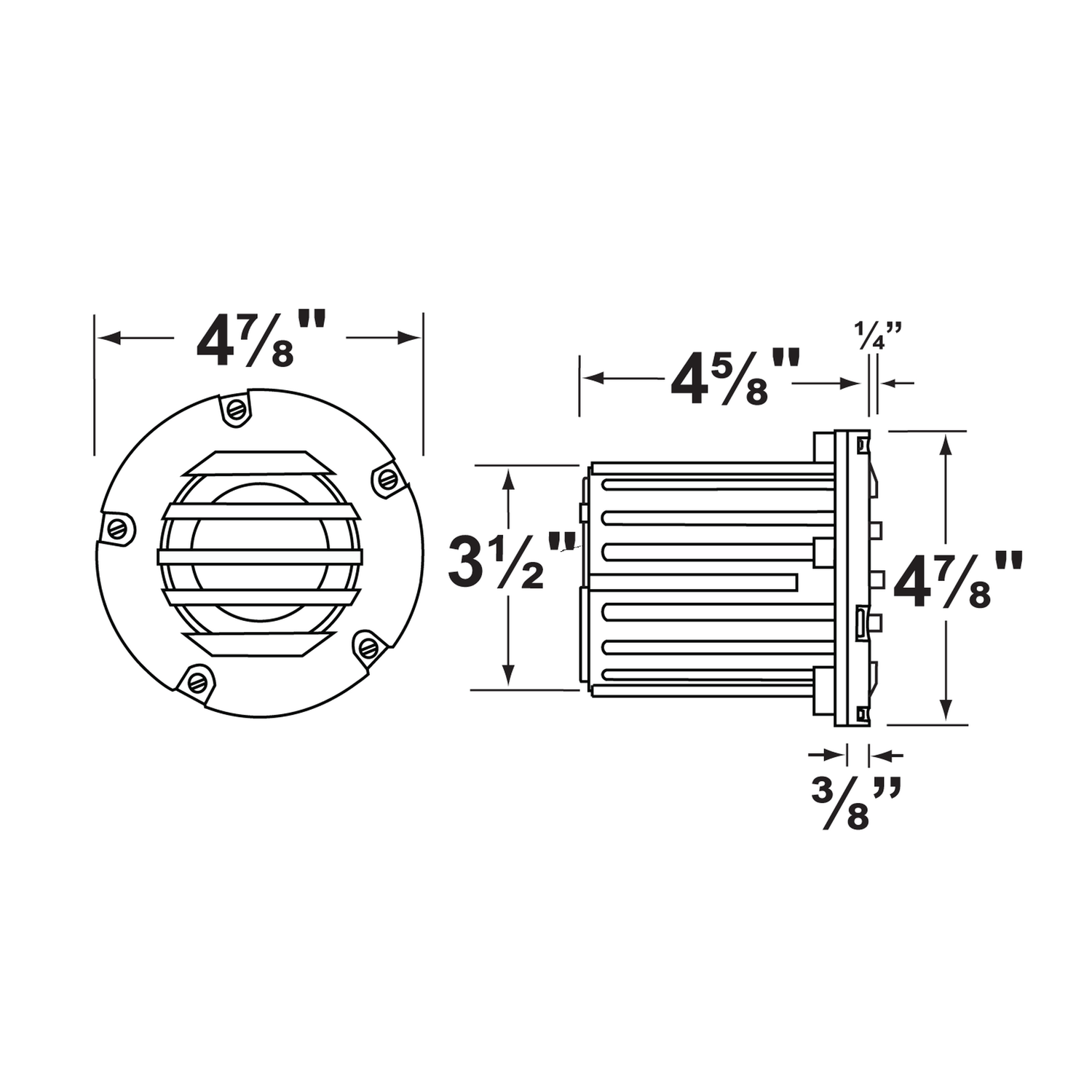

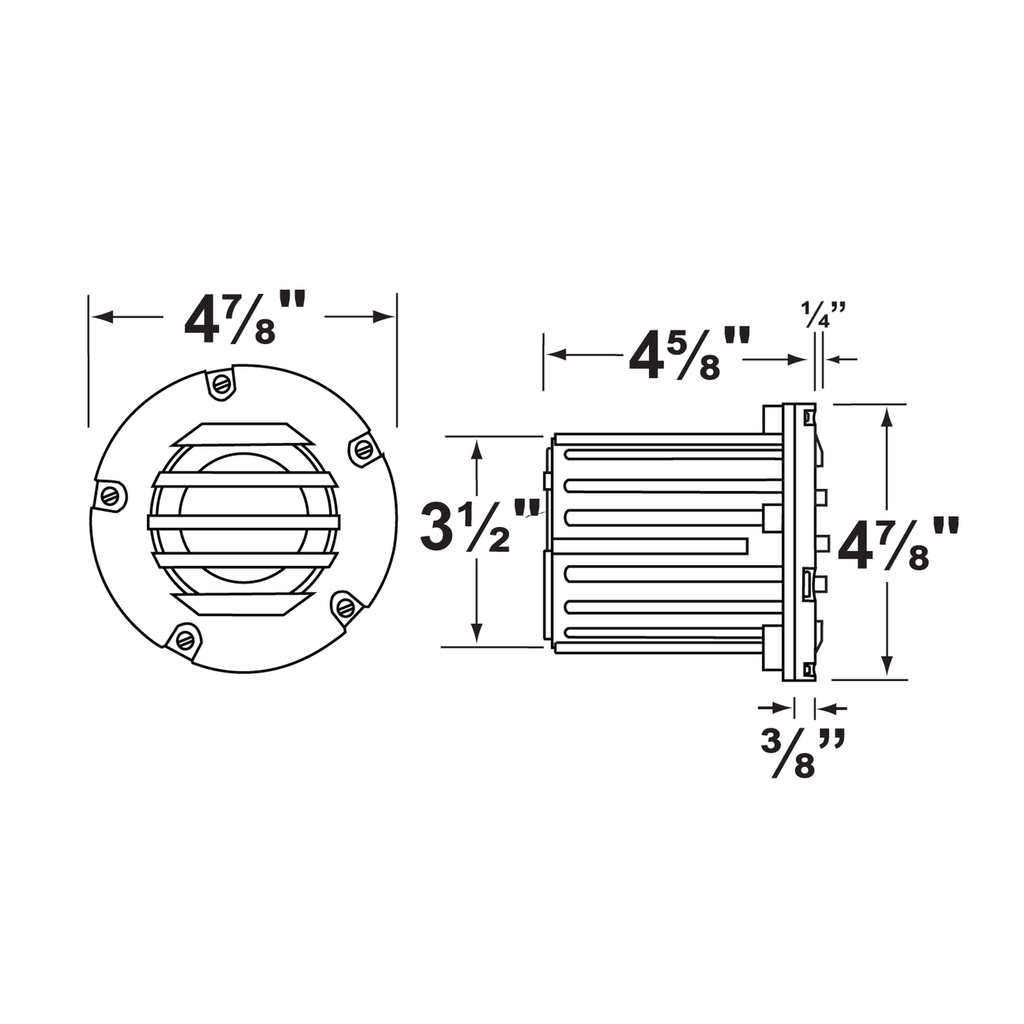

- Approx dimensions: 4-7/8" Dia x 6-1/8" L
- Limited 10-year fixture housing warranty; 5-year lamp warranty
- Beam angle: 60° wide beam
This injection-molded composite 4-louver step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 350 lumens with a 60° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Hooded/louvered step light with frosted, heat-resistant glass lens
- Injection-molded composite housing and sealed faceplate for high UV stability
- Finish: Bronze (Black optional)
- Includes MR16 LED lamp: 5W, 350 Lumens, 2700K, CRI 80, 50,000-hour rated life
- Dimmable; LED operating range 9–17V; remote 12V transformer required
- Adjustable ceramic bi-pin socket
- Prewired with 3 ft 18-2 SJT-W direct-burial water-resistant cord; silicone O-ring gasket for a weather-tight seal
- Mounting: in-ground direct burial or concrete encasement
- Concrete pour kit CX-237 recommended for concrete installs
- Approx dimensions: 4-7/8" Dia x 6-1/8" L
- Limited 10-year fixture housing warranty; 5-year lamp warranty
- Beam angle: 60° wide beam
Overview
This injection-molded composite 4-louver step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 350 lumens with a 60° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Hooded/louvered step light with frosted, heat-resistant glass lens
- Injection-molded composite housing and sealed faceplate for high UV stability
- Finish: Bronze (Black optional)
- Includes MR16 LED lamp: 5W, 350 Lumens, 2700K, CRI 80, 50,000-hour rated life
- Dimmable; LED operating range 9–17V; remote 12V transformer required
- Adjustable ceramic bi-pin socket
- Prewired with 3 ft 18-2 SJT-W direct-burial water-resistant cord; silicone O-ring gasket for a weather-tight seal
- Mounting: in-ground direct burial or concrete encasement
- Concrete pour kit CX-237 recommended for concrete installs
- Approx dimensions: 4-7/8" Dia x 6-1/8" L
- Limited 10-year fixture housing warranty; 5-year lamp warranty
- Beam angle: 60° wide beam
Specifications
| 4-Louver Glass Lens Step Light, In-Ground, 5 Inch, Bronze, 60° Wide Beam Angle, 350 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 350LM |
| Efficacy | 70LM/W |
| Wattage | 5W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 60° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | Approx. 4-7/8" Dia. x 6-1/8" L |
| Finish | Bronze |
| Material | Injection-molded composite |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited 10-year warranty on injection-molded composite housing; five (5) year limited warranty on LED module |
