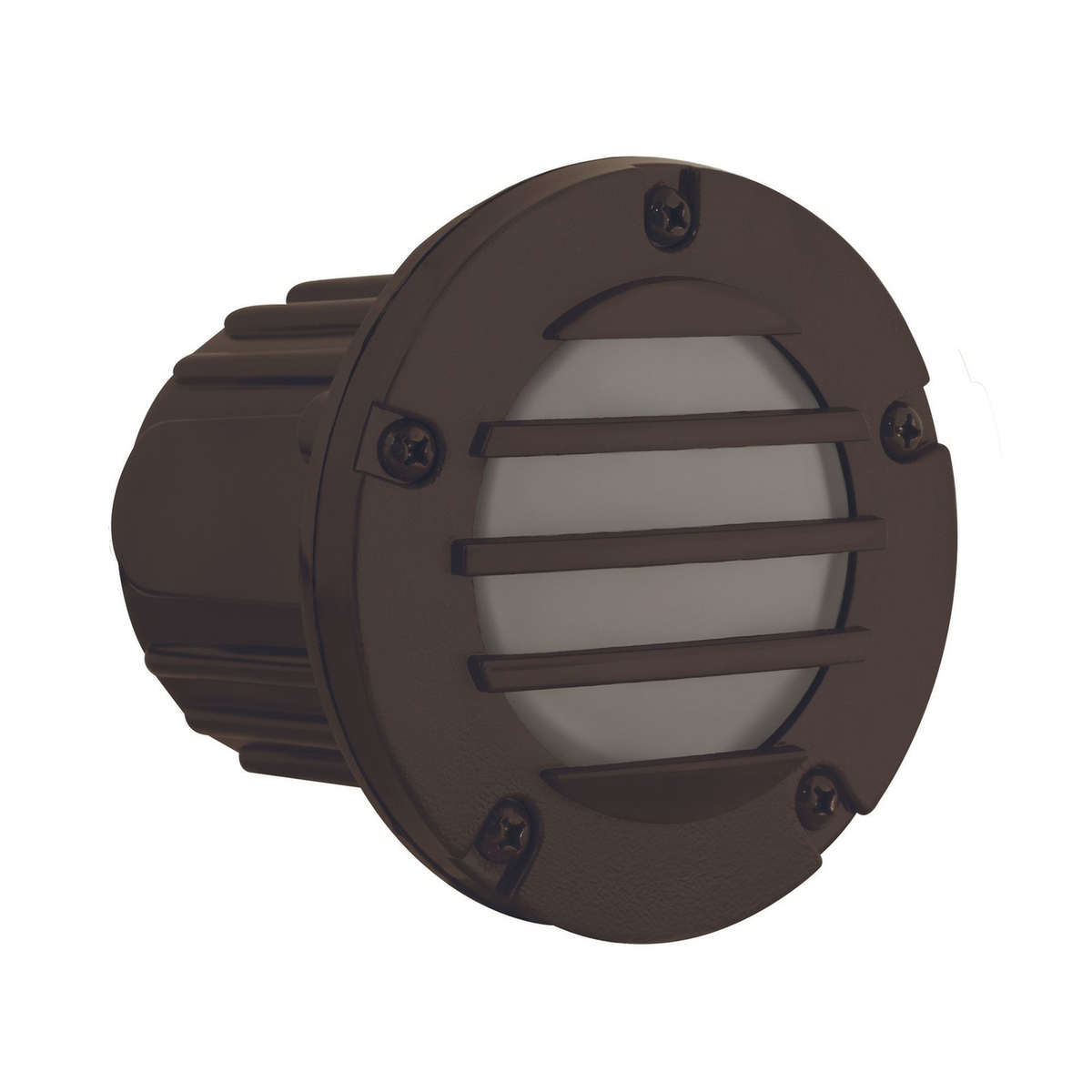

This injection-molded composite 4-louver step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 350 lumens with a 15° Narrow Beam Angle. A remote 12V transformer is required.
Features
-
- Hooded, louvered step light
- Frosted, heat-resistant glass lens for glare control and even illumination
- Injection-molded composite housing and sealed face plate engineered for high UV stability
- Finish: Bronze (black also available)
- Includes MR16 LED lamp: 5W, 350 Lumens, 2700K, CRI 80, 50,000-hour lifetime; 15° narrow beam angle
- LED operating range 9–17V; requires a remote 12V transformer
- Top-grade adjustable ceramic bi-pin socket with retention clip and Teflon-jacketed lead
- Prewired with 3 ft 18-2 SJT-W direct-burial, water-resistant cord for in-ground or concrete installations

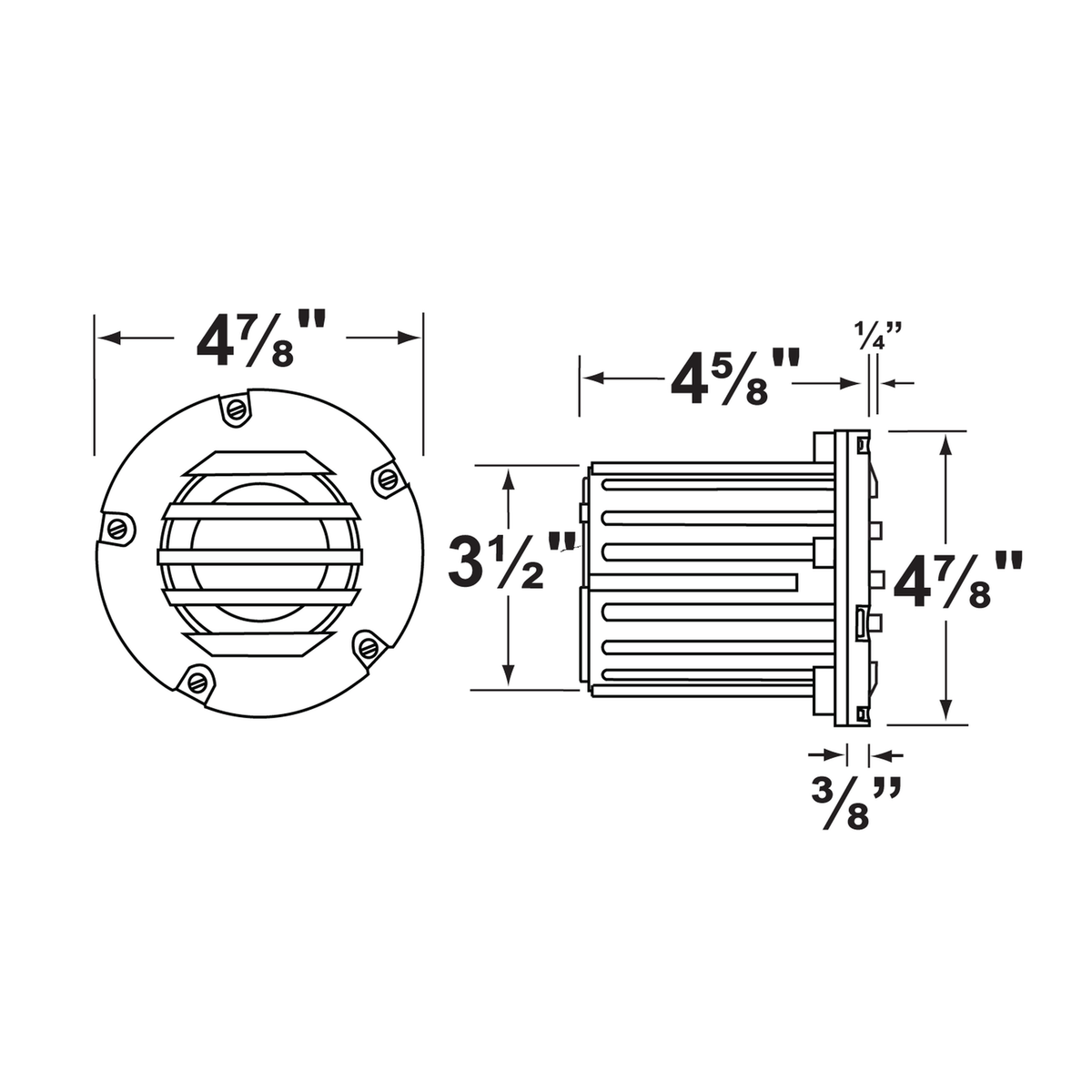

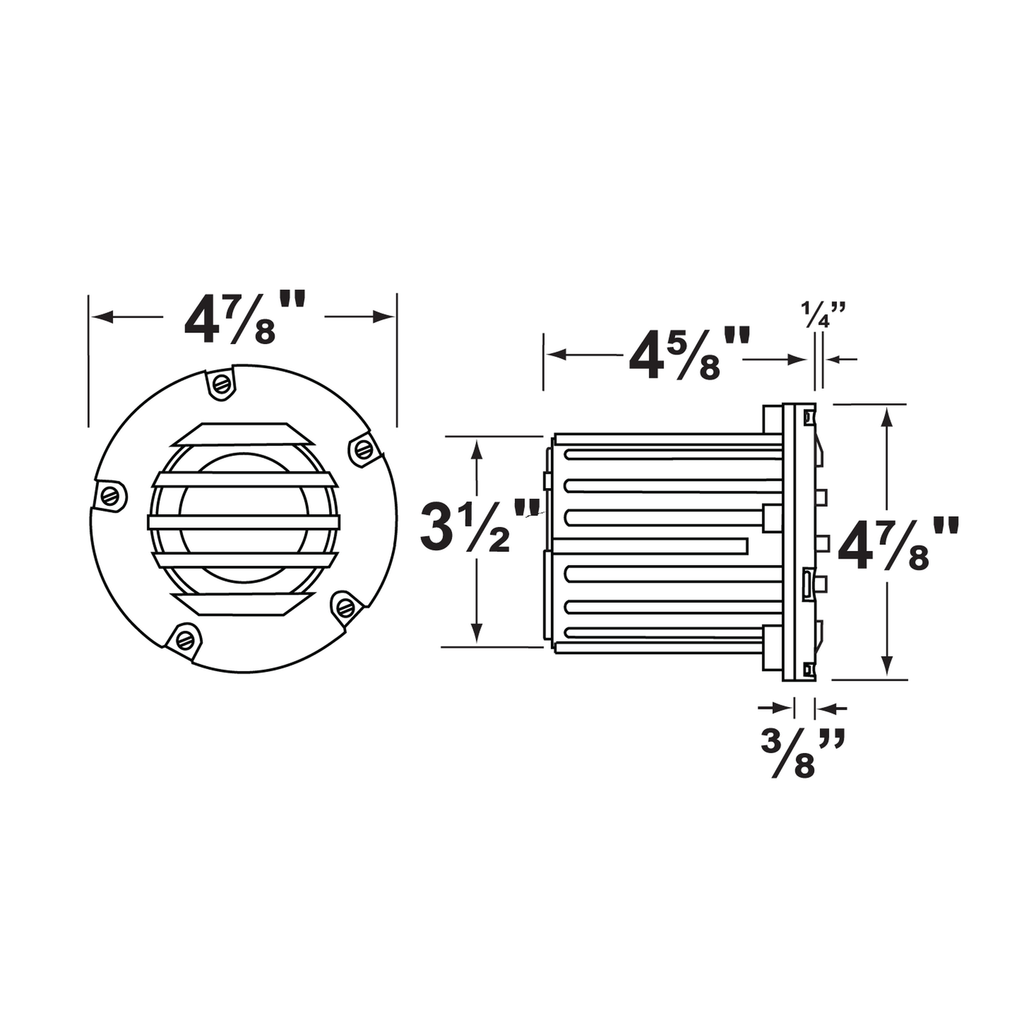

- Dimensions: approximately 4-7/8" Dia x 6-1/8" L
- ETL listed
- Warranty: limited 10-year on fixture housing; 5-year manufacturer warranty on lamp
This injection-molded composite 4-louver step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 350 lumens with a 15° Narrow Beam Angle. A remote 12V transformer is required.
Features
-
- Hooded, louvered step light
- Frosted, heat-resistant glass lens for glare control and even illumination
- Injection-molded composite housing and sealed face plate engineered for high UV stability
- Finish: Bronze (black also available)
- Includes MR16 LED lamp: 5W, 350 Lumens, 2700K, CRI 80, 50,000-hour lifetime; 15° narrow beam angle
- LED operating range 9–17V; requires a remote 12V transformer
- Top-grade adjustable ceramic bi-pin socket with retention clip and Teflon-jacketed lead
- Prewired with 3 ft 18-2 SJT-W direct-burial, water-resistant cord for in-ground or concrete installations
- Dimensions: approximately 4-7/8" Dia x 6-1/8" L
- ETL listed
- Warranty: limited 10-year on fixture housing; 5-year manufacturer warranty on lamp
Overview
This injection-molded composite 4-louver step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 350 lumens with a 15° Narrow Beam Angle. A remote 12V transformer is required.
Features
-
- Hooded, louvered step light
- Frosted, heat-resistant glass lens for glare control and even illumination
- Injection-molded composite housing and sealed face plate engineered for high UV stability
- Finish: Bronze (black also available)
- Includes MR16 LED lamp: 5W, 350 Lumens, 2700K, CRI 80, 50,000-hour lifetime; 15° narrow beam angle
- LED operating range 9–17V; requires a remote 12V transformer
- Top-grade adjustable ceramic bi-pin socket with retention clip and Teflon-jacketed lead
- Prewired with 3 ft 18-2 SJT-W direct-burial, water-resistant cord for in-ground or concrete installations
- Dimensions: approximately 4-7/8" Dia x 6-1/8" L
- ETL listed
- Warranty: limited 10-year on fixture housing; 5-year manufacturer warranty on lamp
Specifications
| 4-Louver Glass Lens Step Light, In-Ground, 5 Inch, Bronze, 15° Narrow Beam Angle, 350 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 350LM |
| Efficacy | 70LM/W |
| Wattage | 5W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 15° Narrow Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | Approx. 4-7/8" Dia. x 6-1/8" L |
| Finish | Bronze |
| Material | Injection-molded composite |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited 10-year warranty on fixture housing against manufacturer's defects; five (5) year manufacturer's warranty on the LED lamp |
