4-Louver Glass Lens Step Light, In-Ground, 5 Inch, Bronze, 45° Wide Beam Angle, 270 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

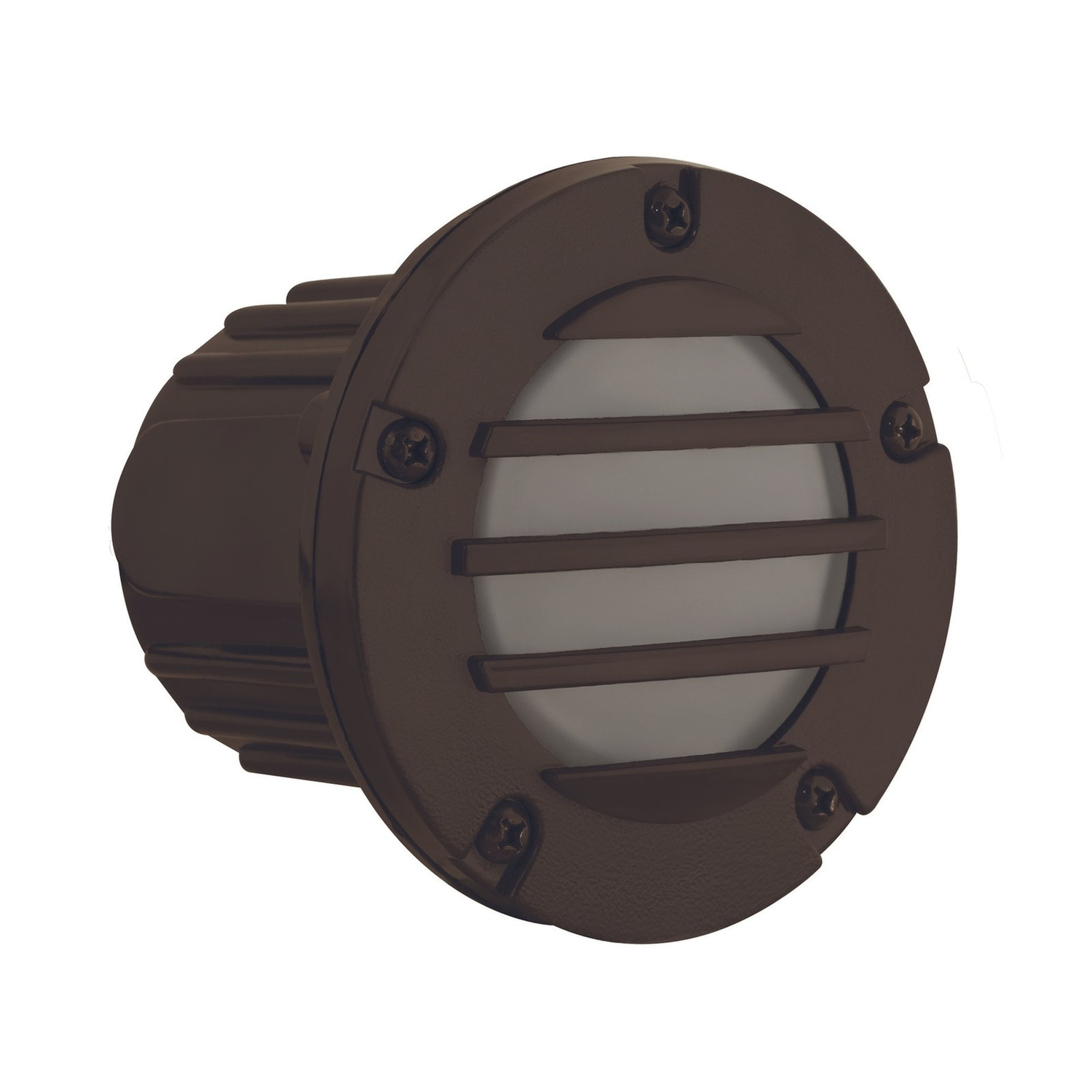

This injection-molded composite 4-louver step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 270 lumens with a 45° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Hooded louvered step light with frosted heat-resistant glass lens in bronze finish
- Injection-molded composite housing and face plate for high UV stability; face plate sealed to housing for a weather-tight installation
- Finish options: Bronze or Black
- Bundled MR16 LED lamp: 3.5W, 270 Lumens, 2700K, CRI 80, 45° beam angle, dimmable, 50,000-hour lifetime
- Top-grade adjustable ceramic bi-pin socket with retention clip and Teflon-jacketed lead
- Silicone O-ring gasket for weather-tight seal
- Requires remote 12V transformer; electrical operating range 9–17V
- Prewired with 3 ft 18-2 SJT-W direct-burial water-resistant cord
- Mounting: In-ground direct burial or concrete encasement; concrete pour kit recommended

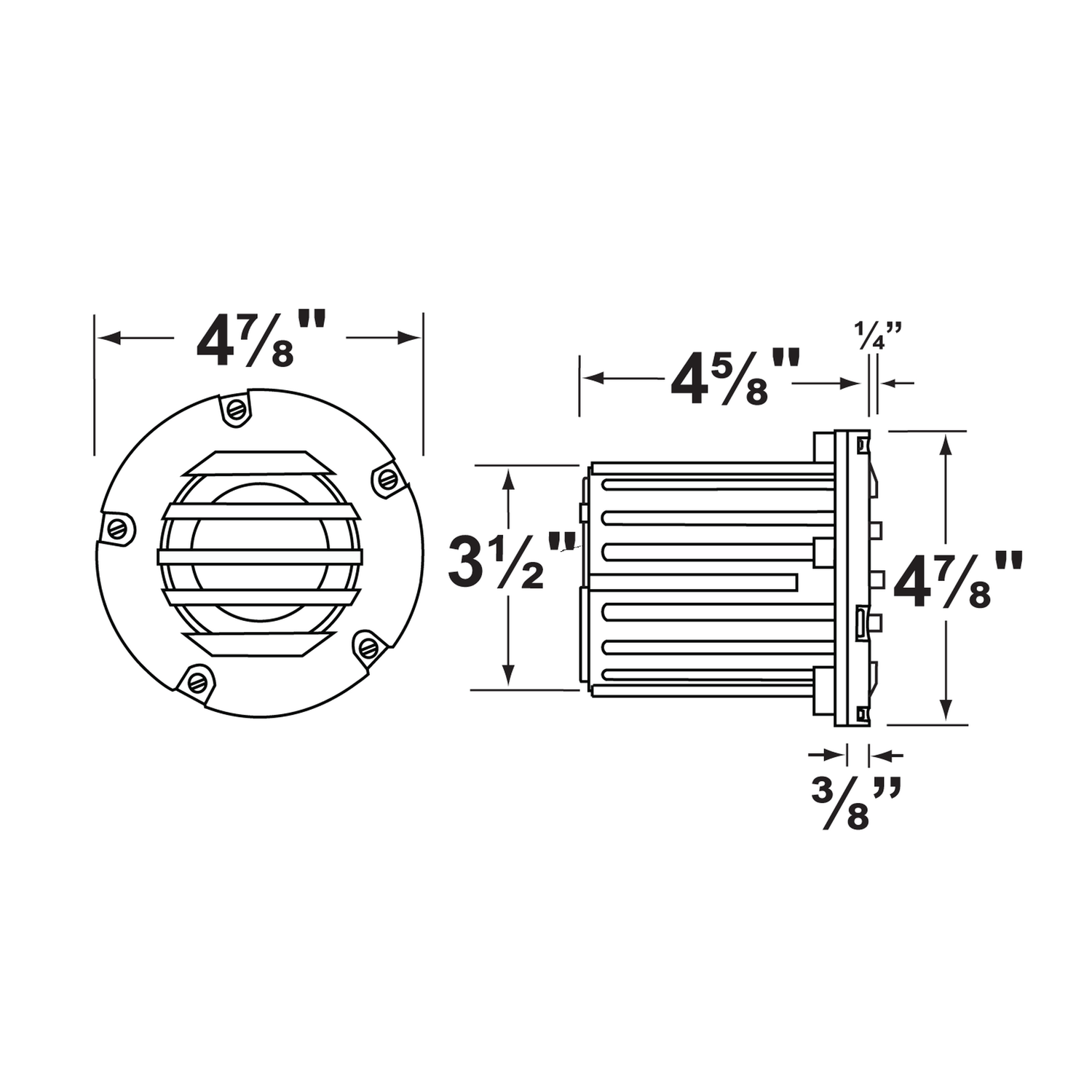

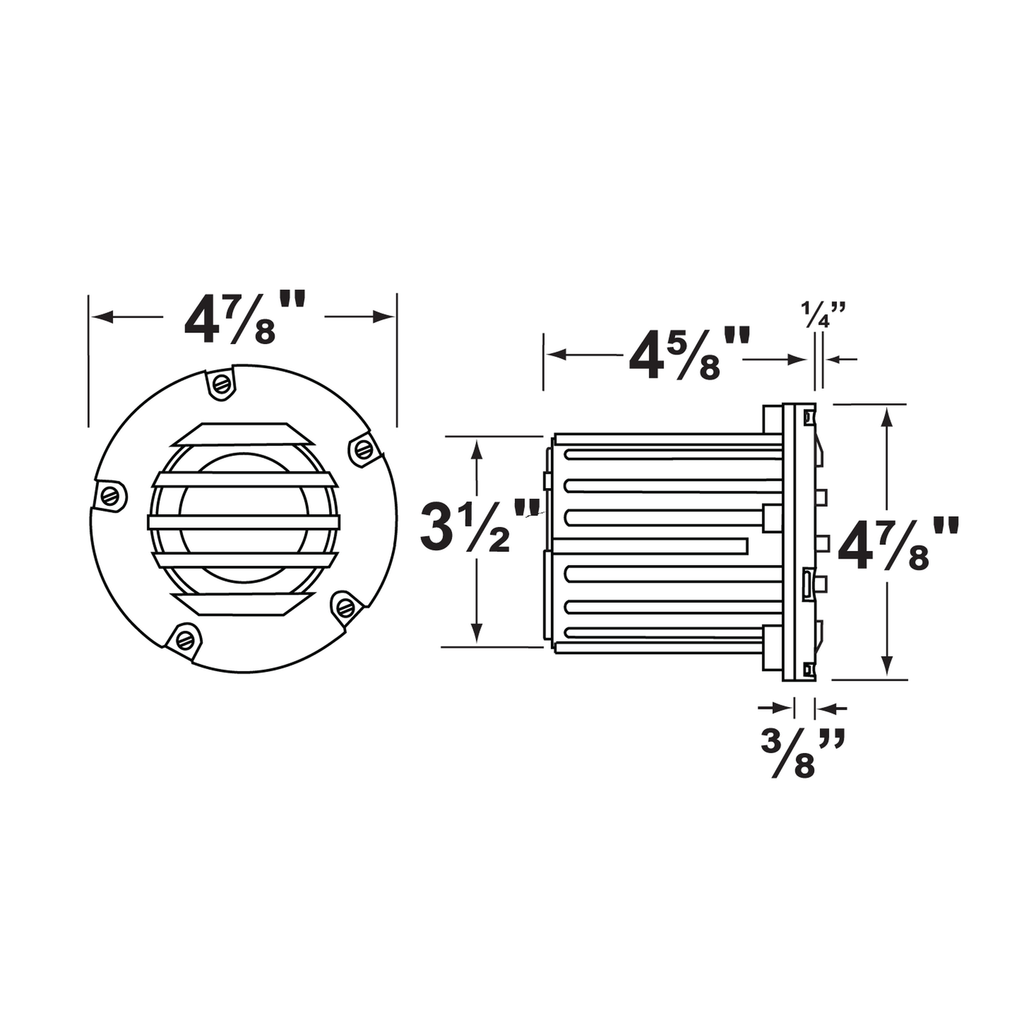

- Dimensions: approx 4-7/8" Dia x 6-1/8" L
This injection-molded composite 4-louver step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 270 lumens with a 45° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Hooded louvered step light with frosted heat-resistant glass lens in bronze finish
- Injection-molded composite housing and face plate for high UV stability; face plate sealed to housing for a weather-tight installation
- Finish options: Bronze or Black
- Bundled MR16 LED lamp: 3.5W, 270 Lumens, 2700K, CRI 80, 45° beam angle, dimmable, 50,000-hour lifetime
- Top-grade adjustable ceramic bi-pin socket with retention clip and Teflon-jacketed lead
- Silicone O-ring gasket for weather-tight seal
- Requires remote 12V transformer; electrical operating range 9–17V
- Prewired with 3 ft 18-2 SJT-W direct-burial water-resistant cord
- Mounting: In-ground direct burial or concrete encasement; concrete pour kit recommended
- Dimensions: approx 4-7/8" Dia x 6-1/8" L
Overview
This injection-molded composite 4-louver step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 270 lumens with a 45° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Hooded louvered step light with frosted heat-resistant glass lens in bronze finish
- Injection-molded composite housing and face plate for high UV stability; face plate sealed to housing for a weather-tight installation
- Finish options: Bronze or Black
- Bundled MR16 LED lamp: 3.5W, 270 Lumens, 2700K, CRI 80, 45° beam angle, dimmable, 50,000-hour lifetime
- Top-grade adjustable ceramic bi-pin socket with retention clip and Teflon-jacketed lead
- Silicone O-ring gasket for weather-tight seal
- Requires remote 12V transformer; electrical operating range 9–17V
- Prewired with 3 ft 18-2 SJT-W direct-burial water-resistant cord
- Mounting: In-ground direct burial or concrete encasement; concrete pour kit recommended
- Dimensions: approx 4-7/8" Dia x 6-1/8" L
Specifications
| 4-Louver Glass Lens Step Light, In-Ground, 5 Inch, Bronze, 45° Wide Beam Angle, 270 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 270LM |
| Efficacy | 77.1LM/W |
| Wattage | 3.5W |
| Wattage Equivalency | 25W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 45° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Included Components | COB LED |
| Mount Type | Surface Mount |
| Dimensions | Approx. 4-7/8" Dia. x 6-1/8" L |
| Finish | Bronze |
| Material | Injection-molded composite |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited 10-year warranty on fixture housing against manufacturer's defects; limited five (5)-year manufacturer's warranty on the LED lamp |
