- Lumens: 450LM
- Voltage: Low Voltage
- Wattage: 5W
- Dimming: Dimmable
- Warranty: Limited 10-year warranty on fixture housing against manufacturer's defects, Five-year warranty on lamp

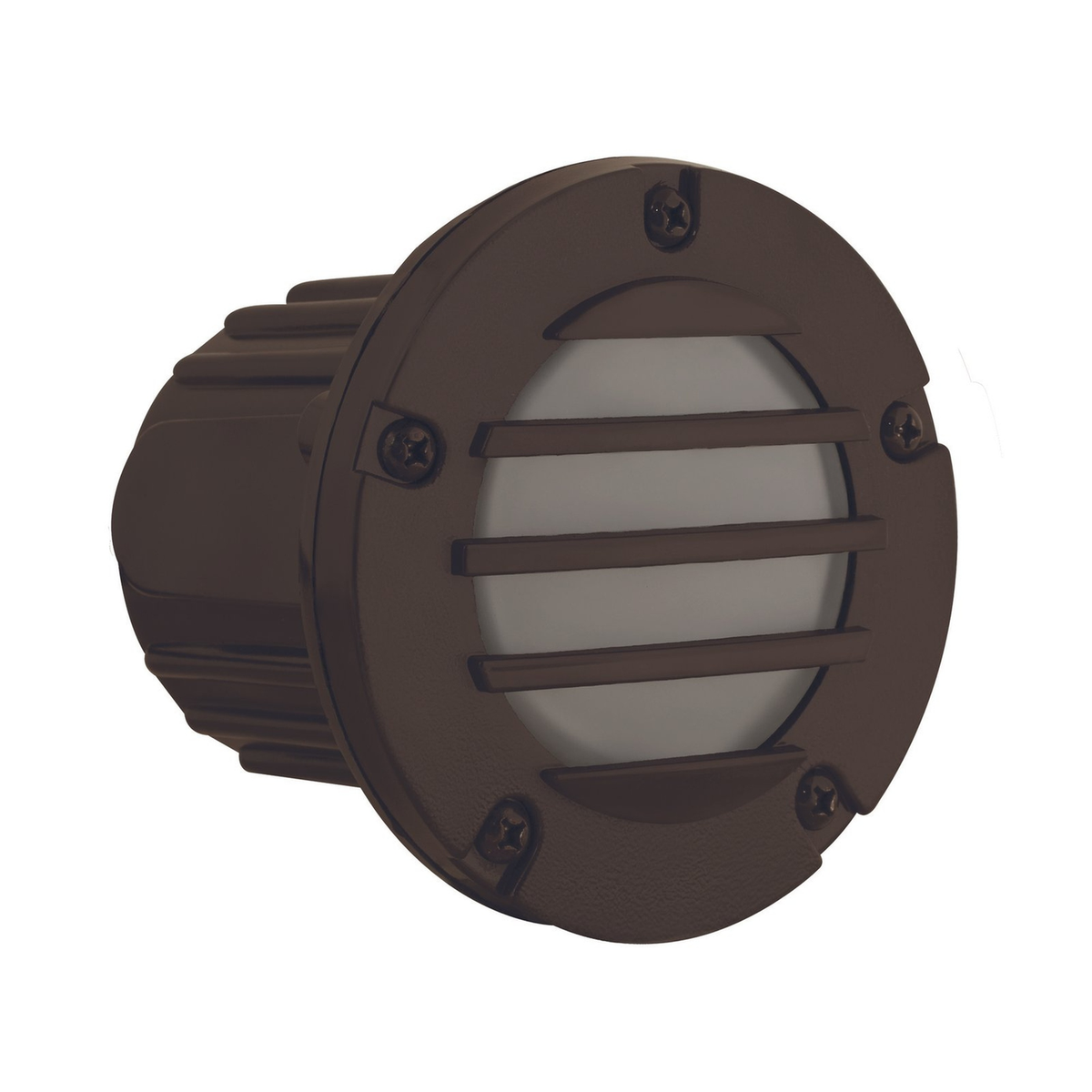

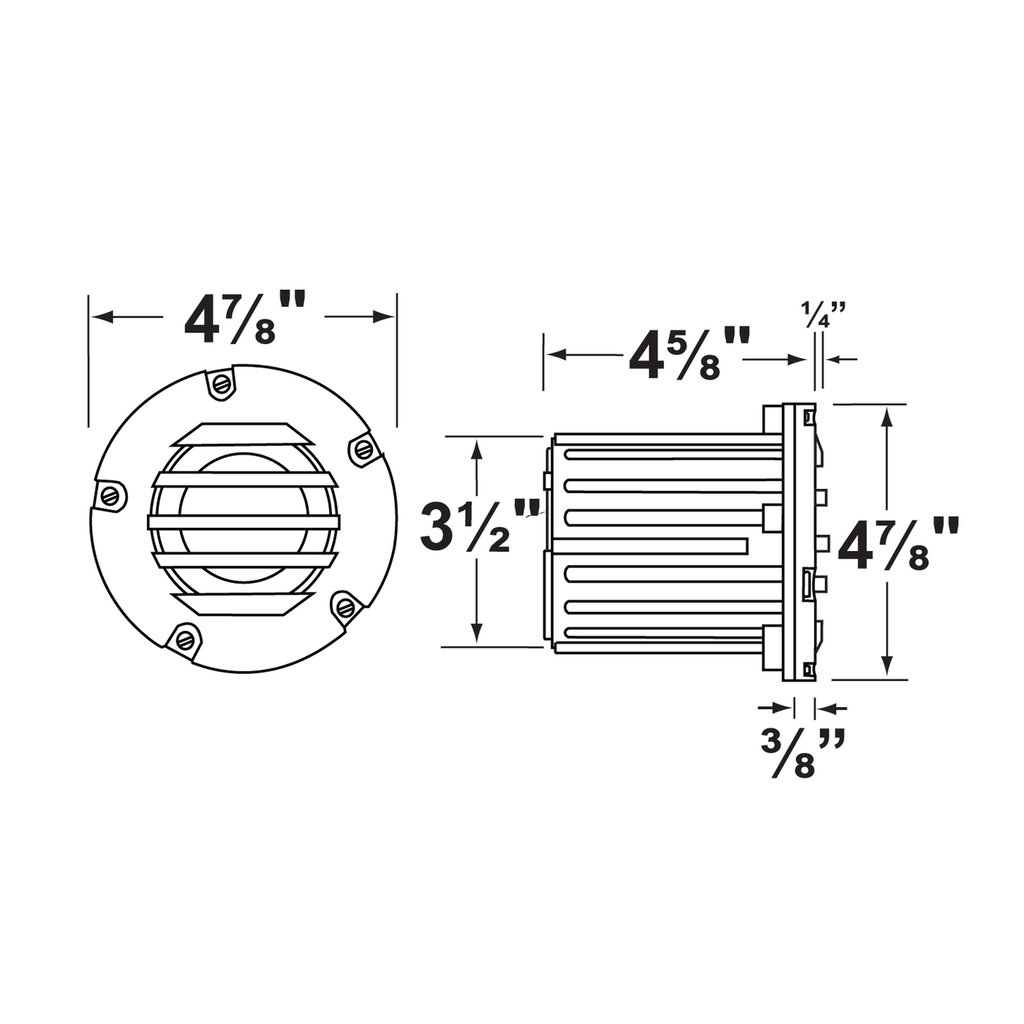

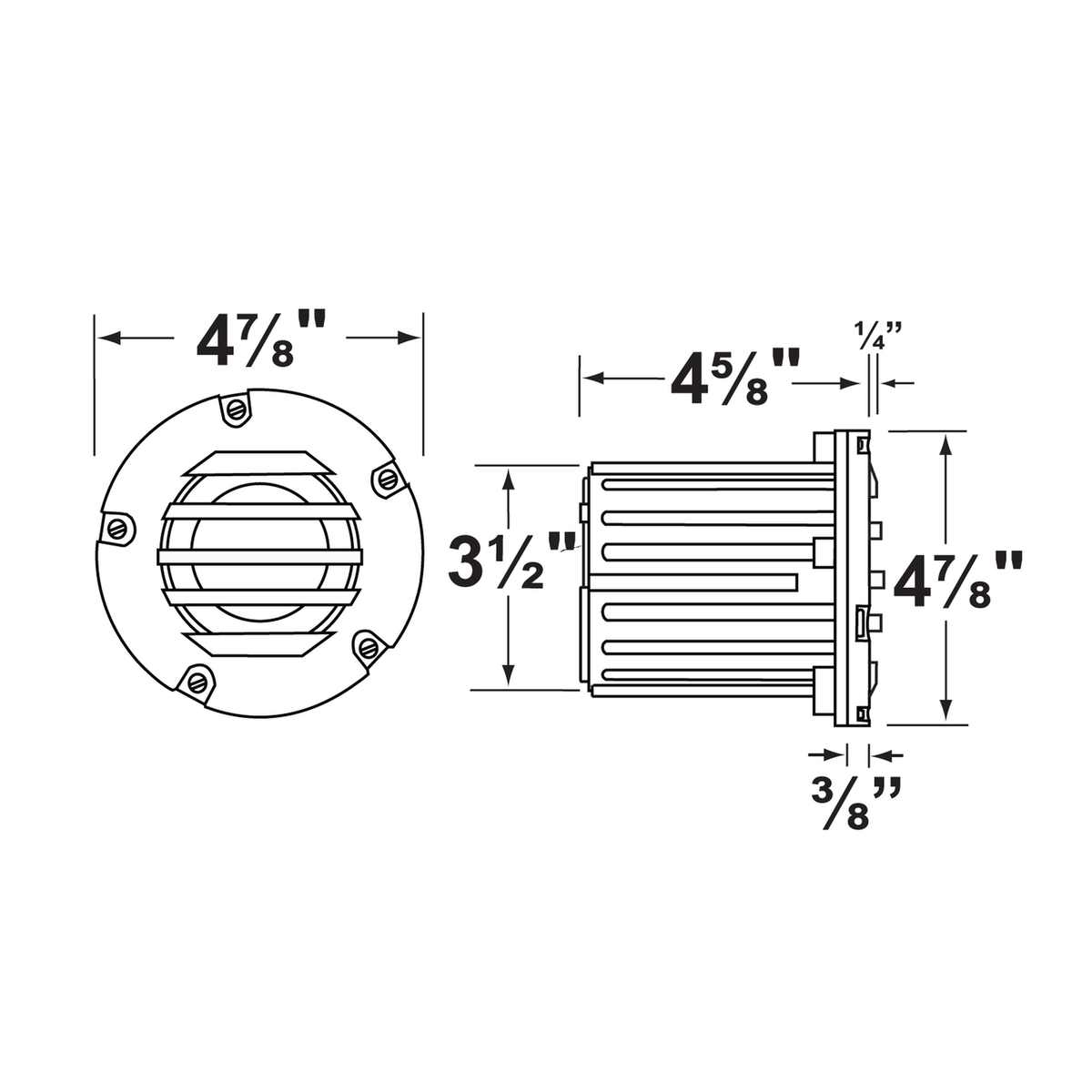

This injection-molded composite 4-louver step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 450 lumens with a 38° Beam Angle. A remote 12V transformer is required.
Features
-
- Finish: Bronze
- Hooded louvered step light with frosted heat-resistant glass lens and silicone O-ring for a weather-tight seal
- Injection-molded composite housing and face plate for high UV stability; face plate sealed to housing
- Includes 5W LED MR16 COB lamp: 450 Lumens, 2700K, CRI 80, 38° beam angle, dimmable; equivalent to a 50W halogen
- LED operating range 9–17V; requires remote 12V transformer
- Top-grade adjustable ceramic bi-pin socket with retention clip and Teflon-jacketed lead
- Prewired with 3 ft 18-2 SJT-W direct-burial water-resistant cord
- Accessories available: silicone-filled wire nut CX-854 and quick-locking connectors CX-LOC
- Mounting: in-ground direct burial or concrete encasement; concrete pour kit CX-237 recommended
- Optional MR16 lenses and honeycomb louver require CX-238 holder; color lenses and spread/prismatic options available
- Warranty: limited 10-year on fixture housing; 5-year manufacturer warranty on included lamp
