Brass Louvered Glass Lens Round Step Light, In-Ground, 5 Inch, Antique Bronze, 15° Narrow Beam Angle, 450 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

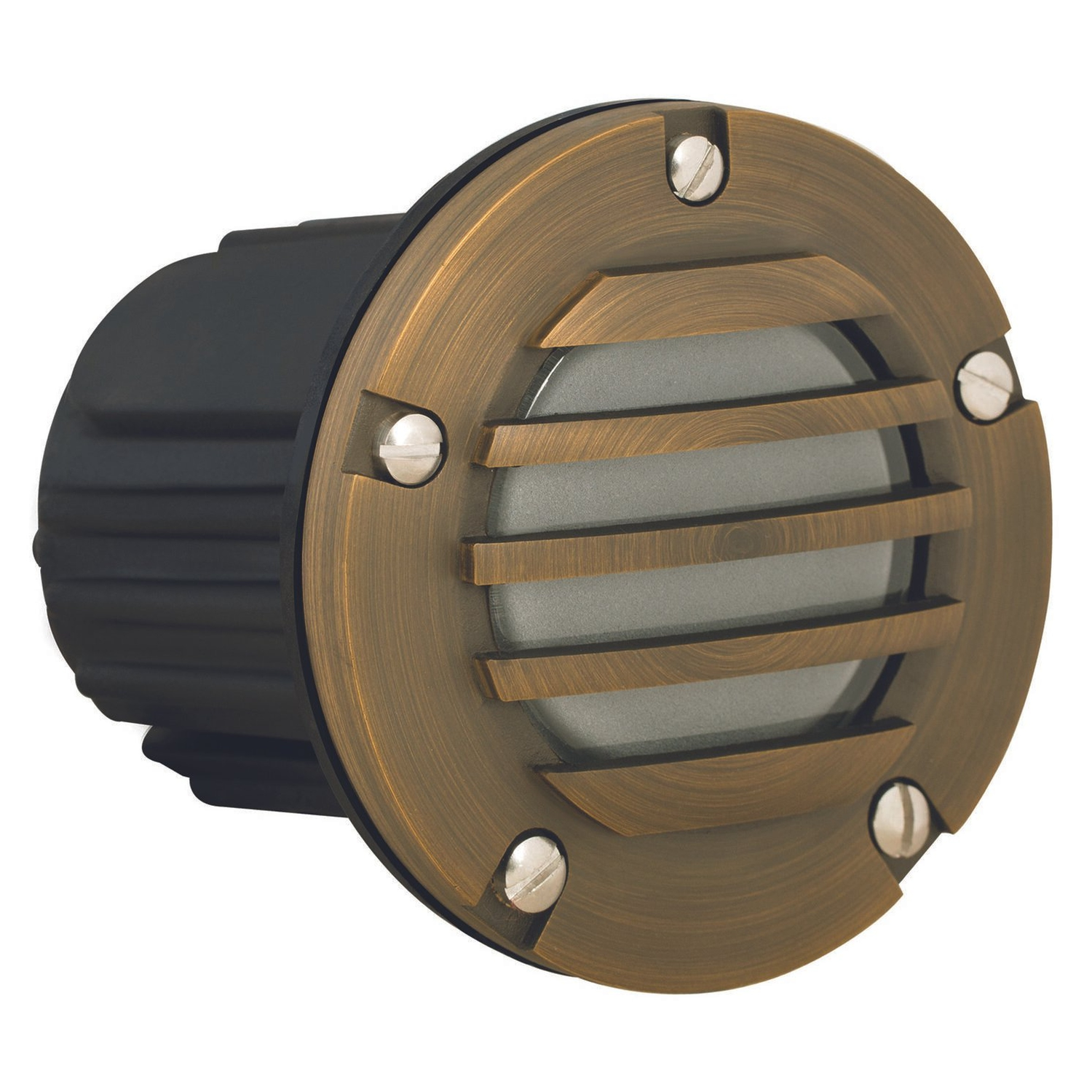

This Antique Bronze brass louvered round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 5W MR16 COB LED lamp delivers 450 lumens at 2700K. This exact sold configuration has a 15° Narrow Beam Angle.
Features
-
- Louvered step/brick light with frosted heat-resistant flat glass lens
- Dimensions: 4-7/8" Dia x 4-5/8" L
- Antique Bronze cast brass faceplate with injection-molded composite housing for high UV stability
- Includes 5W MR16 LED lamp: 450 Lumens, 2700K, 15° spot beam angle, CRI 80, dimmable, rated lamp life approx 50,000 hours
- Operating voltage 9–17V; designed for 12V systems
- Top-grade adjustable ceramic bi-pin socket with retention clip; supports up to 50W max halogen equivalent; socket tilt ±25°
- Weather-tight sealing with silicone O-ring gasket
- Prewired 3 ft 18-2 SJT-W direct-burial cord
- Surface-mount design for recessed wall and step use
- Concrete pour kit CX-237 recommended for concrete installations
This Antique Bronze brass louvered round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 5W MR16 COB LED lamp delivers 450 lumens at 2700K. This exact sold configuration has a 15° Narrow Beam Angle.
Features
-
- Louvered step/brick light with frosted heat-resistant flat glass lens
- Dimensions: 4-7/8" Dia x 4-5/8" L
- Antique Bronze cast brass faceplate with injection-molded composite housing for high UV stability
- Includes 5W MR16 LED lamp: 450 Lumens, 2700K, 15° spot beam angle, CRI 80, dimmable, rated lamp life approx 50,000 hours
- Operating voltage 9–17V; designed for 12V systems
- Top-grade adjustable ceramic bi-pin socket with retention clip; supports up to 50W max halogen equivalent; socket tilt ±25°
- Weather-tight sealing with silicone O-ring gasket
- Prewired 3 ft 18-2 SJT-W direct-burial cord
- Surface-mount design for recessed wall and step use
- Concrete pour kit CX-237 recommended for concrete installations
Overview
This Antique Bronze brass louvered round step light is a low-voltage fixture designed for in-ground direct-burial installation, with a 4-7/8 Inch customer-facing plate. The included 5W MR16 COB LED lamp delivers 450 lumens at 2700K. This exact sold configuration has a 15° Narrow Beam Angle.
Features
-
- Louvered step/brick light with frosted heat-resistant flat glass lens
- Dimensions: 4-7/8" Dia x 4-5/8" L
- Antique Bronze cast brass faceplate with injection-molded composite housing for high UV stability
- Includes 5W MR16 LED lamp: 450 Lumens, 2700K, 15° spot beam angle, CRI 80, dimmable, rated lamp life approx 50,000 hours
- Operating voltage 9–17V; designed for 12V systems
- Top-grade adjustable ceramic bi-pin socket with retention clip; supports up to 50W max halogen equivalent; socket tilt ±25°
- Weather-tight sealing with silicone O-ring gasket
- Prewired 3 ft 18-2 SJT-W direct-burial cord
- Surface-mount design for recessed wall and step use
- Concrete pour kit CX-237 recommended for concrete installations
Specifications
| Brass Louvered Glass Lens Round Step Light, In-Ground, 5 Inch, Antique Bronze, 15° Narrow Beam Angle, 450 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 450LM |
| Efficacy | 94LM/W |
| Wattage | 5W |
| Wattage Equivalency | 50W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 15° Narrow Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 4-5/8" L |
| Finish | Antique Bronze |
| Material | Cast/Die-cast brass faceplate, injection-molded composite housing |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited warranty on composite housing per manufacturer terms; five (5) year limited warranty on LED module |
