Brass Mini Single Head Path Light, 24 Inch Stem, Silver Plated, 15° Narrow Beam Angle, 450 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

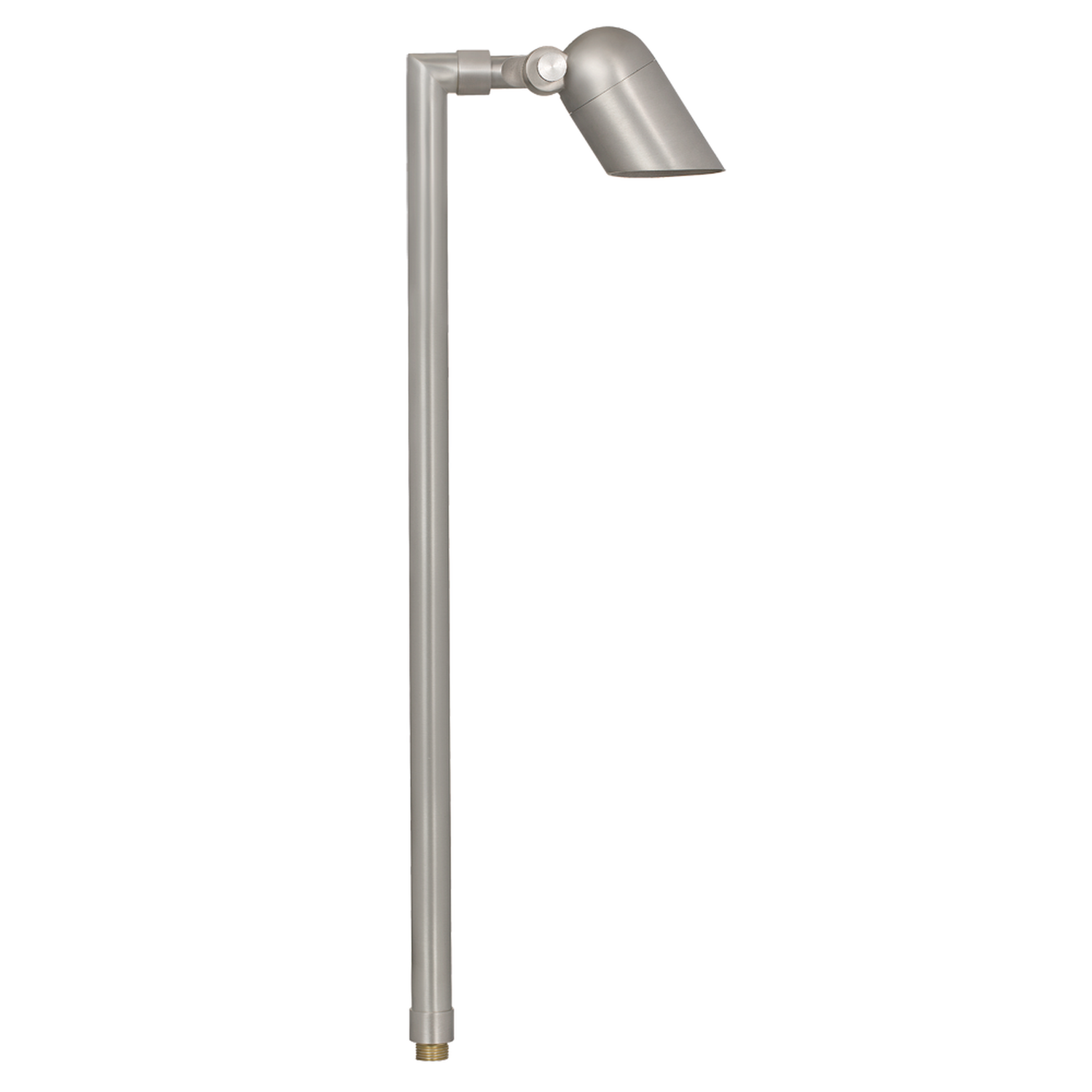

This mini single-head path light is built from corrosion-resistant cast brass with a Silver Plated finish, a clear heat-resistant convex glass lens, and an adjustable cast brass knuckle with thumb screw for precise aiming. The head measures approximately 2-1/2" Dia., and this configuration uses a 24" solid brass stem with 1/2" NPT. This 12V fixture is prewired with a 3 ft 18-2 SPT2-W direct-burial cord and includes an injection-molded ground spike. It ships with a 5W MR16 LED lamp delivering 450 Lumens at a 15° beam angle, 80 CRI, and a rated life of 50,000 hours. Ideal for lining garden walkways and driveways where focused ground-level illumination safely guides foot traffic.
Features
-
- Mini single-head path light with corrosion-resistant cast brass shroud and adjustable cast brass knuckle with thumb screw
- Silver Plated finish using a natural toning process
- Clear heat-resistant convex glass lens
- Top-grade fixed ceramic bi-pin socket with retention clip
- Head approx 2-1/2" Dia
- Overall height 24" with 24" solid brass stem and 1/2" NPT on bottom
- Prewired with 3 ft 18-2 SPT2-W direct-burial cord; injection-molded ground spike with 1/2" NPT female hub supplied
- 12V fixture requires a remote 12V transformer; LED lamp operating range 9–17V
- 50W max for halogen
- Includes 5W MR16 LED lamp: 450 Lumens, 15° spot beam, dimmable, CRI 80, approx 90 Lumens/W efficacy, 50,000-hour rated life; 5-year manufacturer warranty for lamps
This mini single-head path light is built from corrosion-resistant cast brass with a Silver Plated finish, a clear heat-resistant convex glass lens, and an adjustable cast brass knuckle with thumb screw for precise aiming. The head measures approximately 2-1/2" Dia., and this configuration uses a 24" solid brass stem with 1/2" NPT. This 12V fixture is prewired with a 3 ft 18-2 SPT2-W direct-burial cord and includes an injection-molded ground spike. It ships with a 5W MR16 LED lamp delivering 450 Lumens at a 15° beam angle, 80 CRI, and a rated life of 50,000 hours. Ideal for lining garden walkways and driveways where focused ground-level illumination safely guides foot traffic.
Features
-
- Mini single-head path light with corrosion-resistant cast brass shroud and adjustable cast brass knuckle with thumb screw
- Silver Plated finish using a natural toning process
- Clear heat-resistant convex glass lens
- Top-grade fixed ceramic bi-pin socket with retention clip
- Head approx 2-1/2" Dia
- Overall height 24" with 24" solid brass stem and 1/2" NPT on bottom
- Prewired with 3 ft 18-2 SPT2-W direct-burial cord; injection-molded ground spike with 1/2" NPT female hub supplied
- 12V fixture requires a remote 12V transformer; LED lamp operating range 9–17V
- 50W max for halogen
- Includes 5W MR16 LED lamp: 450 Lumens, 15° spot beam, dimmable, CRI 80, approx 90 Lumens/W efficacy, 50,000-hour rated life; 5-year manufacturer warranty for lamps
Overview
This mini single-head path light is built from corrosion-resistant cast brass with a Silver Plated finish, a clear heat-resistant convex glass lens, and an adjustable cast brass knuckle with thumb screw for precise aiming. The head measures approximately 2-1/2" Dia., and this configuration uses a 24" solid brass stem with 1/2" NPT. This 12V fixture is prewired with a 3 ft 18-2 SPT2-W direct-burial cord and includes an injection-molded ground spike. It ships with a 5W MR16 LED lamp delivering 450 Lumens at a 15° beam angle, 80 CRI, and a rated life of 50,000 hours. Ideal for lining garden walkways and driveways where focused ground-level illumination safely guides foot traffic.
Features
-
- Mini single-head path light with corrosion-resistant cast brass shroud and adjustable cast brass knuckle with thumb screw
- Silver Plated finish using a natural toning process
- Clear heat-resistant convex glass lens
- Top-grade fixed ceramic bi-pin socket with retention clip
- Head approx 2-1/2" Dia
- Overall height 24" with 24" solid brass stem and 1/2" NPT on bottom
- Prewired with 3 ft 18-2 SPT2-W direct-burial cord; injection-molded ground spike with 1/2" NPT female hub supplied
- 12V fixture requires a remote 12V transformer; LED lamp operating range 9–17V
- 50W max for halogen
- Includes 5W MR16 LED lamp: 450 Lumens, 15° spot beam, dimmable, CRI 80, approx 90 Lumens/W efficacy, 50,000-hour rated life; 5-year manufacturer warranty for lamps
Specifications
| Brass Mini Single Head Path Light, 24 Inch Stem, Silver Plated, 15° Narrow Beam Angle, 450 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 450LM |
| Efficacy | 94LM/W |
| Wattage | 5W |
| Wattage Equivalency | 50W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80.0+ |
| Beam Angle | 15° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Ground Spike |
| Dimensions | 2-1/2" Dia. Head; H 24" |
| Finish | Silver Plated |
| Material | Corrosion-resistant cast brass |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited warranty on cast brass fixture housing per manufacturer terms; Five (5) years warranty on LED module |
