- Lumens: 120LM
- Voltage: Low Voltage
- Wattage: 1.5W
- Warranty: Limited lifetime fixture warranty; 5-year LED lamp warranty

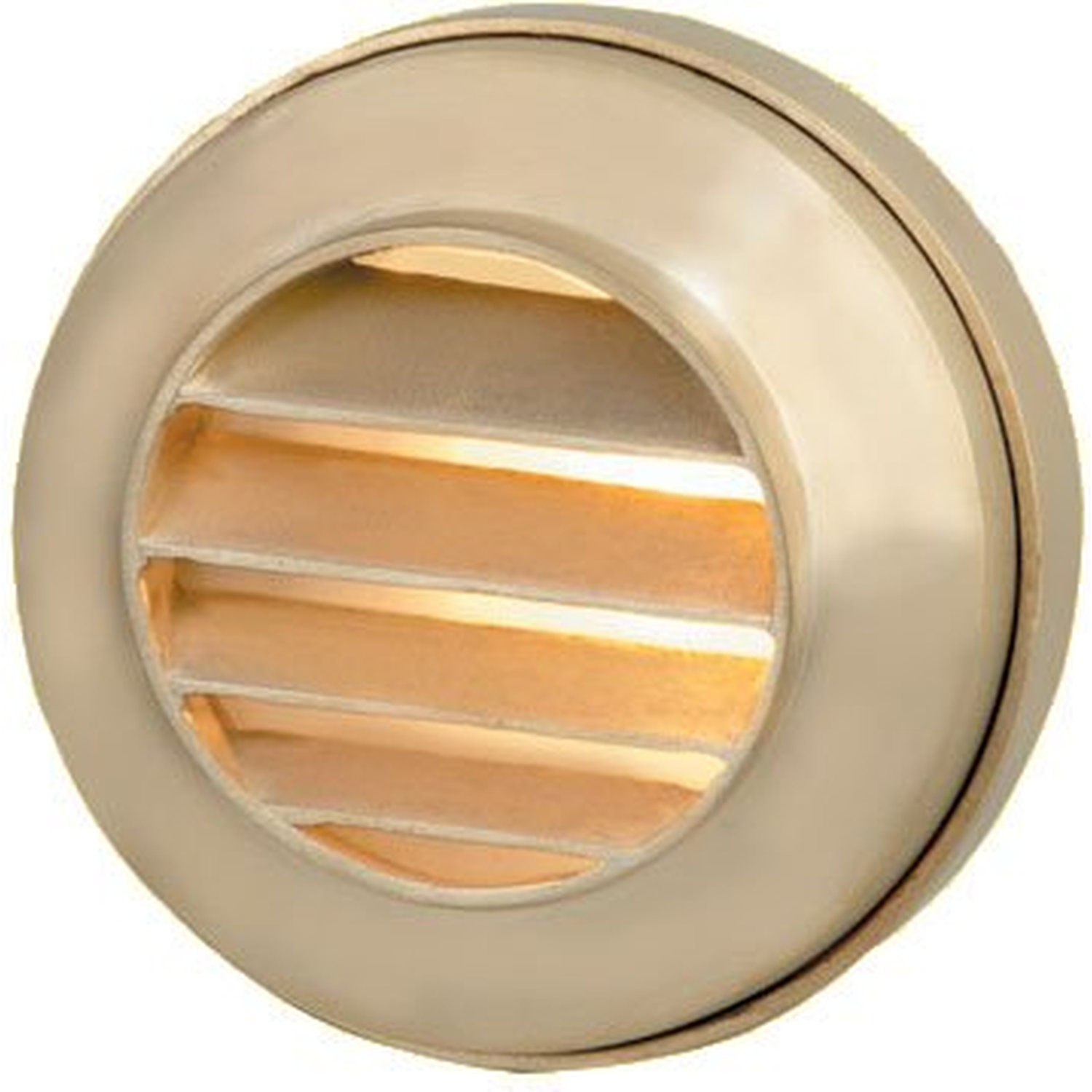

This architectural cast brass 4-louvered disc step light in Natural Brass is built from corrosion-resistant cast brass with a die-cast solid brass faceplate and a frosted, heat-resistant glass lens sealed with a silicone O-ring gasket for a weather-tight fit. It ships with a 1.5W T5 LED lamp delivering 120 Lumens at 2700K and a 12,000-hour life. Measuring 3-3/8" Dia. x 1-3/4" deep, the surface-mounted unit includes a mounting plate and pre-wired 18-2 direct-burial cord, and requires a remote 12V transformer. Ideal for illuminating outdoor stairways, entryways, and low-level pathways in residential and commercial settings.
Features
-
- Brass 4-louvered disc step light in Natural Brass finish
- Corrosion-resistant cast brass housing with die-cast solid brass faceplate
- Frosted heat-resistant flat glass lens with silicone O-ring gasket for weather-tight seal
- Includes T5 LED lamp: 1.5W, 120 Lumens, 2700K, approx 12,000-hour lamp life, ~10W halogen equivalency
- 12V T5 wedge socket rated 18W max
- LED operating voltage range 8–21V; requires a remote 12V transformer for operation
- Surface-mounted design with mounting plate and tool-free twist-to-lock relamping; installs using two screws through a 3/8" hole
- Compact footprint: 3-3/8" Dia x 1-3/4" deep
- Prewired with 18-2 SPT1-W direct-burial cord
- Limited lifetime warranty on fixture
- 5-year limited warranty on LED lamp
