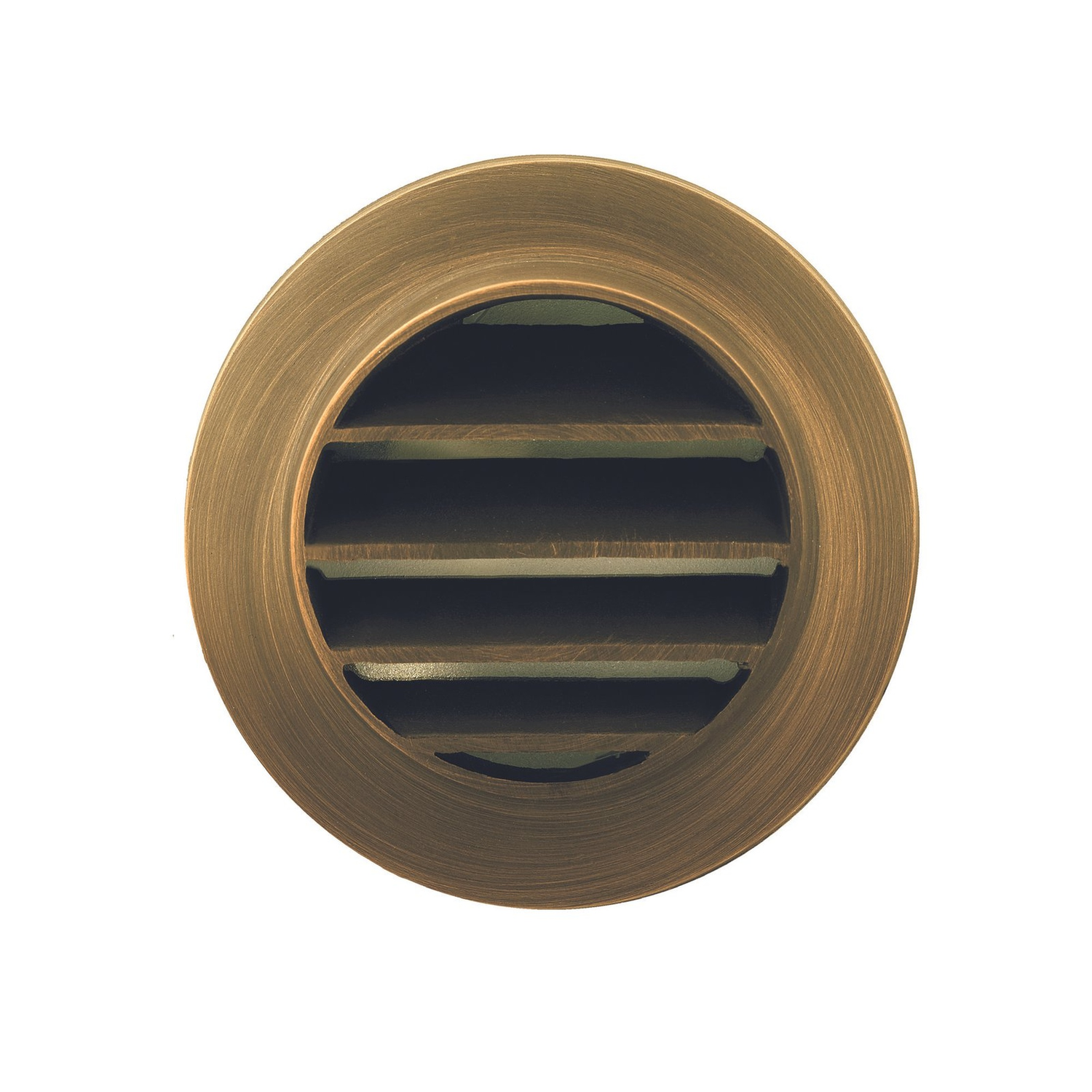

Brass 4-Louver Disc Step Light, Surface-Mount, 3.5 Inch, Antique Bronze, 210 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This architectural cast brass 4-louvered disc surface step light is crafted from corrosion-resistant cast brass with a die-cast solid brass faceplate and frosted heat-resistant flat glass. The surface-mount fixture ships with a T3 LED lamp delivering 2W, 200-210 Lumens, with warm-white output and a 25,000-hour life, and requires a remote 12V transformer. Measuring 3-3/8" (85 mm) Dia. x 1-3/4" (44 mm) deep, it features a silicone O-ring weather seal plus twist-to-lock, tool-free relamping. Finished in Antique Bronze, it suits a range of outdoor aesthetics. Ideal for illuminating outdoor steps, deck edges, and garden pathways with safe, low-profile accent lighting across residential and commercial landscapes.
Features
-
- Brass 4-louvered disc surface step light for step and brick applications
- Corrosion-resistant cast brass housing with die-cast solid brass faceplate; silicone O-ring gasket for weather-tight seal
- Finish: Antique Bronze natural toning process (other finishes available: Brass, Gun Metal, Silver)
- Frosted heat-resistant flat glass lens for even illumination
- Includes T3 LED lamp: 2W, 200-210 Lumens, 25,000-hour life; 20W halogen equivalent
- Requires remote 12V transformer; LED operating voltage range 8–21V
- Prewired with 18-2 SPT1-W direct-burial cord; includes surface-mount plate for concealed wiring through a 3/8" hole
- Twist-to-lock function and tool-free relamping for quick maintenance
- Dimensions: 3-3/8" (85 mm) Dia x 1-3/4" (44 mm) D; operating temperature range -4°F to 104°F
This architectural cast brass 4-louvered disc surface step light is crafted from corrosion-resistant cast brass with a die-cast solid brass faceplate and frosted heat-resistant flat glass. The surface-mount fixture ships with a T3 LED lamp delivering 2W, 200-210 Lumens, with warm-white output and a 25,000-hour life, and requires a remote 12V transformer. Measuring 3-3/8" (85 mm) Dia. x 1-3/4" (44 mm) deep, it features a silicone O-ring weather seal plus twist-to-lock, tool-free relamping. Finished in Antique Bronze, it suits a range of outdoor aesthetics. Ideal for illuminating outdoor steps, deck edges, and garden pathways with safe, low-profile accent lighting across residential and commercial landscapes.
Features
-
- Brass 4-louvered disc surface step light for step and brick applications
- Corrosion-resistant cast brass housing with die-cast solid brass faceplate; silicone O-ring gasket for weather-tight seal
- Finish: Antique Bronze natural toning process (other finishes available: Brass, Gun Metal, Silver)
- Frosted heat-resistant flat glass lens for even illumination
- Includes T3 LED lamp: 2W, 200-210 Lumens, 25,000-hour life; 20W halogen equivalent
- Requires remote 12V transformer; LED operating voltage range 8–21V
- Prewired with 18-2 SPT1-W direct-burial cord; includes surface-mount plate for concealed wiring through a 3/8" hole
- Twist-to-lock function and tool-free relamping for quick maintenance
- Dimensions: 3-3/8" (85 mm) Dia x 1-3/4" (44 mm) D; operating temperature range -4°F to 104°F
Overview
This architectural cast brass 4-louvered disc surface step light is crafted from corrosion-resistant cast brass with a die-cast solid brass faceplate and frosted heat-resistant flat glass. The surface-mount fixture ships with a T3 LED lamp delivering 2W, 200-210 Lumens, with warm-white output and a 25,000-hour life, and requires a remote 12V transformer. Measuring 3-3/8" (85 mm) Dia. x 1-3/4" (44 mm) deep, it features a silicone O-ring weather seal plus twist-to-lock, tool-free relamping. Finished in Antique Bronze, it suits a range of outdoor aesthetics. Ideal for illuminating outdoor steps, deck edges, and garden pathways with safe, low-profile accent lighting across residential and commercial landscapes.
Features
-
- Brass 4-louvered disc surface step light for step and brick applications
- Corrosion-resistant cast brass housing with die-cast solid brass faceplate; silicone O-ring gasket for weather-tight seal
- Finish: Antique Bronze natural toning process (other finishes available: Brass, Gun Metal, Silver)
- Frosted heat-resistant flat glass lens for even illumination
- Includes T3 LED lamp: 2W, 200-210 Lumens, 25,000-hour life; 20W halogen equivalent
- Requires remote 12V transformer; LED operating voltage range 8–21V
- Prewired with 18-2 SPT1-W direct-burial cord; includes surface-mount plate for concealed wiring through a 3/8" hole
- Twist-to-lock function and tool-free relamping for quick maintenance
- Dimensions: 3-3/8" (85 mm) Dia x 1-3/4" (44 mm) D; operating temperature range -4°F to 104°F
Specifications
| Brass 4-Louver Disc Step Light, Surface-Mount, 3.5 Inch, Antique Bronze, 210 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 200 - 210LM |
| Efficacy | 105LM/W |
| Wattage | 2W |
| Wattage Equivalency | 20W |
| Voltage | Low Voltage |
| Operating Temperature | -4°F to 104°F |
| Color Temperature | 2700K, 3000K |
| Moisture Rating | Wet Rated |
| LED Heads | 1 |
| Bulb Base | T3 |
| Mount Type | Surface Mount |
| Dimensions | 3-3/8" (85 mm) Dia. x 1-3/4" (44 mm) D |
| Finish | Antique Bronze |
| Material | Cast brass housing with die-cast solid brass faceplate |
| Lifetime | 25,000 Hours |
| Warranty | Limited lifetime fixture warranty; 5-year LED lamp warranty |
