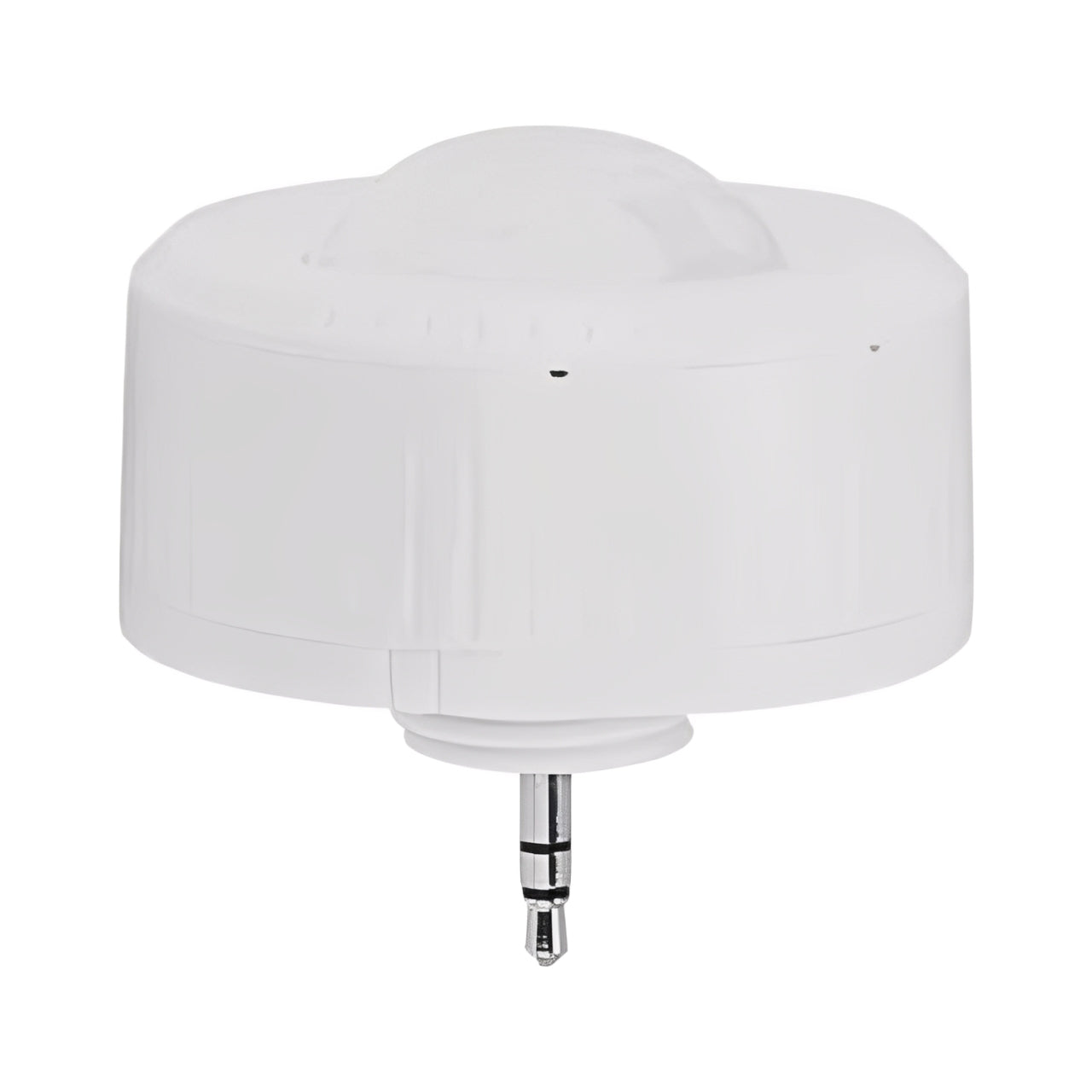

Bi-Level PIR Motion Sensor for UFO High Bay LED Fixtures
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
The PIR Motion Sensor offers a reliable solution to improve energy saving and lighting control. Designed with a compact build, this passive infrared sensor reduces energy costs in UFO high bay lights by adjusting light output based on movement and available daylight. It supports installations up to 40ft (12m) high with a detection range of 1-8m, making it ideal for warehouses, factories, and other high-ceiling applications. The remote-adjustable settings provide flexible customization within a 50ft (15m) indoor range for quick, hassle-free adjustments. With 0-10V dimming support and an IP65 wet rating, this smart accessory ensures efficient brightness management and dependable performance even in harsh environments.
Features
- Provides multi-level control based on motion and daylight contribution
- Max. 40ft/12m mounting height & 1-8m detection radius
- Adjustable settings via remote control (*not included) with a 50ft/15m indoor operating range and no backlight
- 0-10V dimming capabilities
- IP65 wet rated
Default sensor settings:
- Detection area: 100%
- Holdtime: 5min
- Daylight threshold: Disable
- Stand-by period: +∞
- Stand-by dimming level: 30%
- Operating temperature: -4°F to 140°F (-20°C to 60°C)
*Compatible remote sold separately
Compatible Fixtures
| SUN-HB08-210W27V-DDKBAD2 (UFO high bay LED fixture) |
| SUN-HB08-150W27V-DDKBAD2 (UFO high bay LED fixture) |
The PIR Motion Sensor offers a reliable solution to improve energy saving and lighting control. Designed with a compact build, this passive infrared sensor reduces energy costs in UFO high bay lights by adjusting light output based on movement and available daylight. It supports installations up to 40ft (12m) high with a detection range of 1-8m, making it ideal for warehouses, factories, and other high-ceiling applications. The remote-adjustable settings provide flexible customization within a 50ft (15m) indoor range for quick, hassle-free adjustments. With 0-10V dimming support and an IP65 wet rating, this smart accessory ensures efficient brightness management and dependable performance even in harsh environments.
Features
- Provides multi-level control based on motion and daylight contribution
- Max. 40ft/12m mounting height & 1-8m detection radius
- Adjustable settings via remote control (*not included) with a 50ft/15m indoor operating range and no backlight
- 0-10V dimming capabilities
- IP65 wet rated
Default sensor settings:
- Detection area: 100%
- Holdtime: 5min
- Daylight threshold: Disable
- Stand-by period: +∞
- Stand-by dimming level: 30%
- Operating temperature: -4°F to 140°F (-20°C to 60°C)
*Compatible remote sold separately
Compatible Fixtures
| SUN-HB08-210W27V-DDKBAD2 (UFO high bay LED fixture) |
| SUN-HB08-150W27V-DDKBAD2 (UFO high bay LED fixture) |
Overview
The PIR Motion Sensor offers a reliable solution to improve energy saving and lighting control. Designed with a compact build, this passive infrared sensor reduces energy costs in UFO high bay lights by adjusting light output based on movement and available daylight. It supports installations up to 40ft (12m) high with a detection range of 1-8m, making it ideal for warehouses, factories, and other high-ceiling applications. The remote-adjustable settings provide flexible customization within a 50ft (15m) indoor range for quick, hassle-free adjustments. With 0-10V dimming support and an IP65 wet rating, this smart accessory ensures efficient brightness management and dependable performance even in harsh environments.
Features
- Provides multi-level control based on motion and daylight contribution
- Max. 40ft/12m mounting height & 1-8m detection radius
- Adjustable settings via remote control (*not included) with a 50ft/15m indoor operating range and no backlight
- 0-10V dimming capabilities
- IP65 wet rated
Default sensor settings:
- Detection area: 100%
- Holdtime: 5min
- Daylight threshold: Disable
- Stand-by period: +∞
- Stand-by dimming level: 30%
- Operating temperature: -4°F to 140°F (-20°C to 60°C)
*Compatible remote sold separately
Compatible Fixtures
| SUN-HB08-210W27V-DDKBAD2 (UFO high bay LED fixture) |
| SUN-HB08-150W27V-DDKBAD2 (UFO high bay LED fixture) |
Details
MOTION & DAYLIGHT ACTIVATED
This convenient and easily installed PIR Sensor detects movement and daylight to automate lighting in your warehouse, office building, or other commercial spaces. Use this to only illuminate when necessary. Great for safety purposes to detect movement after hours.
INCREASE ENERGY SAVINGS
Attached PIR LED motion sensor turns on your light only when you need it to reduce wattage consumption.
Specifications
| Bi-Level PIR Motion Sensor for UFO High Bay LED Fixtures Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Operating Temperature | -4°F to 140°F |
| Dimmable | Dimmable |
| Dimming Details | 0-10V Dimming |
| IP Rating | IP65 |
| Moisture Rating | Wet Rated |
| Motion Sensor | Yes |
| Sensor Details | See specification sheet for full details about motion detection. |
