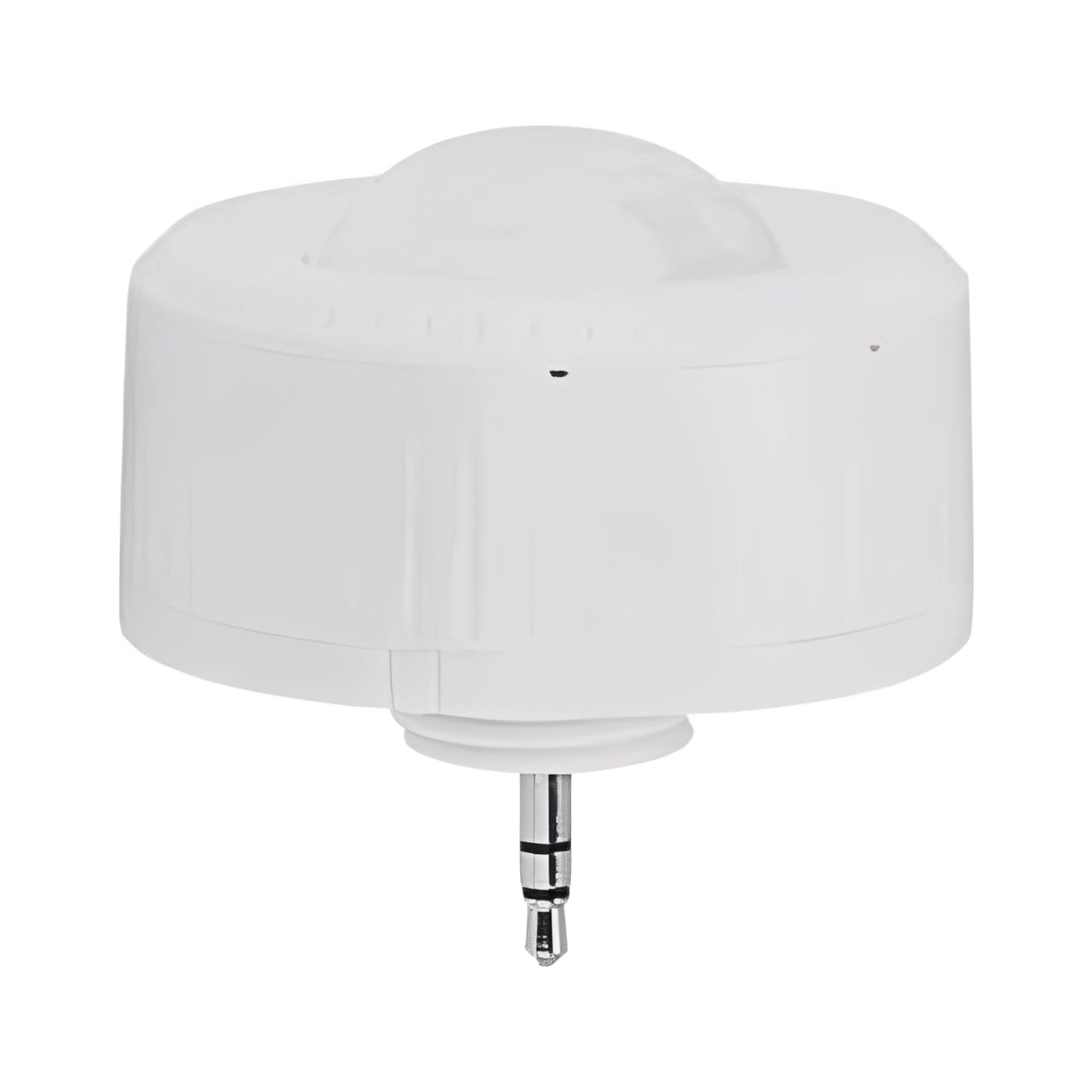

The PIR Motion Sensor offers a reliable solution to improve energy saving and lighting control. Designed with a compact build, this passive infrared sensor reduces energy costs in UFO high bay lights by adjusting light output based on movement and available daylight. It supports installations up to 40ft (12m) high with a detection range of 1-8m, making it ideal for warehouses, factories, and other high-ceiling applications. The remote-adjustable settings provide flexible customization within a 50ft (15m) indoor range for quick, hassle-free adjustments. With 0-10V dimming support and an IP65 wet rating, this smart accessory ensures efficient brightness management and dependable performance even in harsh environments.
Features
- Provides multi-level control based on motion and daylight contribution
- Max. 40ft/12m mounting height & 1-8m detection radius
- Adjustable settings via remote control (*not included) with a 50ft/15m indoor operating range and no backlight
- 0-10V dimming capabilities
- IP65 wet rated
Default sensor settings:
- Detection area: 100%
- Holdtime: 5min
- Daylight threshold: Disable
- Stand-by period: +∞
- Stand-by dimming level: 30%
- Operating temperature: -4°F to 140°F (-20°C to 60°C)
*Compatible remote sold separately
Compatible Fixtures
| SUN-HB08-210W27V-DDKBAD2 | SUN-HB08-150W27V-DDKBAD2 |
