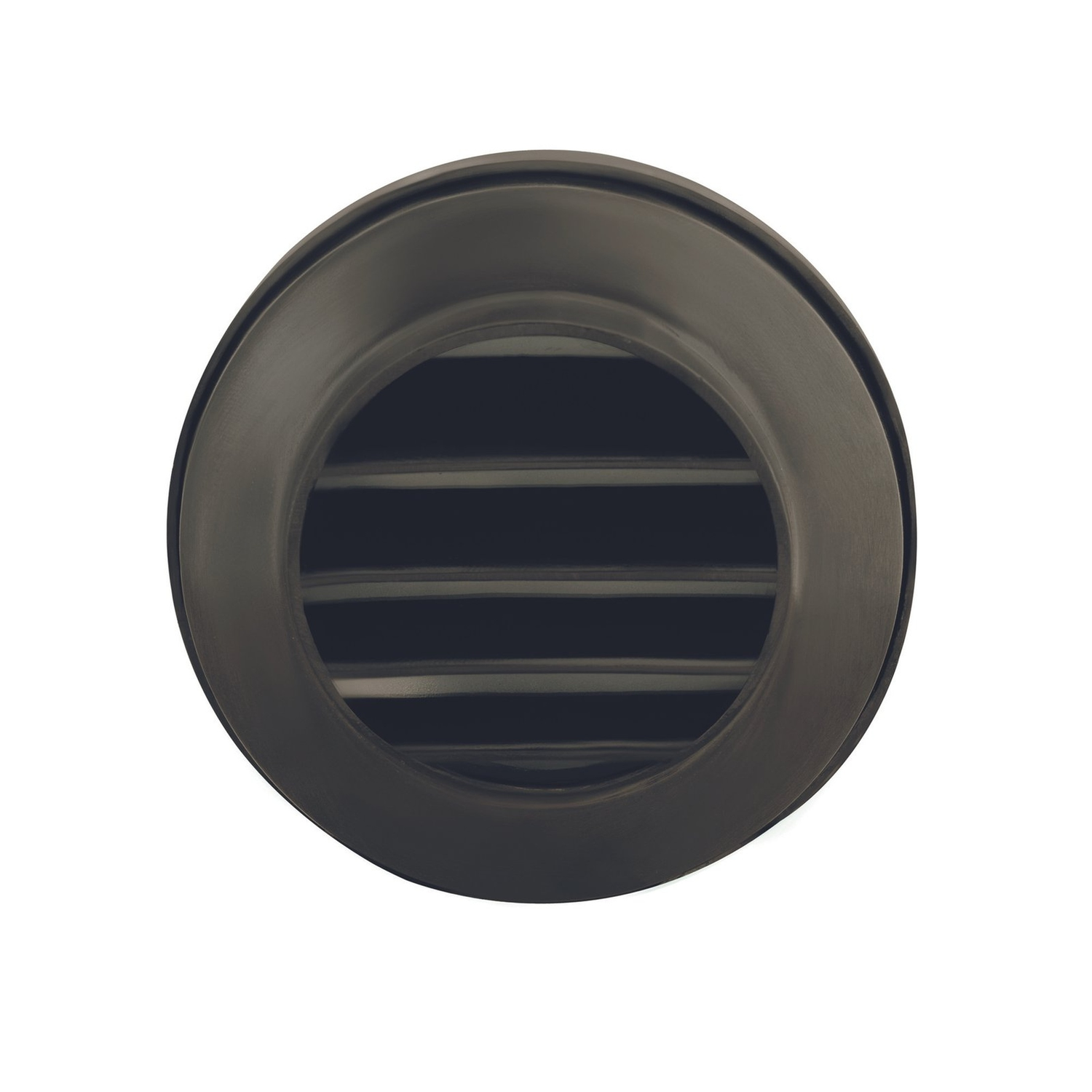

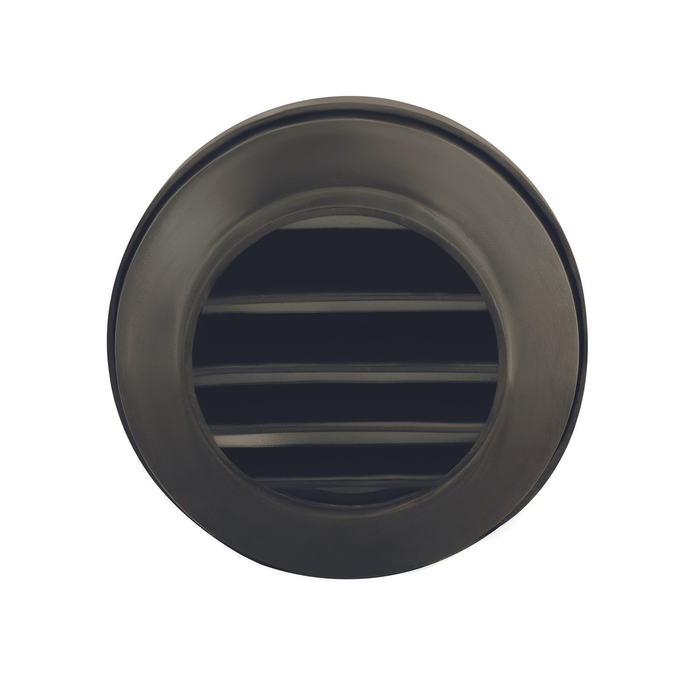

Brass 4-Louver Disc Step Light, Surface-Mount, 3.5 Inch, Gun Metal, 250 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This Gun Metal cast brass 4-louvered disc surface step light features a twist-to-lock faceplate and frosted heat-resistant flat glass lens for durable, weather-ready performance. It ships with a T3 LED lamp delivering 240-250 Lumens with warm-white output, drawing 2.5W with a 25,000-hour rated life. The corrosion-resistant fixture surface mounts with a 3/8" concealed wiring opening and uses a silicone O-ring for a weather-tight seal. Ideal for illuminating outdoor steps, deck edges, and garden pathways, providing low-profile illumination for nighttime safety and visibility.
Features
-
- Brass 4-louvered disc surface step light with twist-to-lock faceplate for tool-free relamping
- Corrosion-resistant cast brass housing and die-cast solid brass faceplate; silicone O-ring for a weather-tight seal
- Frosted heat-resistant flat glass lens
- Top-grade T3 bi-pin socket
- Includes T3 LED lamp: 2.5W, 240-250 Lumens; rated life 25,000 hours; approx 35W halogen equivalent
- LED operating voltage range 8–21V; remote 12V transformer required
- Surface-mount with included mounting plate; concealed wiring through 3/8" hole
- Prewired with 18-2 SPT1-W direct-burial cord
- Dimensions: 3-3/8" Dia x 1-3/4" deep
This Gun Metal cast brass 4-louvered disc surface step light features a twist-to-lock faceplate and frosted heat-resistant flat glass lens for durable, weather-ready performance. It ships with a T3 LED lamp delivering 240-250 Lumens with warm-white output, drawing 2.5W with a 25,000-hour rated life. The corrosion-resistant fixture surface mounts with a 3/8" concealed wiring opening and uses a silicone O-ring for a weather-tight seal. Ideal for illuminating outdoor steps, deck edges, and garden pathways, providing low-profile illumination for nighttime safety and visibility.
Features
-
- Brass 4-louvered disc surface step light with twist-to-lock faceplate for tool-free relamping
- Corrosion-resistant cast brass housing and die-cast solid brass faceplate; silicone O-ring for a weather-tight seal
- Frosted heat-resistant flat glass lens
- Top-grade T3 bi-pin socket
- Includes T3 LED lamp: 2.5W, 240-250 Lumens; rated life 25,000 hours; approx 35W halogen equivalent
- LED operating voltage range 8–21V; remote 12V transformer required
- Surface-mount with included mounting plate; concealed wiring through 3/8" hole
- Prewired with 18-2 SPT1-W direct-burial cord
- Dimensions: 3-3/8" Dia x 1-3/4" deep
Overview
This Gun Metal cast brass 4-louvered disc surface step light features a twist-to-lock faceplate and frosted heat-resistant flat glass lens for durable, weather-ready performance. It ships with a T3 LED lamp delivering 240-250 Lumens with warm-white output, drawing 2.5W with a 25,000-hour rated life. The corrosion-resistant fixture surface mounts with a 3/8" concealed wiring opening and uses a silicone O-ring for a weather-tight seal. Ideal for illuminating outdoor steps, deck edges, and garden pathways, providing low-profile illumination for nighttime safety and visibility.
Features
-
- Brass 4-louvered disc surface step light with twist-to-lock faceplate for tool-free relamping
- Corrosion-resistant cast brass housing and die-cast solid brass faceplate; silicone O-ring for a weather-tight seal
- Frosted heat-resistant flat glass lens
- Top-grade T3 bi-pin socket
- Includes T3 LED lamp: 2.5W, 240-250 Lumens; rated life 25,000 hours; approx 35W halogen equivalent
- LED operating voltage range 8–21V; remote 12V transformer required
- Surface-mount with included mounting plate; concealed wiring through 3/8" hole
- Prewired with 18-2 SPT1-W direct-burial cord
- Dimensions: 3-3/8" Dia x 1-3/4" deep
Specifications
| Brass 4-Louver Disc Step Light, Surface-Mount, 3.5 Inch, Gun Metal, 250 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 240 - 250LM |
| Efficacy | 96LM/W |
| Wattage | 2.5W |
| Wattage Equivalency | 35W |
| Voltage | Low Voltage |
| Operating Temperature | -4°F to 104°F |
| Color Temperature | 2700K, 3000K |
| Moisture Rating | Wet Rated |
| Bulb Base | T3 |
| Included Components | LED |
| Mount Type | Surface Mount |
| Dimensions | 3-3/8" Dia. x 1-3/4" D |
| Finish | Gun Metal |
| Material | Corrosion-resistant cast brass housing and die-cast solid brass faceplate |
| Lifetime | 25,000 Hours |
| Warranty | Limited lifetime fixture warranty; 5-year LED lamp warranty |
