- Lumens: 200 - 210LM
- Voltage: Low Voltage
- Wattage: 2W
- Dimming: Dimmable
- Warranty: Limited lifetime warranty on fixture housing/faceplate against manufacturer's defects; five (5) year manufacturer's warranty on the LED lamp.

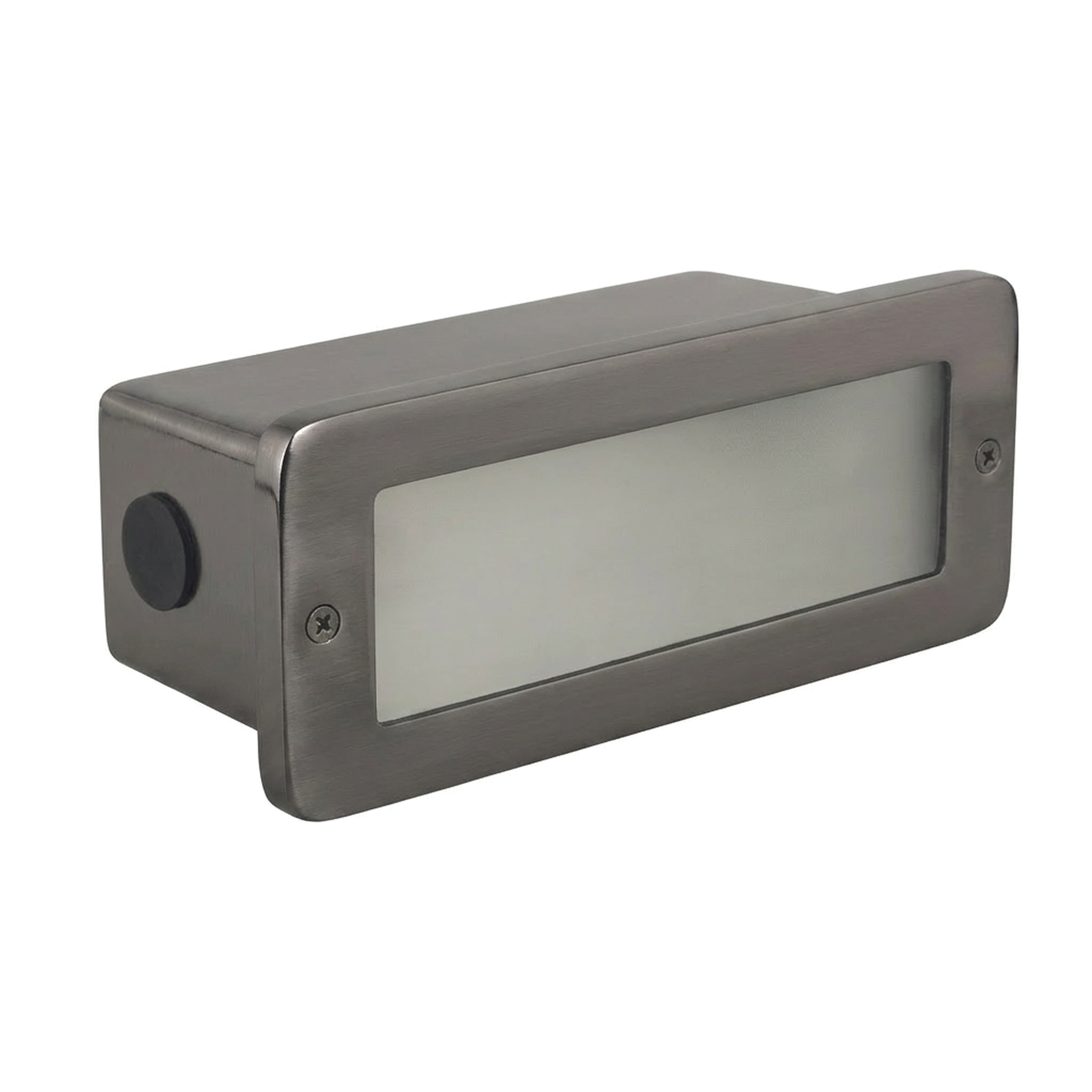

This Gun Metal brass lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with an 8-1/4 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Large lensed solid brass boxed step/brick light in Gun Metal finish
- Architectural-grade corrosion-resistant cast brass housing with die-cast brass faceplate
- Frosted heat-resistant glass lens with silicone gasket for weather-tight protection
- Includes bayonet LED lamp: 2W, 200 lumens at 2700K and 210 lumens at 3000K, CRI 80, 25,000-hour rated life, 20W halogen equivalent; output applies to each included lamp, and total fixture output is not stated
- Two SCB (single-contact bayonet) sockets; 27W max halogen per socket
- Low-voltage 12V operation; requires remote transformer
- LED operating range 8–21V
- Prewired with 3 ft 18-2 SPT1-W direct-burial cord (wire connector sold separately)
- Surface-mount faceplate supplied; recessed back box recommended for concrete or masonry
- Faceplate approx. 8-1/4" W x 3-1/4" H
- Warranty: Limited lifetime fixture warranty
