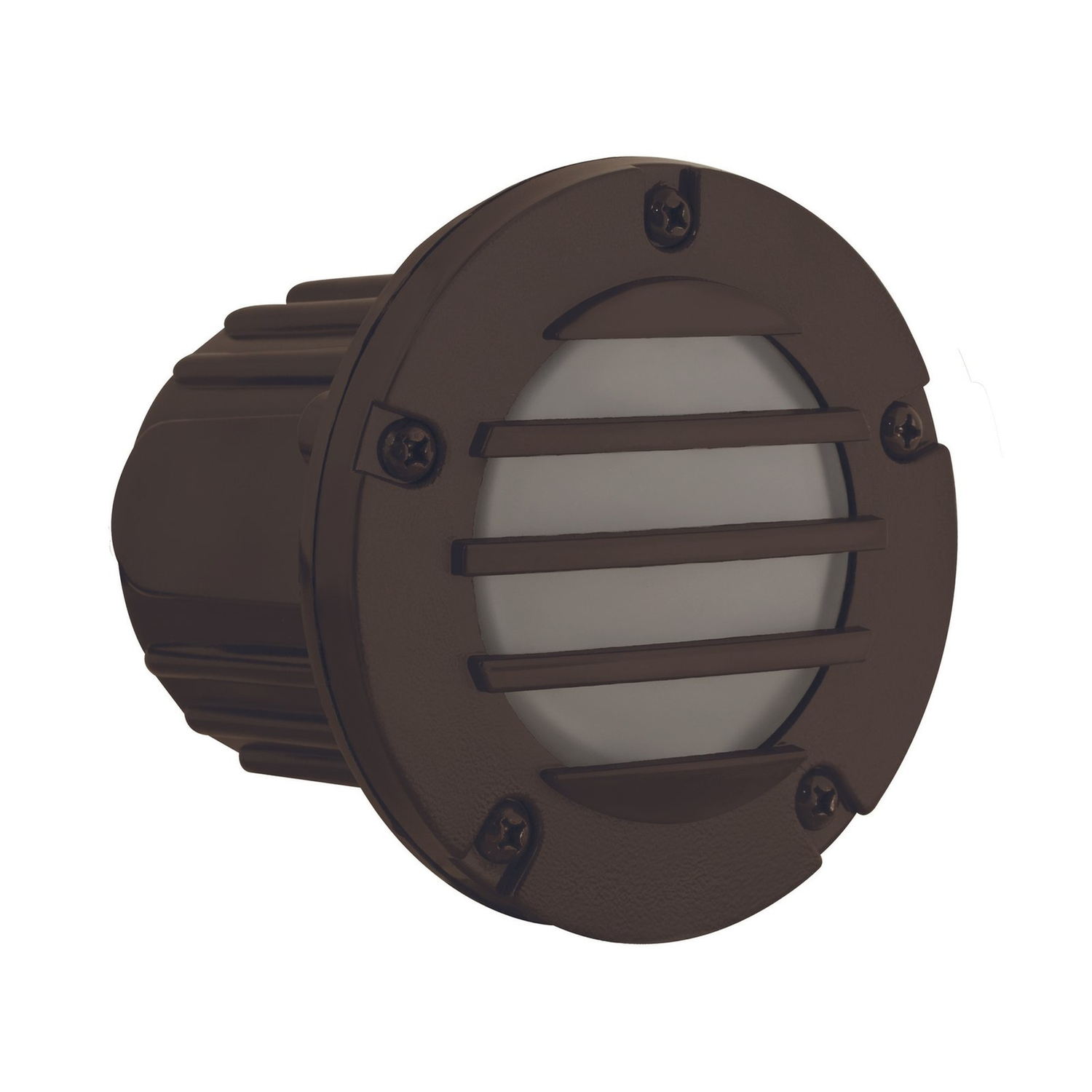

4-Louver Glass Lens Step Light, In-Ground, 5 Inch, Bronze, 38° Beam Angle, 450 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This injection-molded composite 4-louver step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 450 lumens with a 38° Beam Angle. A remote 12V transformer is required.
Features
-
- Finish: Bronze
- Hooded louvered step light with frosted heat-resistant glass lens and silicone O-ring for a weather-tight seal
- Injection-molded composite housing and face plate for high UV stability; face plate sealed to housing
- Includes 5W LED MR16 COB lamp: 450 Lumens, 2700K, CRI 80, 38° beam angle, dimmable; equivalent to a 50W halogen
- LED operating range 9–17V; requires remote 12V transformer
- Top-grade adjustable ceramic bi-pin socket with retention clip and Teflon-jacketed lead
- Prewired with 3 ft 18-2 SJT-W direct-burial water-resistant cord
- Accessories available: silicone-filled wire nut CX-854 and quick-locking connectors CX-LOC
- Mounting: in-ground direct burial or concrete encasement; concrete pour kit CX-237 recommended
- Optional MR16 lenses and honeycomb louver require CX-238 holder; color lenses and spread/prismatic options available
- Warranty: limited 10-year on fixture housing; 5-year manufacturer warranty on included lamp
This injection-molded composite 4-louver step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 450 lumens with a 38° Beam Angle. A remote 12V transformer is required.
Features
-
- Finish: Bronze
- Hooded louvered step light with frosted heat-resistant glass lens and silicone O-ring for a weather-tight seal
- Injection-molded composite housing and face plate for high UV stability; face plate sealed to housing
- Includes 5W LED MR16 COB lamp: 450 Lumens, 2700K, CRI 80, 38° beam angle, dimmable; equivalent to a 50W halogen
- LED operating range 9–17V; requires remote 12V transformer
- Top-grade adjustable ceramic bi-pin socket with retention clip and Teflon-jacketed lead
- Prewired with 3 ft 18-2 SJT-W direct-burial water-resistant cord
- Accessories available: silicone-filled wire nut CX-854 and quick-locking connectors CX-LOC
- Mounting: in-ground direct burial or concrete encasement; concrete pour kit CX-237 recommended
- Optional MR16 lenses and honeycomb louver require CX-238 holder; color lenses and spread/prismatic options available
- Warranty: limited 10-year on fixture housing; 5-year manufacturer warranty on included lamp
Overview
This injection-molded composite 4-louver step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 450 lumens with a 38° Beam Angle. A remote 12V transformer is required.
Features
-
- Finish: Bronze
- Hooded louvered step light with frosted heat-resistant glass lens and silicone O-ring for a weather-tight seal
- Injection-molded composite housing and face plate for high UV stability; face plate sealed to housing
- Includes 5W LED MR16 COB lamp: 450 Lumens, 2700K, CRI 80, 38° beam angle, dimmable; equivalent to a 50W halogen
- LED operating range 9–17V; requires remote 12V transformer
- Top-grade adjustable ceramic bi-pin socket with retention clip and Teflon-jacketed lead
- Prewired with 3 ft 18-2 SJT-W direct-burial water-resistant cord
- Accessories available: silicone-filled wire nut CX-854 and quick-locking connectors CX-LOC
- Mounting: in-ground direct burial or concrete encasement; concrete pour kit CX-237 recommended
- Optional MR16 lenses and honeycomb louver require CX-238 holder; color lenses and spread/prismatic options available
- Warranty: limited 10-year on fixture housing; 5-year manufacturer warranty on included lamp
Specifications
| 4-Louver Glass Lens Step Light, In-Ground, 5 Inch, Bronze, 38° Beam Angle, 450 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 450LM |
| Efficacy | 94LM/W |
| Wattage | 5W |
| Wattage Equivalency | 50W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 38° Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |

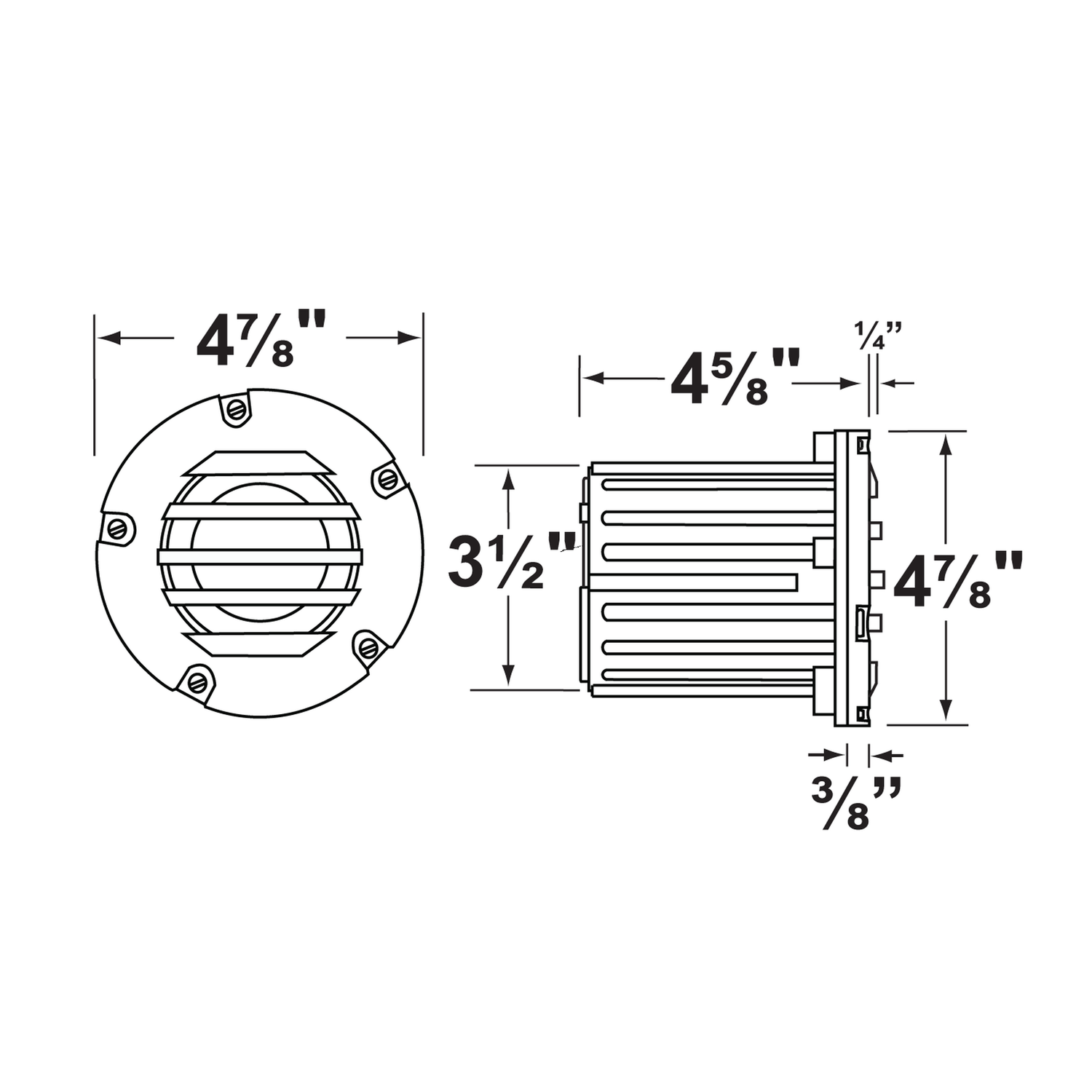

| Dimensions | Approx. 4-7/8" Dia. x 6-1/8" L |
| Finish | Bronze |
| Material | Injection-molded composite |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited 10-year warranty on fixture housing against manufacturer's defects, Five-year warranty on lamp |
