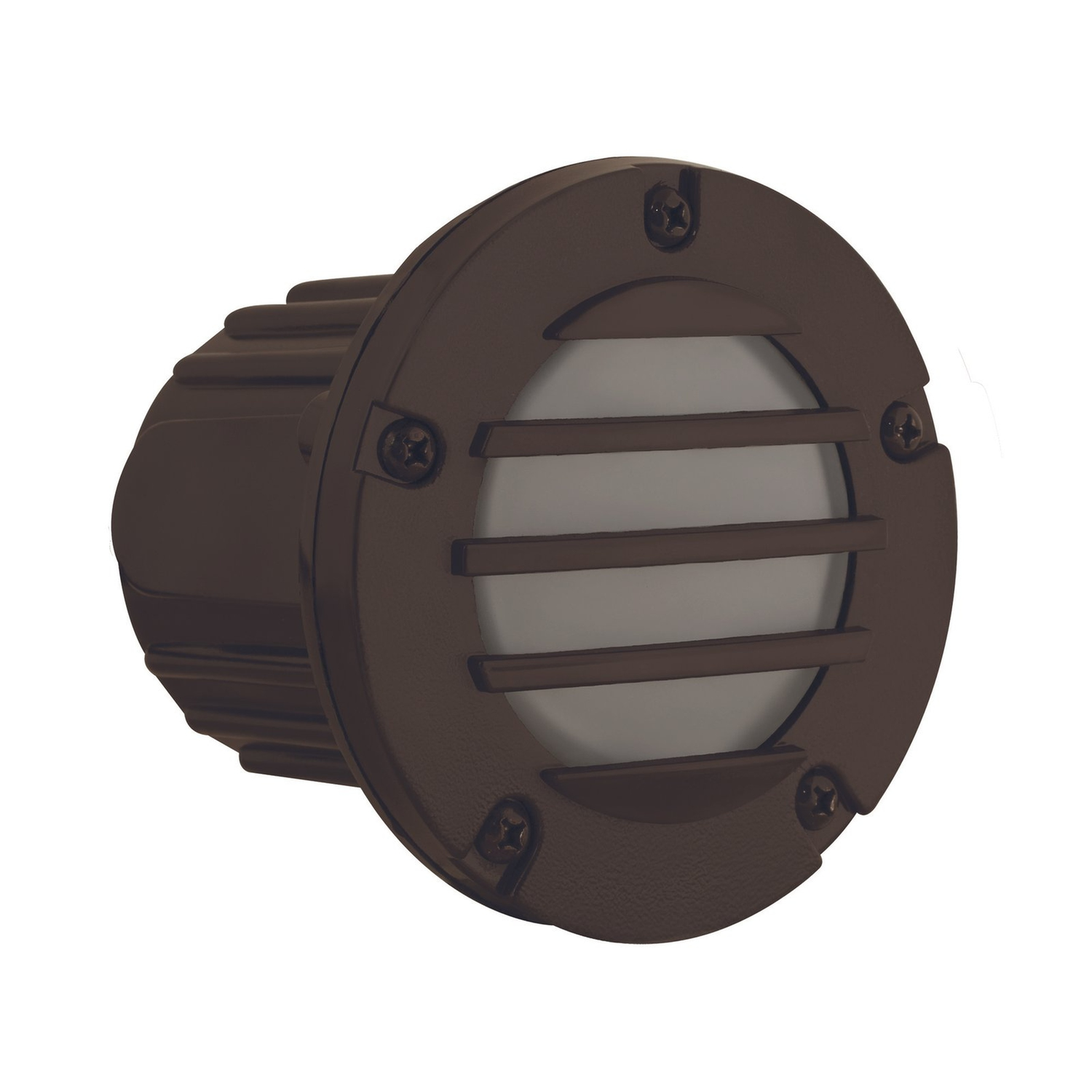

4-Louver Glass Lens Step Light, In-Ground, 5 Inch, Bronze, 15° Narrow Beam Angle, 450 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This injection-molded composite 4-louver step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 450 lumens with a 15° Narrow Beam Angle. A remote 12V transformer is required.
Features
-
- Hooded louvered step light
- Injection-molded composite housing and sealed face plate for high UV stability
- Frosted heat-resistant glass lens with silicone O-ring for weather-tight seal
- Top-grade adjustable ceramic bi-pin socket with retention clip and Teflon-jacketed lead
- Includes 5W LED MR16 COB lamp: 450 Lumens, 2700K, CRI 80, dimmable
- LED operating range: 9–17V
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Compatible with concrete pour kit CX-237

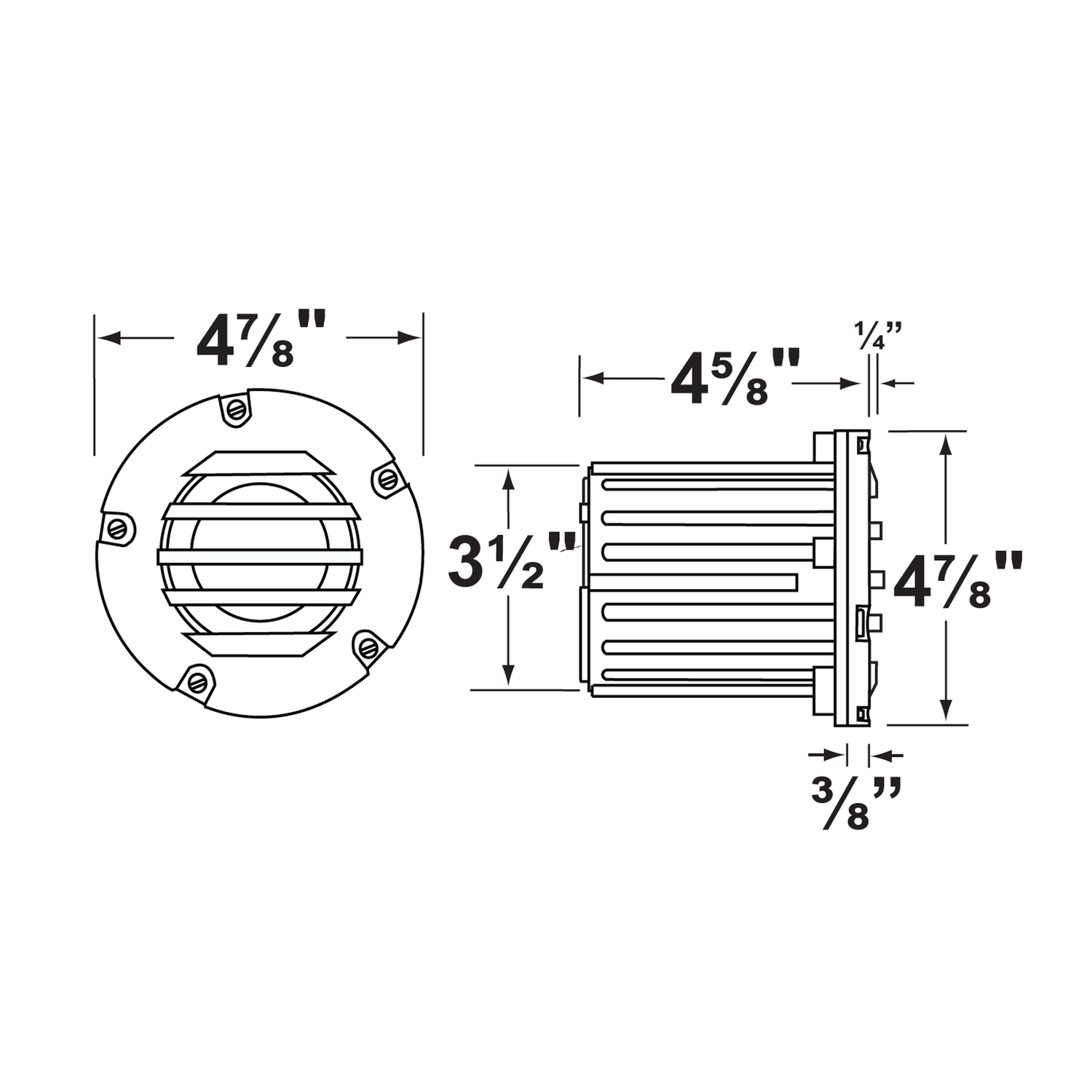

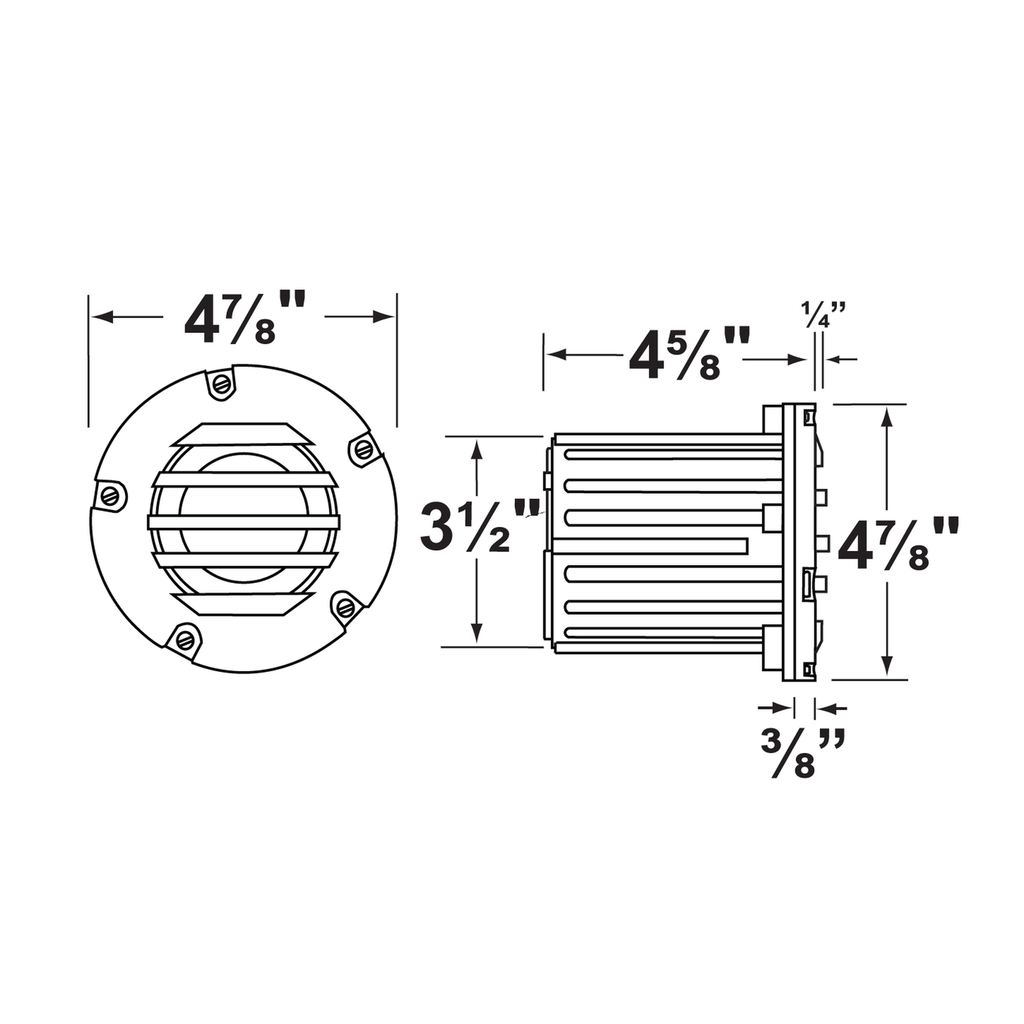

- Approx dimensions: 4-7/8" Dia x 6-1/8" L
- ETL listed
- Rated: -22°F to 122°F
- Remote 12V transformer required for low-voltage installations
- Limited 10-year warranty on fixture housing
- 5-year manufacturer warranty on lamp
- Beam angle: 15° narrow beam
This injection-molded composite 4-louver step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 450 lumens with a 15° Narrow Beam Angle. A remote 12V transformer is required.
Features
-
- Hooded louvered step light
- Injection-molded composite housing and sealed face plate for high UV stability
- Frosted heat-resistant glass lens with silicone O-ring for weather-tight seal
- Top-grade adjustable ceramic bi-pin socket with retention clip and Teflon-jacketed lead
- Includes 5W LED MR16 COB lamp: 450 Lumens, 2700K, CRI 80, dimmable
- LED operating range: 9–17V
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Compatible with concrete pour kit CX-237
- Approx dimensions: 4-7/8" Dia x 6-1/8" L
- ETL listed
- Rated: -22°F to 122°F
- Remote 12V transformer required for low-voltage installations
- Limited 10-year warranty on fixture housing
- 5-year manufacturer warranty on lamp
- Beam angle: 15° narrow beam
Overview
This injection-molded composite 4-louver step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 450 lumens with a 15° Narrow Beam Angle. A remote 12V transformer is required.
Features
-
- Hooded louvered step light
- Injection-molded composite housing and sealed face plate for high UV stability
- Frosted heat-resistant glass lens with silicone O-ring for weather-tight seal
- Top-grade adjustable ceramic bi-pin socket with retention clip and Teflon-jacketed lead
- Includes 5W LED MR16 COB lamp: 450 Lumens, 2700K, CRI 80, dimmable
- LED operating range: 9–17V
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Compatible with concrete pour kit CX-237
- Approx dimensions: 4-7/8" Dia x 6-1/8" L
- ETL listed
- Rated: -22°F to 122°F
- Remote 12V transformer required for low-voltage installations
- Limited 10-year warranty on fixture housing
- 5-year manufacturer warranty on lamp
- Beam angle: 15° narrow beam
Specifications
| 4-Louver Glass Lens Step Light, In-Ground, 5 Inch, Bronze, 15° Narrow Beam Angle, 450 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 450LM |
| Efficacy | 94LM/W |
| Wattage | 5W |
| Wattage Equivalency | 50W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 15° Narrow Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | Approx. 4-7/8" Dia. x 6-1/8" L |
| Finish | Bronze |
| Material | Injection-molded composite |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited 10-year warranty on fixture housing and 5-year manufacturer warranty on lamp |
