4-Louver Glass Lens Step Light, In-Ground, 5 Inch, Bronze, 15° Narrow Beam Angle, 270 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

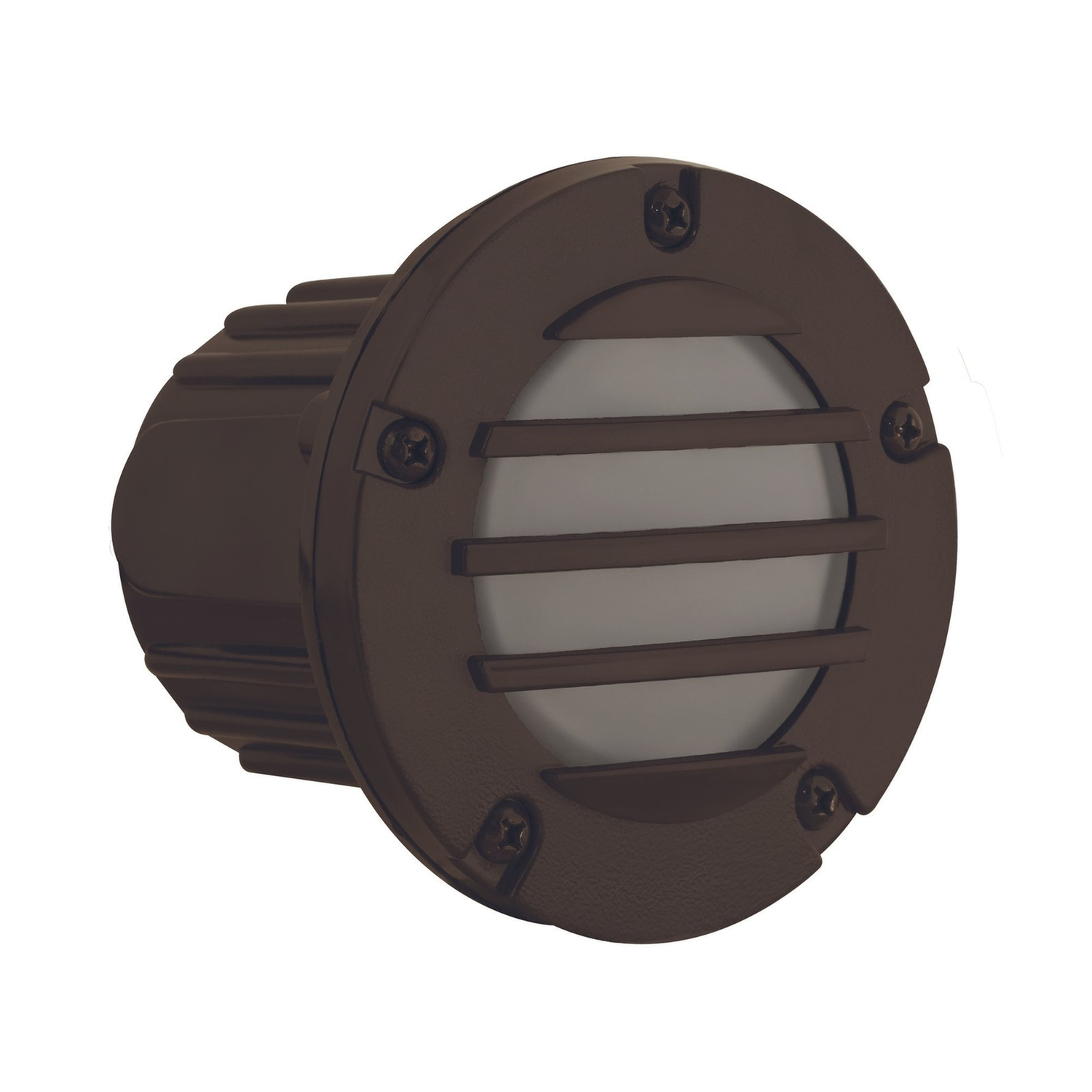

This injection-molded composite 4-louver step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 270 lumens with a 15° Narrow Beam Angle. A remote 12V transformer is required.
Features
-
- Hooded/louvered step light with frosted heat-resistant glass lens and silicone O-ring for a weather-tight seal
- Injection-molded composite housing and sealed face plate for high UV stability
- Includes MR16 COB LED lamp: 3.5W, 270 Lumens, 2700K, CRI 80, 15° spot beam, 50,000-hour rated lifespan
- LED operating range 9–17V; requires a remote 12V transformer
- Top-grade adjustable ceramic bi-pin socket with retention clip and Teflon-jacketed lead
- Prewired with 3 ft 18-2 SJT-W direct-burial/water-resistant cord
- ETL listed; rated -22°F to 122°F
- Approx dimensions: 4-7/8" Dia x 6-1/8" length; limited 10-year warranty on fixture housing
This injection-molded composite 4-louver step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 270 lumens with a 15° Narrow Beam Angle. A remote 12V transformer is required.
Features
-
- Hooded/louvered step light with frosted heat-resistant glass lens and silicone O-ring for a weather-tight seal
- Injection-molded composite housing and sealed face plate for high UV stability
- Includes MR16 COB LED lamp: 3.5W, 270 Lumens, 2700K, CRI 80, 15° spot beam, 50,000-hour rated lifespan
- LED operating range 9–17V; requires a remote 12V transformer
- Top-grade adjustable ceramic bi-pin socket with retention clip and Teflon-jacketed lead
- Prewired with 3 ft 18-2 SJT-W direct-burial/water-resistant cord
- ETL listed; rated -22°F to 122°F
- Approx dimensions: 4-7/8" Dia x 6-1/8" length; limited 10-year warranty on fixture housing
Overview
This injection-molded composite 4-louver step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 270 lumens with a 15° Narrow Beam Angle. A remote 12V transformer is required.
Features
-
- Hooded/louvered step light with frosted heat-resistant glass lens and silicone O-ring for a weather-tight seal
- Injection-molded composite housing and sealed face plate for high UV stability
- Includes MR16 COB LED lamp: 3.5W, 270 Lumens, 2700K, CRI 80, 15° spot beam, 50,000-hour rated lifespan
- LED operating range 9–17V; requires a remote 12V transformer
- Top-grade adjustable ceramic bi-pin socket with retention clip and Teflon-jacketed lead
- Prewired with 3 ft 18-2 SJT-W direct-burial/water-resistant cord
- ETL listed; rated -22°F to 122°F
- Approx dimensions: 4-7/8" Dia x 6-1/8" length; limited 10-year warranty on fixture housing
Specifications
| 4-Louver Glass Lens Step Light, In-Ground, 5 Inch, Bronze, 15° Narrow Beam Angle, 270 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 270LM |
| Efficacy | 77.1LM/W |
| Wattage | 3.5W |
| Wattage Equivalency | 25W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 15° Narrow Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Included Components | COB LED |
| Mount Type | Surface Mount |
| Dimensions | Approx. 4-7/8" Dia. x 6-1/8" L |
| Finish | Bronze |
| Material | Injection-molded composite |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited 10-year warranty on fixture housing against manufacturer's defects; five (5) year manufacturer's warranty on the LED lamp |
