Glass Lens Disc Step Light, In-Ground, 5 Inch, Black, 60° Wide Beam Angle, 350 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

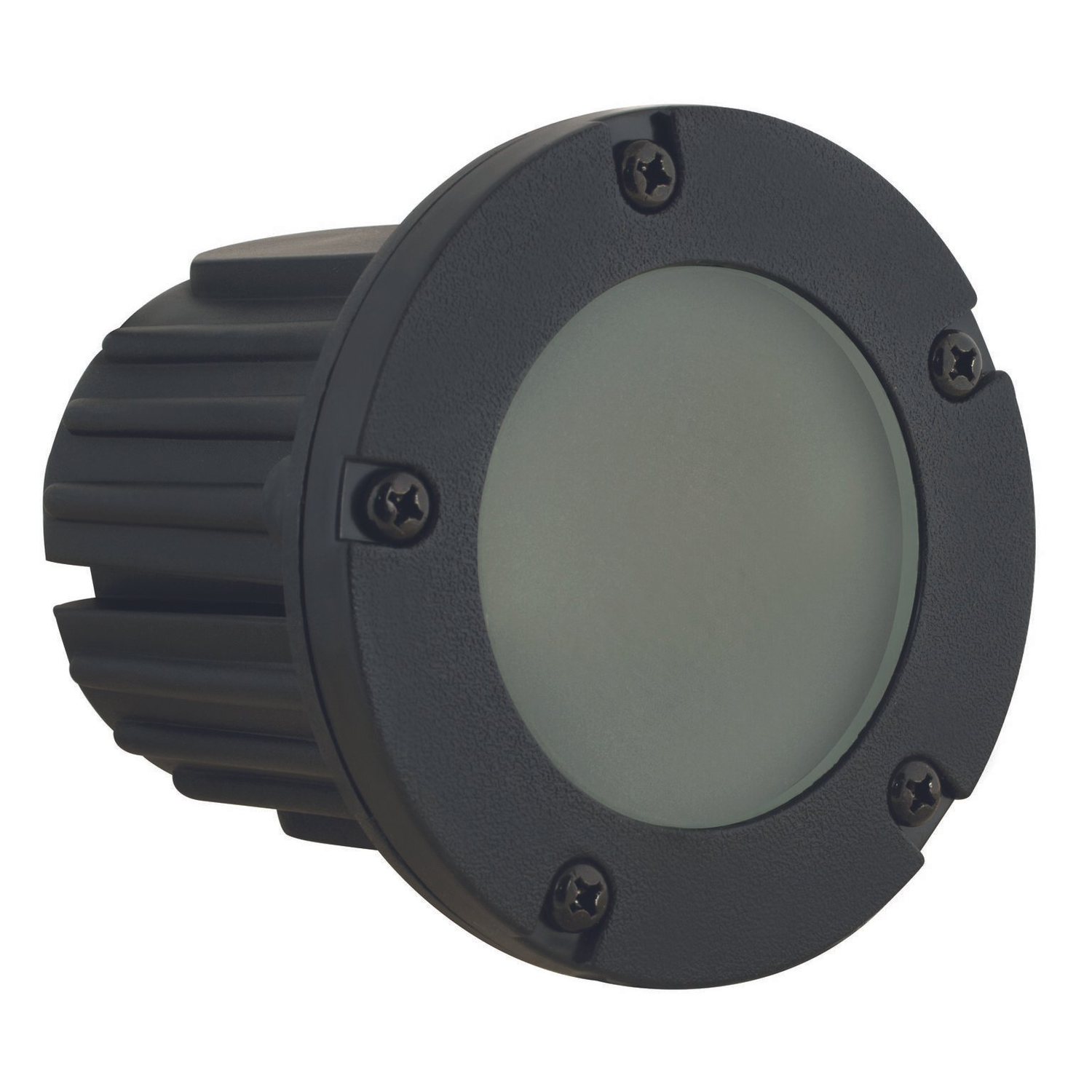

This glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 350 lumens at 2700K with a 60° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Dimensions: 4-7/8" Dia x 4-5/8" L
- Injection-molded composite housing engineered for high UV stability
- Frosted heat-resistant glass lens for even, low-glare illumination
- Top-grade adjustable ceramic bi-pin socket with retention clip; MR16 lamp type
- Included MR16 LED lamp: 5W, approx 350 Lumens, 2700K, 60° Wide Beam Angle, 50,000-hour life
- BT/LED lamps operate at 9–17V; remote 12V transformer required; prewired with 3 ft 18-2 SJT-W water-resistant cord
- Mounting: in-ground direct burial or concrete encasement
- Compatible with CX-237 concrete pour kit
- ETL listed; operating range -22°F to 122°F
- Warranty: 10-year fixture warranty
This glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 350 lumens at 2700K with a 60° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Dimensions: 4-7/8" Dia x 4-5/8" L
- Injection-molded composite housing engineered for high UV stability
- Frosted heat-resistant glass lens for even, low-glare illumination
- Top-grade adjustable ceramic bi-pin socket with retention clip; MR16 lamp type
- Included MR16 LED lamp: 5W, approx 350 Lumens, 2700K, 60° Wide Beam Angle, 50,000-hour life
- BT/LED lamps operate at 9–17V; remote 12V transformer required; prewired with 3 ft 18-2 SJT-W water-resistant cord
- Mounting: in-ground direct burial or concrete encasement
- Compatible with CX-237 concrete pour kit
- ETL listed; operating range -22°F to 122°F
- Warranty: 10-year fixture warranty
Overview
This glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 350 lumens at 2700K with a 60° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Dimensions: 4-7/8" Dia x 4-5/8" L
- Injection-molded composite housing engineered for high UV stability
- Frosted heat-resistant glass lens for even, low-glare illumination
- Top-grade adjustable ceramic bi-pin socket with retention clip; MR16 lamp type
- Included MR16 LED lamp: 5W, approx 350 Lumens, 2700K, 60° Wide Beam Angle, 50,000-hour life
- BT/LED lamps operate at 9–17V; remote 12V transformer required; prewired with 3 ft 18-2 SJT-W water-resistant cord
- Mounting: in-ground direct burial or concrete encasement
- Compatible with CX-237 concrete pour kit
- ETL listed; operating range -22°F to 122°F
- Warranty: 10-year fixture warranty
Specifications
| Glass Lens Disc Step Light, In-Ground, 5 Inch, Black, 60° Wide Beam Angle, 350 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 350LM |
| Efficacy | 70LM/W |
| Wattage | 5W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 60° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 4-5/8" L |
| Finish | Black |
| Material | Composite (injection-molded) |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | 10-year limited warranty on injection-molded composite fixture housing; 5-year limited warranty on LED lamp module |
