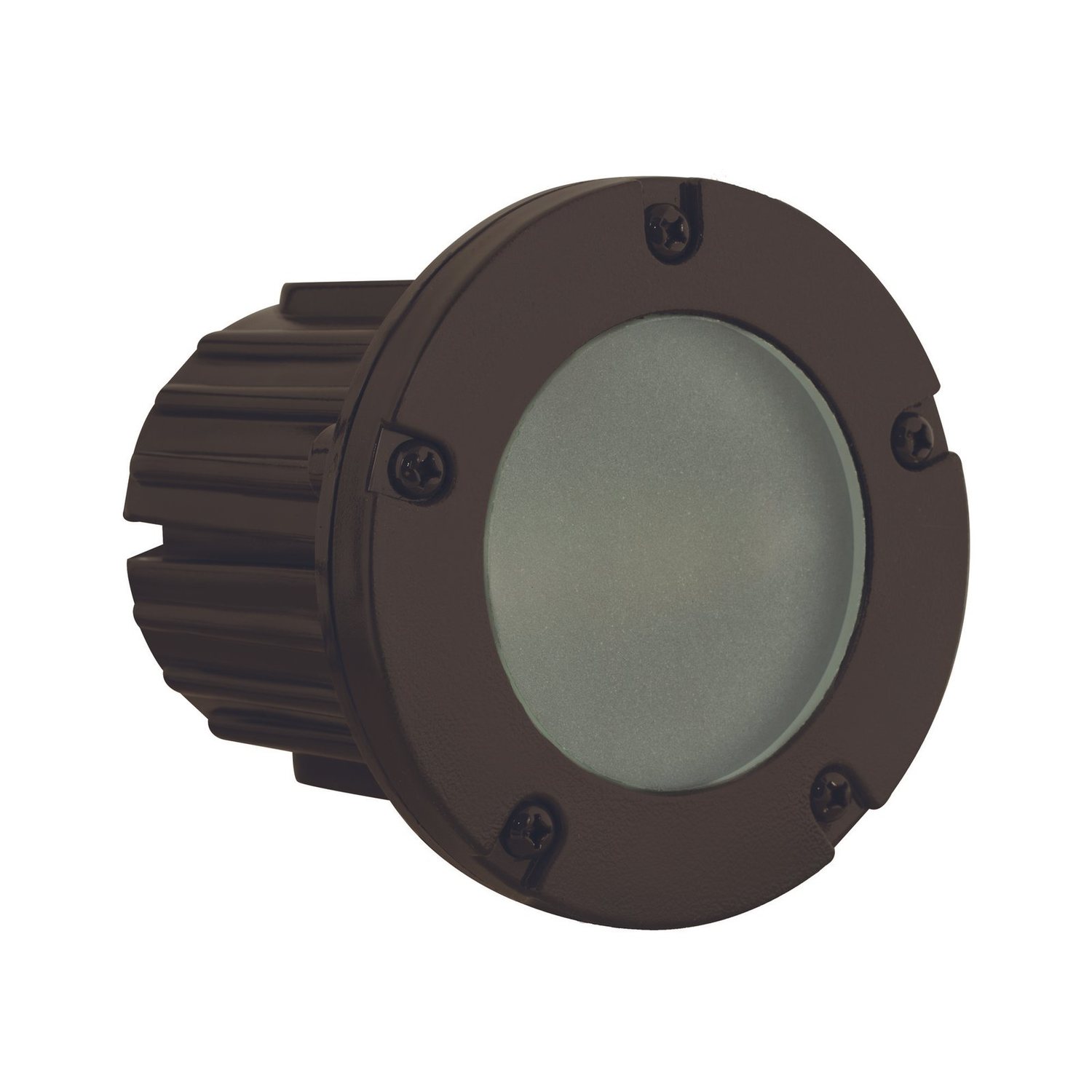

Glass Lens Disc Step Light, In-Ground, 5 Inch, Bronze, 60° Wide Beam Angle, 350 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 350 lumens at 2700K with a 60° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Composite lensed step and brick light with frosted, heat-resistant glass lens; injection-molded composite housing and faceplate with silicone O-ring gasket for sealed protection
- Top-grade adjustable ceramic bi-pin MR16 socket with retention clip and ±25° tilt for aiming
- Factory prewired with 3 ft of 18-2 SJT-W direct-burial cord for fast installation
- Suitable for in-ground direct burial or concrete encasement
- Mounting: in-ground direct burial or concrete encasement
- CX-237 concrete pour kit recommended
- Requires remote 12V transformer
- Recommended wire connectors: CX-839 or CX-854
- Bundled MR16 LED lamp: 5W, 350 Lumens, 2700K, 60° wide beam angle, CRI 80, dimmable, 50,000-hour lifetime; operating range 9–17V
- Warranty: 10-year fixture warranty
This glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 350 lumens at 2700K with a 60° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Composite lensed step and brick light with frosted, heat-resistant glass lens; injection-molded composite housing and faceplate with silicone O-ring gasket for sealed protection
- Top-grade adjustable ceramic bi-pin MR16 socket with retention clip and ±25° tilt for aiming
- Factory prewired with 3 ft of 18-2 SJT-W direct-burial cord for fast installation
- Suitable for in-ground direct burial or concrete encasement
- Mounting: in-ground direct burial or concrete encasement
- CX-237 concrete pour kit recommended
- Requires remote 12V transformer
- Recommended wire connectors: CX-839 or CX-854
- Bundled MR16 LED lamp: 5W, 350 Lumens, 2700K, 60° wide beam angle, CRI 80, dimmable, 50,000-hour lifetime; operating range 9–17V
- Warranty: 10-year fixture warranty
Overview
This glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 350 lumens at 2700K with a 60° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Composite lensed step and brick light with frosted, heat-resistant glass lens; injection-molded composite housing and faceplate with silicone O-ring gasket for sealed protection
- Top-grade adjustable ceramic bi-pin MR16 socket with retention clip and ±25° tilt for aiming
- Factory prewired with 3 ft of 18-2 SJT-W direct-burial cord for fast installation
- Suitable for in-ground direct burial or concrete encasement
- Mounting: in-ground direct burial or concrete encasement
- CX-237 concrete pour kit recommended
- Requires remote 12V transformer
- Recommended wire connectors: CX-839 or CX-854
- Bundled MR16 LED lamp: 5W, 350 Lumens, 2700K, 60° wide beam angle, CRI 80, dimmable, 50,000-hour lifetime; operating range 9–17V
- Warranty: 10-year fixture warranty
Specifications
| Glass Lens Disc Step Light, In-Ground, 5 Inch, Bronze, 60° Wide Beam Angle, 350 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 350LM |
| Efficacy | 70LM/W |
| Wattage | 5W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 60° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 4-5/8" L |
| Finish | Bronze |
| Material | Injection-molded composite housing and face-resistant frosted glass lens |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime warranty on composite fixture housing; five (5) year limited warranty on LED module |
