- Lumens: 350LM
- Voltage: Low Voltage
- Wattage: 5W
- Dimming: Dimmable
- Warranty: 10-year limited warranty on injection-molded composite fixture housing; 5-year limited warranty on LED lamp module

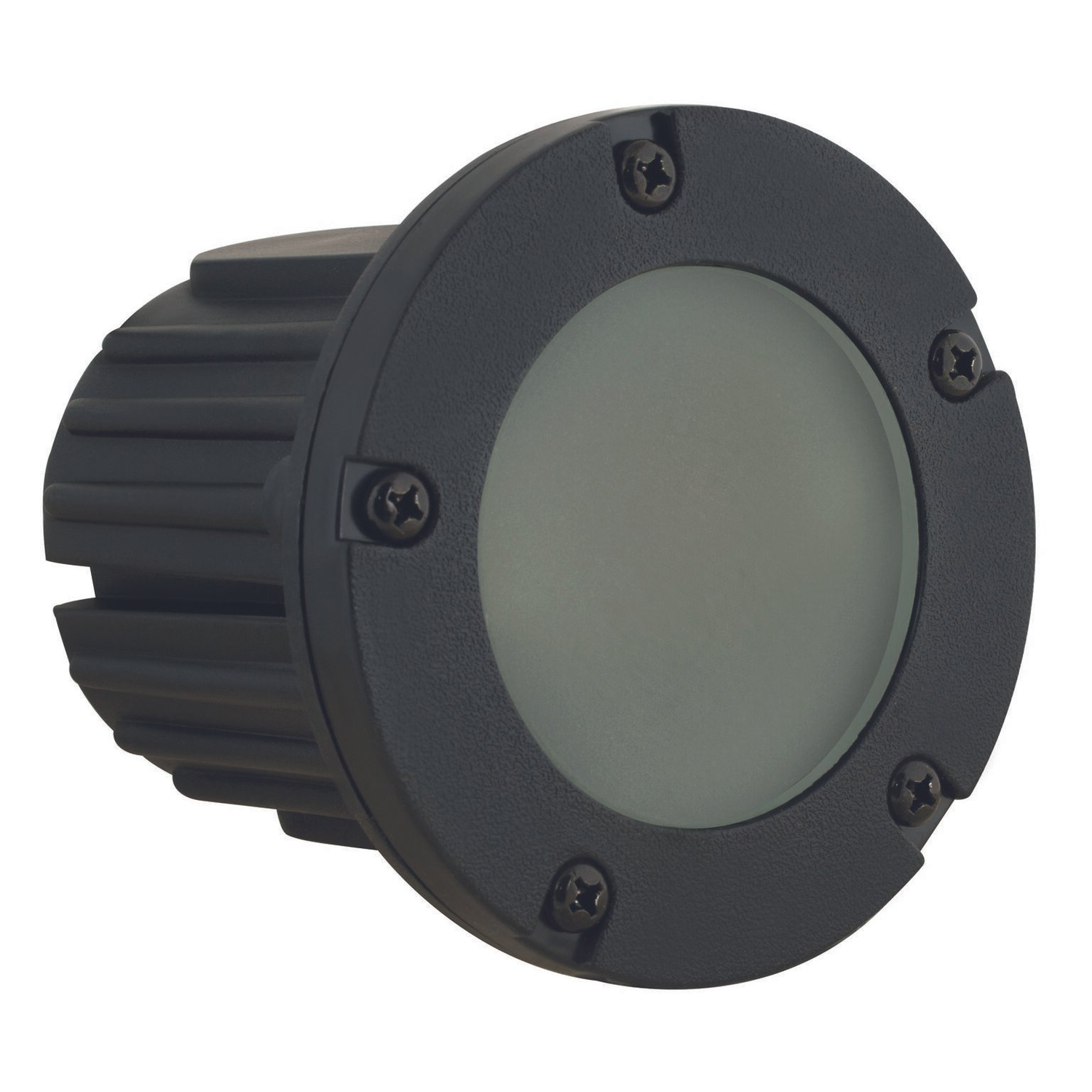

This glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 350 lumens at 2700K with a 60° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Dimensions: 4-7/8" Dia x 4-5/8" L
- Injection-molded composite housing engineered for high UV stability
- Frosted heat-resistant glass lens for even, low-glare illumination
- Top-grade adjustable ceramic bi-pin socket with retention clip; MR16 lamp type
- Included MR16 LED lamp: 5W, approx 350 Lumens, 2700K, 60° Wide Beam Angle, 50,000-hour life
- BT/LED lamps operate at 9–17V; remote 12V transformer required; prewired with 3 ft 18-2 SJT-W water-resistant cord
- Mounting: in-ground direct burial or concrete encasement
- Compatible with CX-237 concrete pour kit
- ETL listed; operating range -22°F to 122°F
- Warranty: 10-year fixture warranty
