Glass Lens Disc Step Light, In-Ground, 5 Inch, Black, 45° Wide Beam Angle, 350 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

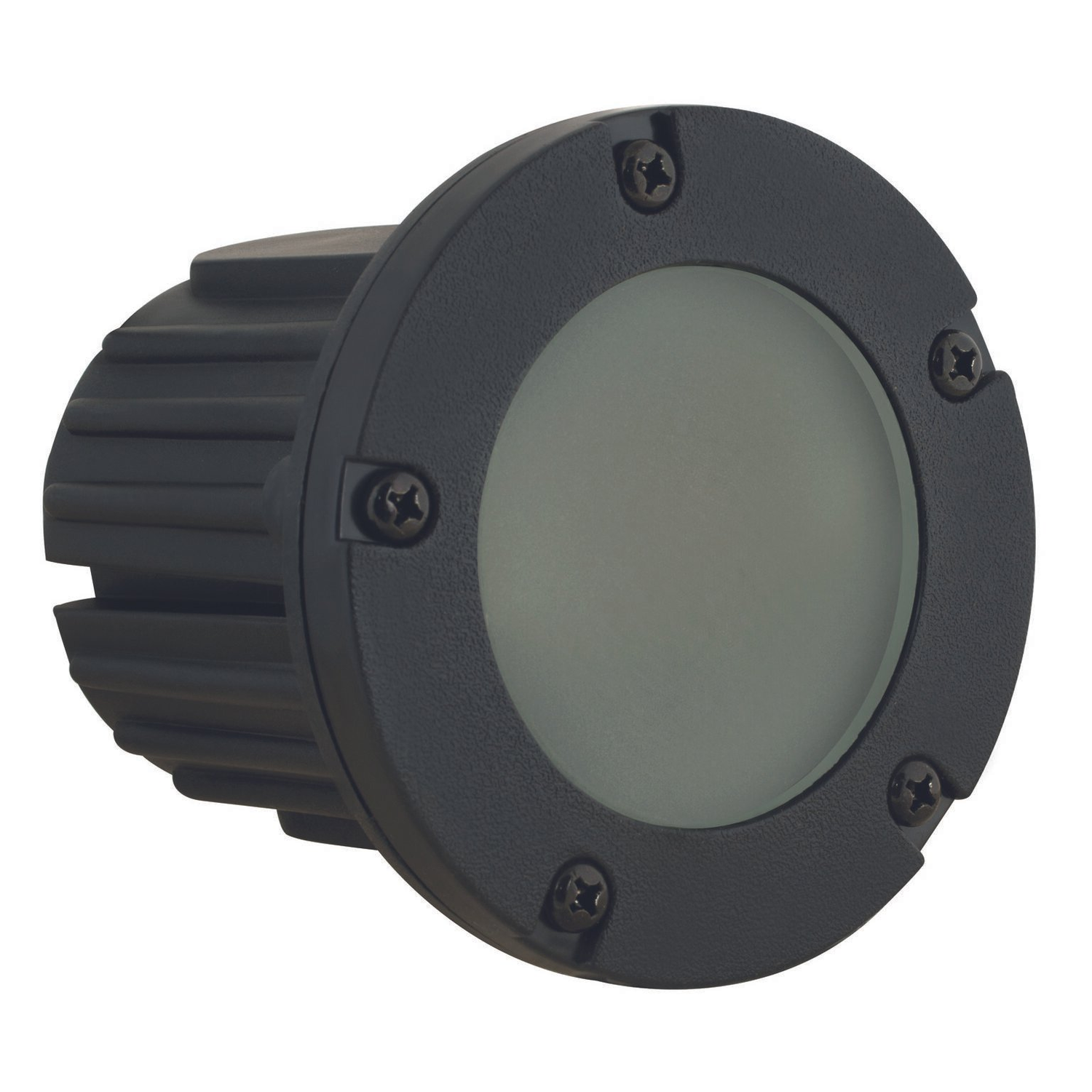

This glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 350 lumens at 2700K with a 45° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Step and brick light with molded housing engineered for high UV stability
- Finish: Black
- Frosted heat-resistant glass lens; adjustable ceramic bi-pin socket with retention clip
- Dimensions: 4-7/8 Inch Dia x 4-5/8 Inch L
- Includes MR16 LED lamp: 5W, 350 Lumens, 2700K, CRI 80, 45° beam angle, 50,000-hour lifespan
- LED lamps operate 9–17V and require a remote 12V transformer
- Prewired with 3 ft 18-2 SJT-W water-resistant cord
- Mounting: in-ground direct burial or concrete encasement
- Suitable for in-ground direct burial or concrete encasement; for concrete use, CX-237 concrete pour kit required
- ETL listed
- Operating temperature range: -22°F to 122°F
- Warranty: 10-year fixture warranty
This glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 350 lumens at 2700K with a 45° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Step and brick light with molded housing engineered for high UV stability
- Finish: Black
- Frosted heat-resistant glass lens; adjustable ceramic bi-pin socket with retention clip
- Dimensions: 4-7/8 Inch Dia x 4-5/8 Inch L
- Includes MR16 LED lamp: 5W, 350 Lumens, 2700K, CRI 80, 45° beam angle, 50,000-hour lifespan
- LED lamps operate 9–17V and require a remote 12V transformer
- Prewired with 3 ft 18-2 SJT-W water-resistant cord
- Mounting: in-ground direct burial or concrete encasement
- Suitable for in-ground direct burial or concrete encasement; for concrete use, CX-237 concrete pour kit required
- ETL listed
- Operating temperature range: -22°F to 122°F
- Warranty: 10-year fixture warranty
Overview
This glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 350 lumens at 2700K with a 45° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Step and brick light with molded housing engineered for high UV stability
- Finish: Black
- Frosted heat-resistant glass lens; adjustable ceramic bi-pin socket with retention clip
- Dimensions: 4-7/8 Inch Dia x 4-5/8 Inch L
- Includes MR16 LED lamp: 5W, 350 Lumens, 2700K, CRI 80, 45° beam angle, 50,000-hour lifespan
- LED lamps operate 9–17V and require a remote 12V transformer
- Prewired with 3 ft 18-2 SJT-W water-resistant cord
- Mounting: in-ground direct burial or concrete encasement
- Suitable for in-ground direct burial or concrete encasement; for concrete use, CX-237 concrete pour kit required
- ETL listed
- Operating temperature range: -22°F to 122°F
- Warranty: 10-year fixture warranty
Specifications
| Glass Lens Disc Step Light, In-Ground, 5 Inch, Black, 45° Wide Beam Angle, 350 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 350LM |
| Efficacy | 70LM/W |
| Wattage | 5W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 45° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 4-5/8" L |
| Finish | Black |
| Material | Composite |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Ten (10)-year warranty on fixture housing; five (5)-year manufacturer's warranty on lamps |
