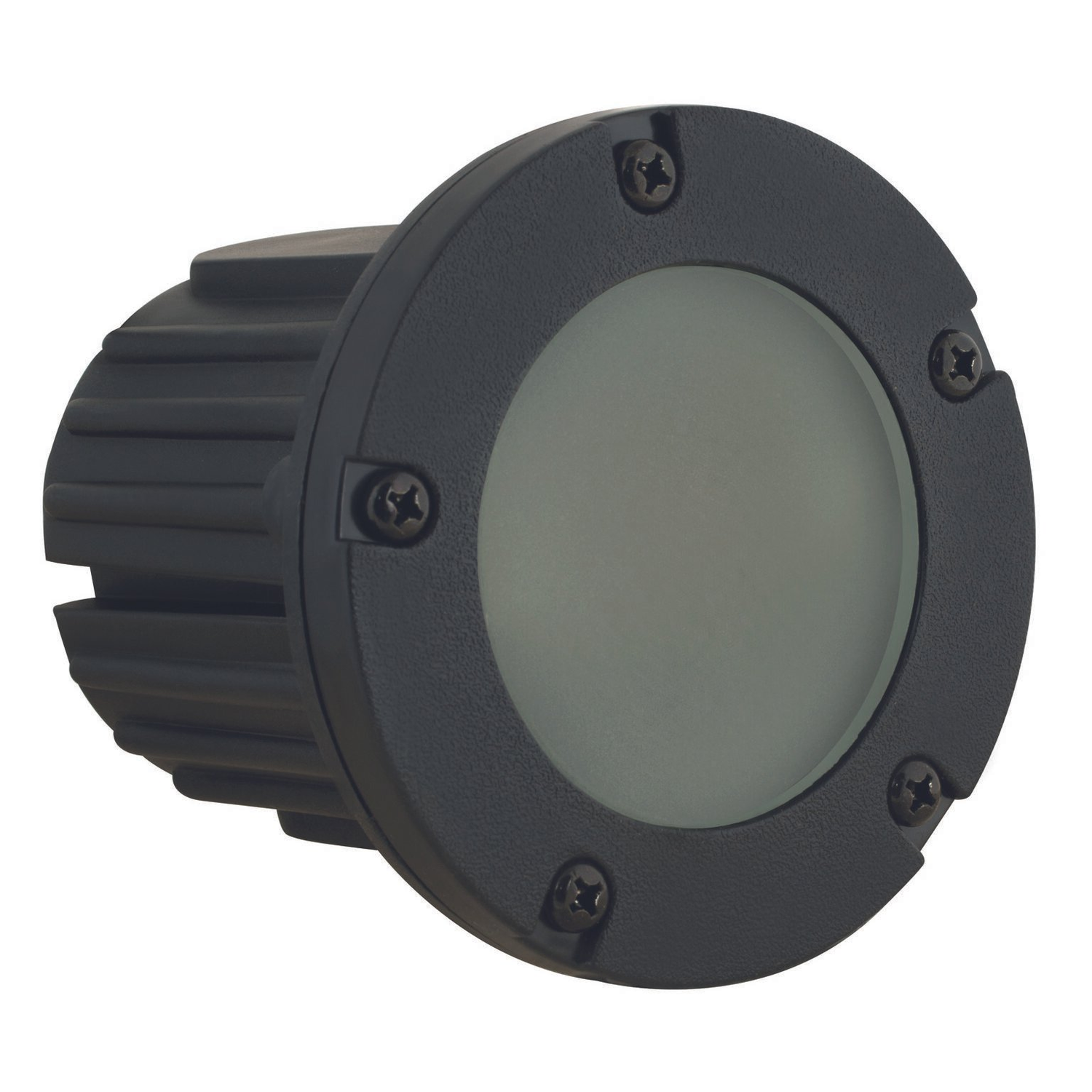

Glass Lens Disc Step Light, In-Ground, 5 Inch, Black, 60° Wide Beam Angle, 270 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 270 lumens at 2700K with a 60° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Composite injection-molded housing with high UV stability (architectural-grade construction)
- Dimensions: 4-7/8" Dia x 4-5/8" L
- Frosted heat-resistant glass lens
- Socket: adjustable ceramic MR16 bi-pin with retention clip
- Included lamp: MR16 LED, 3.5W, ~270 Lumens, 2700K, CRI 80, 60° beam angle, dimmable, 50,000-hour rated life, ~77.1 Lumens/W efficacy, ~25W halogen equivalent
- Remote 12V transformer required; BT/LED lamps operate at 9–17V
- Prewired with 3 ft 18-2 SJT-W water-resistant cord for quick installation
- Mounting: in-ground direct burial or concrete encasement
- Suitable for in-ground direct burial or concrete encasement (CX-237 concrete pour kit recommended for best results)
- ETL certified
- Warranty: 10-year fixture warranty
This glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 270 lumens at 2700K with a 60° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Composite injection-molded housing with high UV stability (architectural-grade construction)
- Dimensions: 4-7/8" Dia x 4-5/8" L
- Frosted heat-resistant glass lens
- Socket: adjustable ceramic MR16 bi-pin with retention clip
- Included lamp: MR16 LED, 3.5W, ~270 Lumens, 2700K, CRI 80, 60° beam angle, dimmable, 50,000-hour rated life, ~77.1 Lumens/W efficacy, ~25W halogen equivalent
- Remote 12V transformer required; BT/LED lamps operate at 9–17V
- Prewired with 3 ft 18-2 SJT-W water-resistant cord for quick installation
- Mounting: in-ground direct burial or concrete encasement
- Suitable for in-ground direct burial or concrete encasement (CX-237 concrete pour kit recommended for best results)
- ETL certified
- Warranty: 10-year fixture warranty
Overview
This glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 270 lumens at 2700K with a 60° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Composite injection-molded housing with high UV stability (architectural-grade construction)
- Dimensions: 4-7/8" Dia x 4-5/8" L
- Frosted heat-resistant glass lens
- Socket: adjustable ceramic MR16 bi-pin with retention clip
- Included lamp: MR16 LED, 3.5W, ~270 Lumens, 2700K, CRI 80, 60° beam angle, dimmable, 50,000-hour rated life, ~77.1 Lumens/W efficacy, ~25W halogen equivalent
- Remote 12V transformer required; BT/LED lamps operate at 9–17V
- Prewired with 3 ft 18-2 SJT-W water-resistant cord for quick installation
- Mounting: in-ground direct burial or concrete encasement
- Suitable for in-ground direct burial or concrete encasement (CX-237 concrete pour kit recommended for best results)
- ETL certified
- Warranty: 10-year fixture warranty
Specifications
| Glass Lens Disc Step Light, In-Ground, 5 Inch, Black, 60° Wide Beam Angle, 270 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 270LM |
| Efficacy | 77.1LM/W |
| Wattage | 3.5W |
| Wattage Equivalency | 25W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 60° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Included Components | COB LED |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 4-5/8" L |
| Finish | Black |
| Material | Composite |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Five (5) years warranty on fixture housing against manufacturer's defects, Five (5) years Manufacturer's Warranty for LED module |
