- Lumens: 270LM
- Voltage: Low Voltage
- Wattage: 3.5W
- Dimming: Dimmable
- Warranty: Injection-molded composite housing, warranty per manufacturer terms; five (5) year limited warranty on LED module

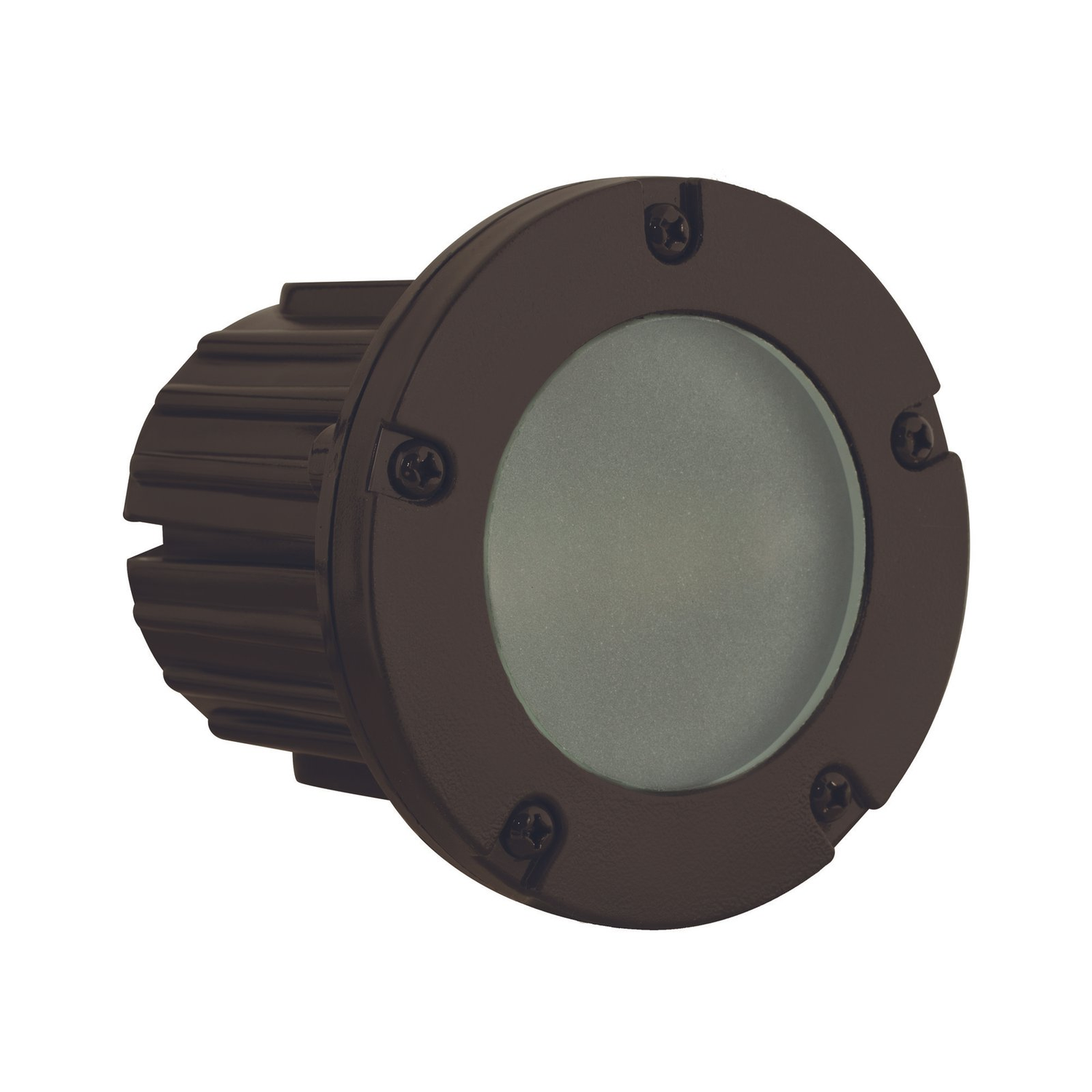

This glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 270 lumens at 2700K with a 60° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Injection-molded composite housing and faceplate with silicone O-ring gasket sealing; bronze finish
- Frosted, heat-resistant glass lens
- 12V MR16 top-grade adjustable ceramic bi-pin socket with retention clip; socket tilts ±25° for aiming and uses Teflon-jacketed wire lead
- Includes MR16 LED lamp: 3.5W, 270 Lumens at 2700K, CRI 80, 60° wide beam; dimmable; 50,000-hour lifetime; 25W halogen equivalent
- Factory prewired with 3 ft 18-2 SJT-W direct-burial cord
- Mounts for in-ground direct burial or concrete encasement
- CX-237 concrete pour kit recommended
- Warranty: 10-year fixture warranty
- Mounting: in-ground direct burial or concrete encasement
