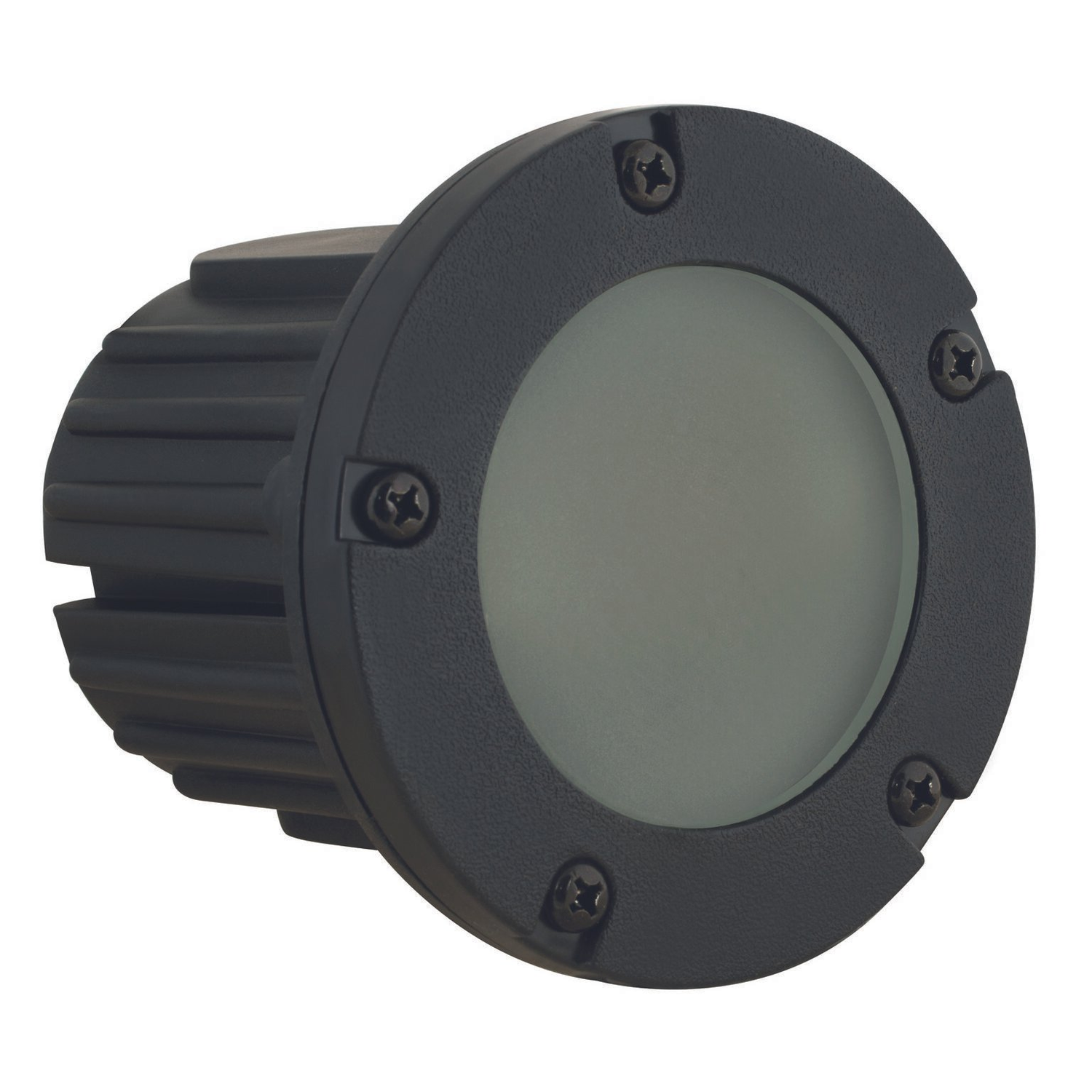

Glass Lens Disc Step Light, In-Ground, 5 Inch, Black, 45° Wide Beam Angle, 270 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 270 lumens at 2700K with a 45° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Step and brick light with architectural-grade composite housing and frosted heat-resistant glass lens
- Dimensions: 4-7/8" Dia x 4-5/8" L; injection-molded composite housing for high UV stability
- Mounting: in-ground direct burial or concrete encasement
- Prewired with 3 ft 18-2 SJT-W water-resistant cord
- Top-grade adjustable ceramic bi-pin socket with retention clip, MR16 base
- Included MR16 LED lamp: 3.5W, approx 270 Lumens, 2700K warm white, beam angle 45° Wide Beam Angle, 50,000-hour rated life; requires remote 12V transformer; BT/LED lamps operate 9–17V
- Can be mounted in-ground for direct burial or concrete encasement; compatible with CX-237 concrete pour kit
- ETL listed; operating temperature -22°F to 122°F
- Warranty: 10-year fixture warranty
This glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 270 lumens at 2700K with a 45° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Step and brick light with architectural-grade composite housing and frosted heat-resistant glass lens
- Dimensions: 4-7/8" Dia x 4-5/8" L; injection-molded composite housing for high UV stability
- Mounting: in-ground direct burial or concrete encasement
- Prewired with 3 ft 18-2 SJT-W water-resistant cord
- Top-grade adjustable ceramic bi-pin socket with retention clip, MR16 base
- Included MR16 LED lamp: 3.5W, approx 270 Lumens, 2700K warm white, beam angle 45° Wide Beam Angle, 50,000-hour rated life; requires remote 12V transformer; BT/LED lamps operate 9–17V
- Can be mounted in-ground for direct burial or concrete encasement; compatible with CX-237 concrete pour kit
- ETL listed; operating temperature -22°F to 122°F
- Warranty: 10-year fixture warranty
Overview
This glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 270 lumens at 2700K with a 45° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Step and brick light with architectural-grade composite housing and frosted heat-resistant glass lens
- Dimensions: 4-7/8" Dia x 4-5/8" L; injection-molded composite housing for high UV stability
- Mounting: in-ground direct burial or concrete encasement
- Prewired with 3 ft 18-2 SJT-W water-resistant cord
- Top-grade adjustable ceramic bi-pin socket with retention clip, MR16 base
- Included MR16 LED lamp: 3.5W, approx 270 Lumens, 2700K warm white, beam angle 45° Wide Beam Angle, 50,000-hour rated life; requires remote 12V transformer; BT/LED lamps operate 9–17V
- Can be mounted in-ground for direct burial or concrete encasement; compatible with CX-237 concrete pour kit
- ETL listed; operating temperature -22°F to 122°F
- Warranty: 10-year fixture warranty
Specifications
| Glass Lens Disc Step Light, In-Ground, 5 Inch, Black, 45° Wide Beam Angle, 270 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 270LM |
| Efficacy | 77.1LM/W |
| Wattage | 3.5W |
| Wattage Equivalency | 25W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 45° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Included Components | COB LED |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 4-5/8" L |
| Finish | Black |
| Material | Composite (injection-molded) |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Ten-year warranty on fixture housing against manufacturer's defects; five (5) year manufacturer's warranty on lamps. |
