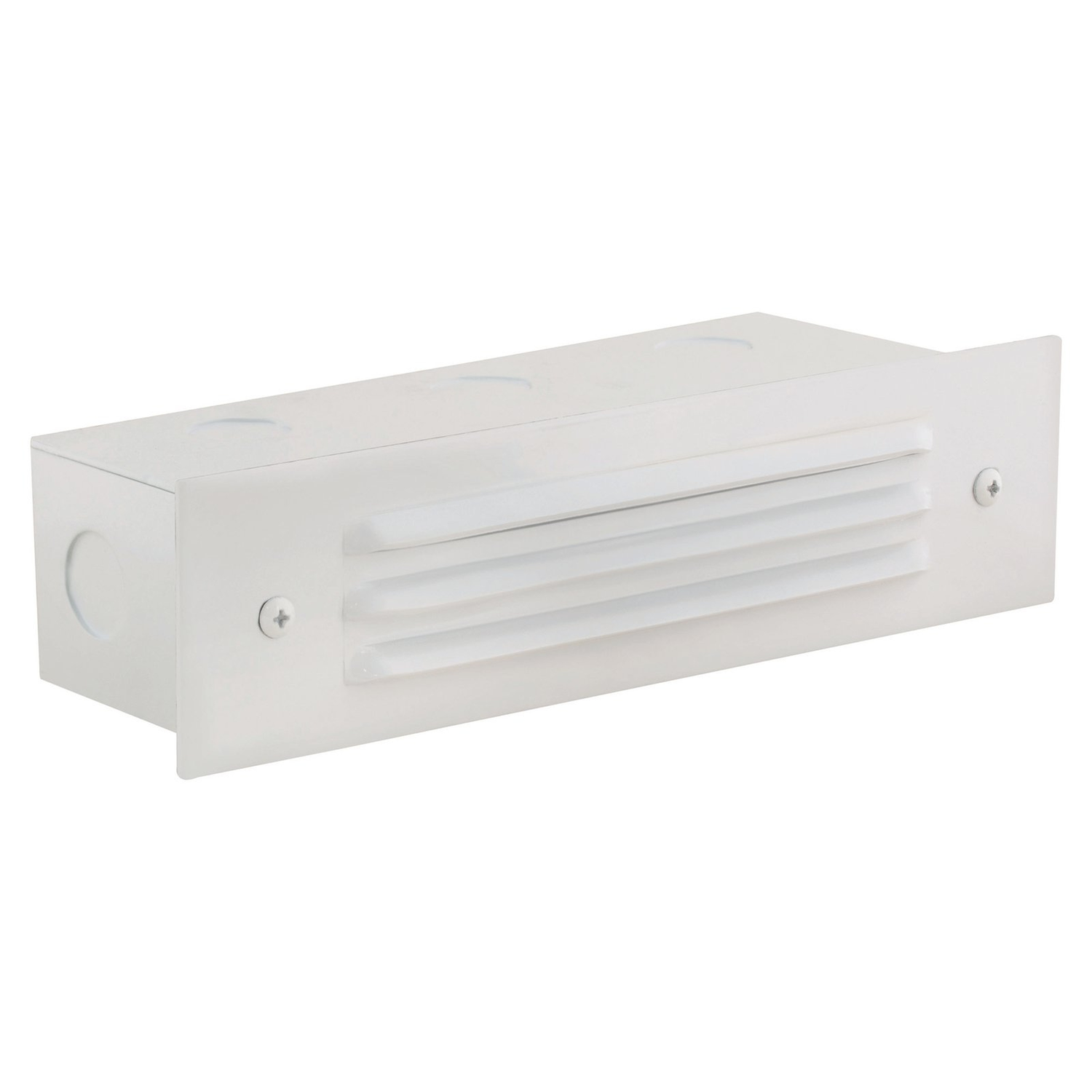

3-Louver Brick Step Light, Recessed, 9 Inch, White, 210 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This White 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- 3-louver brick/step light in WH (White) finish
- Designed for recessed-mount installation with a surface faceplate
- Aluminum faceplate with polyester UV powder coat and silicone gasket sealing the faceplate to the housing
- Corrosion-resistant galvanized steel recessed back box with self-leveling adjustable bars and five 1/2" NPT inlets for masonry or concrete installs
- High-impact white polycarbonate lens sealed and secured to the faceplate
- Two SCB (SC bayonet) sockets on an aluminum reflector
- Includes bundled bayonet LED lamps: 2W, 200 lumens at 2700K and 210 lumens at 3000K, 25,000-hour life (20W incandescent equivalent)
- Operates with LED lamps in an 8–21V range
- Prewired with direct-burial cord; ships with 4 lb ship weight
- Five-year warranty on fixture housing and faceplate
This White 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- 3-louver brick/step light in WH (White) finish
- Designed for recessed-mount installation with a surface faceplate
- Aluminum faceplate with polyester UV powder coat and silicone gasket sealing the faceplate to the housing
- Corrosion-resistant galvanized steel recessed back box with self-leveling adjustable bars and five 1/2" NPT inlets for masonry or concrete installs
- High-impact white polycarbonate lens sealed and secured to the faceplate
- Two SCB (SC bayonet) sockets on an aluminum reflector
- Includes bundled bayonet LED lamps: 2W, 200 lumens at 2700K and 210 lumens at 3000K, 25,000-hour life (20W incandescent equivalent)
- Operates with LED lamps in an 8–21V range
- Prewired with direct-burial cord; ships with 4 lb ship weight
- Five-year warranty on fixture housing and faceplate
Overview
This White 3-louver brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- 3-louver brick/step light in WH (White) finish
- Designed for recessed-mount installation with a surface faceplate
- Aluminum faceplate with polyester UV powder coat and silicone gasket sealing the faceplate to the housing
- Corrosion-resistant galvanized steel recessed back box with self-leveling adjustable bars and five 1/2" NPT inlets for masonry or concrete installs
- High-impact white polycarbonate lens sealed and secured to the faceplate
- Two SCB (SC bayonet) sockets on an aluminum reflector
- Includes bundled bayonet LED lamps: 2W, 200 lumens at 2700K and 210 lumens at 3000K, 25,000-hour life (20W incandescent equivalent)
- Operates with LED lamps in an 8–21V range
- Prewired with direct-burial cord; ships with 4 lb ship weight
- Five-year warranty on fixture housing and faceplate
Specifications
| 3-Louver Brick Step Light, Recessed, 9 Inch, White, 210 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 200 - 210LM |
| Efficacy | 100LM/W |
| Wattage | 2W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| LED Heads | 2 |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | Faceplate 9" W x 2-1/4" H |
| Finish | White |
| Material | Aluminum faceplate with polyester UV powder coat; galvanized steel back box; high-impact polycarbonate lens |
| Lifetime | 25,000 Hours |
| Warranty | Five (5) year warranty on fixture housing and faceplate; five (5) year manufacturer's warranty on the LED lamp. |
