Glass Lens Disc Step Light, In-Ground, 5 Inch, Bronze, 45° Wide Beam Angle, 270 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

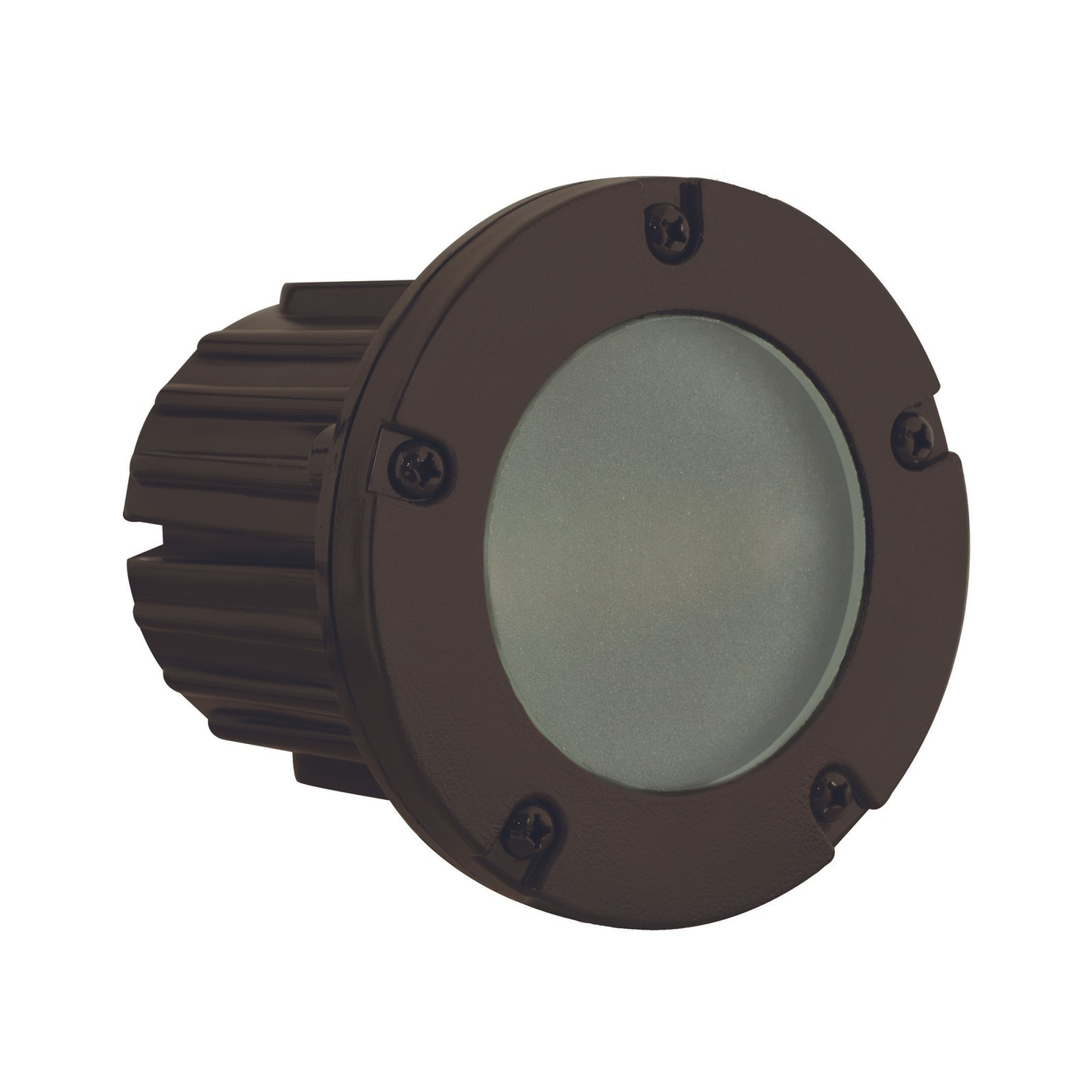

This glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 270 lumens at 2700K with a 45° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Composite lensed step/brick fixture with frosted heat-resistant glass lens
- Finish: Bronze
- Injection-molded composite housing and faceplate with silicone O-ring gasket for sealing
- Includes MR16 COB LED lamp: 3.5W, 270 Lumens, 2700K, 45° beam angle; CRI 80; dimmable; rated life 50,000 hours
- 12V MR16 socket compatible with LED MR16 lamps operating 9–17V
- Top-grade adjustable ceramic bi-pin socket tilts ±25° with retention clip
- Requires remote 12V transformer
- Factory prewired with 3 ft 18-2 SJT-W direct-burial cord
- Mounting: in-ground direct burial or concrete encasement
- Dimensions: 4-7/8 Inch Dia x 4-5/8 Inch L
- Warranty: 10-year fixture warranty
This glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 270 lumens at 2700K with a 45° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Composite lensed step/brick fixture with frosted heat-resistant glass lens
- Finish: Bronze
- Injection-molded composite housing and faceplate with silicone O-ring gasket for sealing
- Includes MR16 COB LED lamp: 3.5W, 270 Lumens, 2700K, 45° beam angle; CRI 80; dimmable; rated life 50,000 hours
- 12V MR16 socket compatible with LED MR16 lamps operating 9–17V
- Top-grade adjustable ceramic bi-pin socket tilts ±25° with retention clip
- Requires remote 12V transformer
- Factory prewired with 3 ft 18-2 SJT-W direct-burial cord
- Mounting: in-ground direct burial or concrete encasement
- Dimensions: 4-7/8 Inch Dia x 4-5/8 Inch L
- Warranty: 10-year fixture warranty
Overview
This glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 270 lumens at 2700K with a 45° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Composite lensed step/brick fixture with frosted heat-resistant glass lens
- Finish: Bronze
- Injection-molded composite housing and faceplate with silicone O-ring gasket for sealing
- Includes MR16 COB LED lamp: 3.5W, 270 Lumens, 2700K, 45° beam angle; CRI 80; dimmable; rated life 50,000 hours
- 12V MR16 socket compatible with LED MR16 lamps operating 9–17V
- Top-grade adjustable ceramic bi-pin socket tilts ±25° with retention clip
- Requires remote 12V transformer
- Factory prewired with 3 ft 18-2 SJT-W direct-burial cord
- Mounting: in-ground direct burial or concrete encasement
- Dimensions: 4-7/8 Inch Dia x 4-5/8 Inch L
- Warranty: 10-year fixture warranty
Specifications
| Glass Lens Disc Step Light, In-Ground, 5 Inch, Bronze, 45° Wide Beam Angle, 270 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 270LM |
| Efficacy | 77.1LM/W |
| Wattage | 3.5W |
| Wattage Equivalency | 25W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 45° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Included Components | COB LED |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 4-5/8" L |
| Finish | Bronze |
| Material | Injection-molded composite housing, frosted heat-resistant glass lens |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Five-year limited warranty on LED module; composite fixture housing warranty per manufacturer terms. |
