Brass Hooded Glass Lens Disc Step Light, In-Ground, 5 Inch, Gun Metal, 45° Wide Beam Angle, 270 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

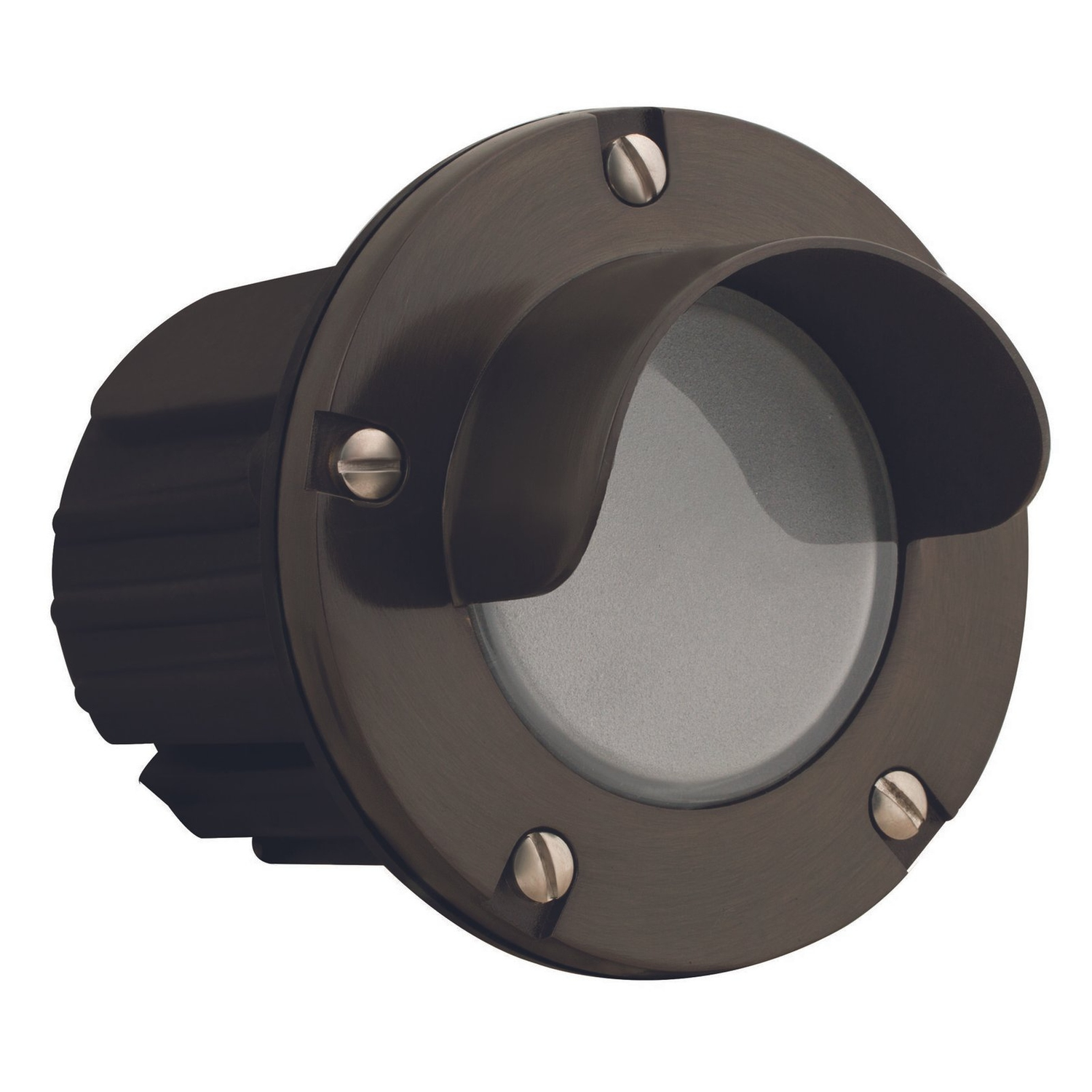

This brass hooded glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 270 lumens at 2700K with a 45° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Hooded step light with frosted flat glass lens and Gun Metal finish
- Die-cast brass faceplate and injection-molded composite housing with high UV stability
- Adjustable ceramic MR16 bi-pin socket with retention clip; socket tilt ±25°
- Includes 3.5W LED MR16 lamp: 270 Lumens, 2700K, 45° beam angle, CRI 80; dimmable; 50,000-hour rated life; 77.1 Lumens/W efficacy
- Remote 12V transformer required; LED lamp operating range 9–17V
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Dimensions: 4-7/8" Dia x 6-1/8" L
- ETL listed; operating range -22°F to 122°F
- Warranty: Limited lifetime warranty on faceplate; 10-year warranty on composite housing
- Mounting: in-ground direct burial or concrete encasement
This brass hooded glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 270 lumens at 2700K with a 45° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Hooded step light with frosted flat glass lens and Gun Metal finish
- Die-cast brass faceplate and injection-molded composite housing with high UV stability
- Adjustable ceramic MR16 bi-pin socket with retention clip; socket tilt ±25°
- Includes 3.5W LED MR16 lamp: 270 Lumens, 2700K, 45° beam angle, CRI 80; dimmable; 50,000-hour rated life; 77.1 Lumens/W efficacy
- Remote 12V transformer required; LED lamp operating range 9–17V
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Dimensions: 4-7/8" Dia x 6-1/8" L
- ETL listed; operating range -22°F to 122°F
- Warranty: Limited lifetime warranty on faceplate; 10-year warranty on composite housing
- Mounting: in-ground direct burial or concrete encasement
Overview
This brass hooded glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 270 lumens at 2700K with a 45° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Hooded step light with frosted flat glass lens and Gun Metal finish
- Die-cast brass faceplate and injection-molded composite housing with high UV stability
- Adjustable ceramic MR16 bi-pin socket with retention clip; socket tilt ±25°
- Includes 3.5W LED MR16 lamp: 270 Lumens, 2700K, 45° beam angle, CRI 80; dimmable; 50,000-hour rated life; 77.1 Lumens/W efficacy
- Remote 12V transformer required; LED lamp operating range 9–17V
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Dimensions: 4-7/8" Dia x 6-1/8" L
- ETL listed; operating range -22°F to 122°F
- Warranty: Limited lifetime warranty on faceplate; 10-year warranty on composite housing
- Mounting: in-ground direct burial or concrete encasement
Specifications
| Brass Hooded Glass Lens Disc Step Light, In-Ground, 5 Inch, Gun Metal, 45° Wide Beam Angle, 270 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 270LM |
| Efficacy | 77.1LM/W |
| Wattage | 3.5W |
| Wattage Equivalency | 25W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Dimming Details | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 45° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Included Components | COB LED |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 6-1/8" L |
| Finish | Gun Metal |
| Material | Die-cast brass faceplate; injection-molded composite housing; frosted, heat-resistant flat glass lens; ceramic MR16 socket |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime warranty on brass faceplate; 10-year housing warranty; 5-year manufacturer warranty on lamps |
