- Lumens: 270LM
- Voltage: Low Voltage
- Wattage: 3.5W
- Dimming: Dimmable
- Warranty: Limited lifetime on brass faceplate. 10-year warranty on housing for manufacturer defects. 5-year manufacturer warranty for lamps.

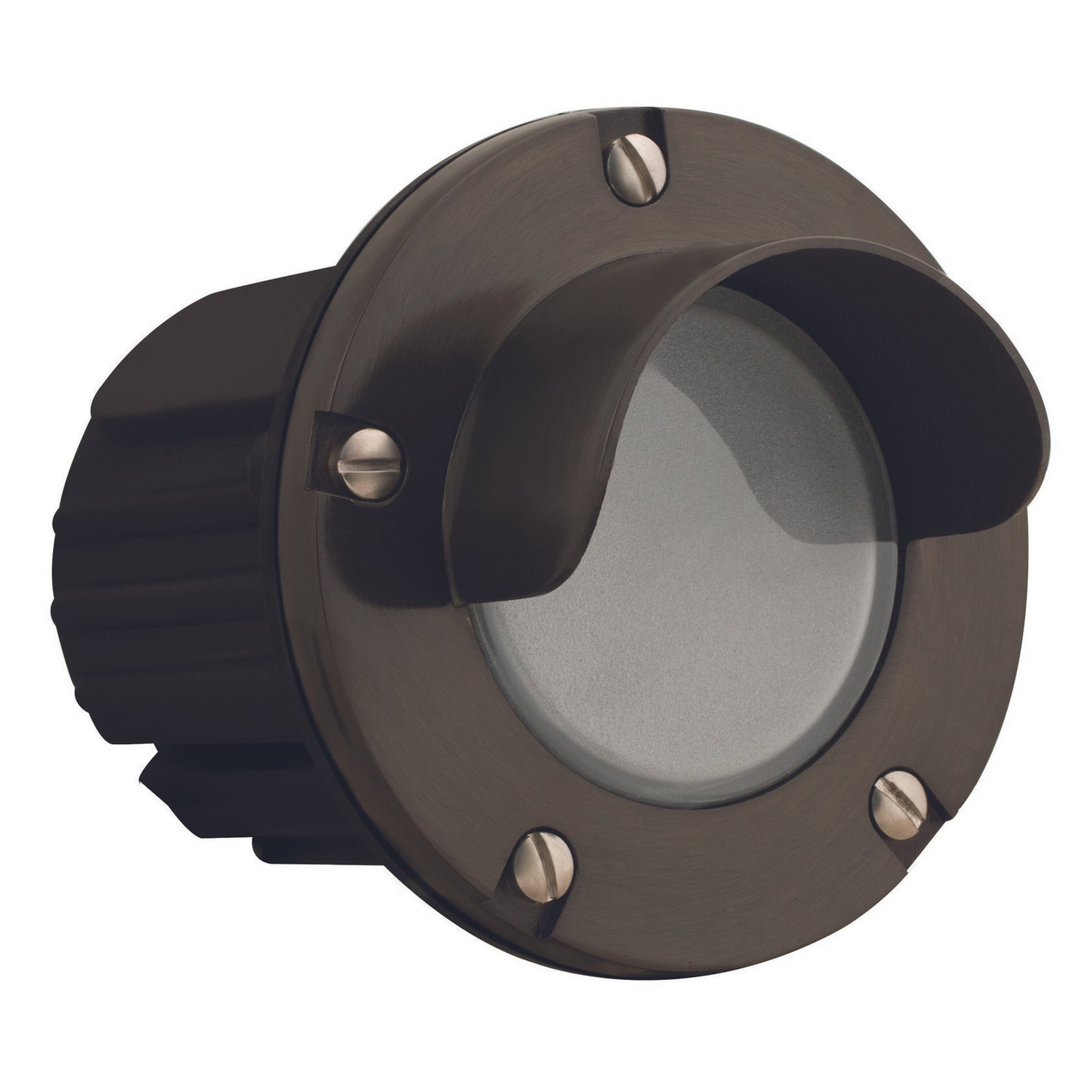

This brass hooded glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 270 lumens at 2700K with a 15° narrow beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Hooded step light with frosted flat glass lens and die-cast brass faceplate
- Architectural-grade step and brick light with injection-molded composite housing for high UV stability
- Adjustable ceramic MR16 bi-pin socket with retention clip; socket tilt ±25°
- Includes MR16 LED lamp: 3.5W nominal, ~270 Lumens, 2700K, COB LED, CRI 80, 15° spot beam, 50,000-hour life; lamp operating range 9–17V
- 12V system; remote 12V transformer required
- Prewired with 3 ft of 18-2 SJT-W direct-burial cord for easy installation
- Mounting: in-ground direct burial or concrete encasement
- Mounting: in-ground direct burial or concrete encasement
- Dimensions: 4-7/8" Dia x 6-1/8" L
- Warranty: Limited lifetime warranty on faceplate; 10-year warranty on composite housing
