Brass Hooded Glass Lens Disc Step Light, In-Ground, 5 Inch, Gun Metal, 45° Wide Beam Angle, 350 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

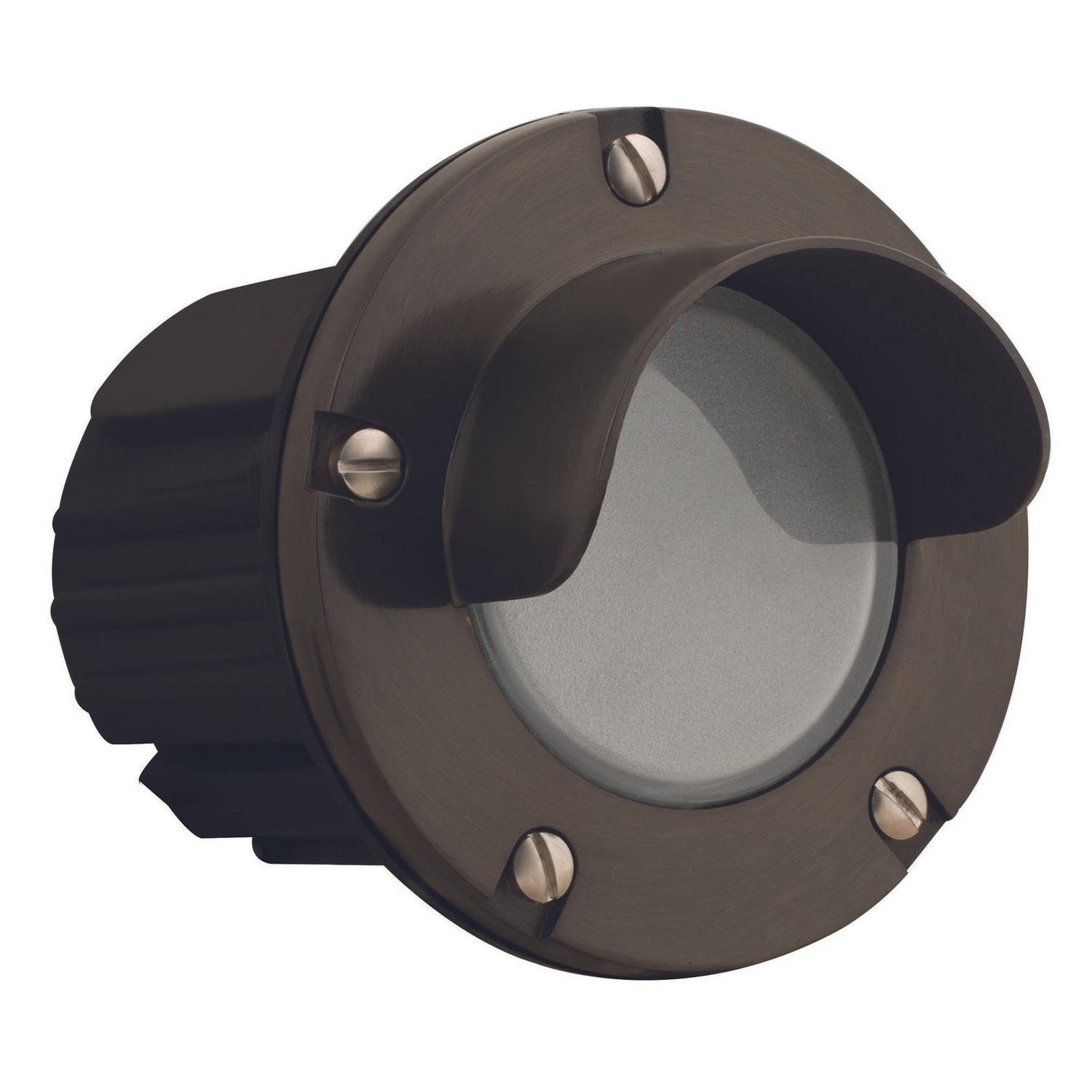

This brass hooded glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 350 lumens at 2700K with a 45° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Hooded step light in Gun Metal finish with frosted, heat-resistant flat glass lens
- Die-cast brass faceplate and injection-molded composite housing for high UV stability
- Silicone O-ring gasket seals faceplate to housing
- Adjustable ceramic MR16 bi-pin socket with retention clip and ±25° tilt
- Includes 5W LED MR16 lamp: 350 Lumens, 2700K, CRI 80, 45° beam angle, dimmable, 9–17V operating range, 50,000-hour rated life
- Remote 12V transformer required
- Prewired with 3 ft of 18-2 SJT-W direct-burial cord
- Supports MR16 lamps up to 50W max
- Dimensions: 4-7/8" Dia x 6-1/8" L; weight 4.0 lbs
- Warranty: Limited lifetime warranty on faceplate; 10-year warranty on composite housing
- Mounting: in-ground direct burial or concrete encasement
This brass hooded glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 350 lumens at 2700K with a 45° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Hooded step light in Gun Metal finish with frosted, heat-resistant flat glass lens
- Die-cast brass faceplate and injection-molded composite housing for high UV stability
- Silicone O-ring gasket seals faceplate to housing
- Adjustable ceramic MR16 bi-pin socket with retention clip and ±25° tilt
- Includes 5W LED MR16 lamp: 350 Lumens, 2700K, CRI 80, 45° beam angle, dimmable, 9–17V operating range, 50,000-hour rated life
- Remote 12V transformer required
- Prewired with 3 ft of 18-2 SJT-W direct-burial cord
- Supports MR16 lamps up to 50W max
- Dimensions: 4-7/8" Dia x 6-1/8" L; weight 4.0 lbs
- Warranty: Limited lifetime warranty on faceplate; 10-year warranty on composite housing
- Mounting: in-ground direct burial or concrete encasement
Overview
This brass hooded glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 350 lumens at 2700K with a 45° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Hooded step light in Gun Metal finish with frosted, heat-resistant flat glass lens
- Die-cast brass faceplate and injection-molded composite housing for high UV stability
- Silicone O-ring gasket seals faceplate to housing
- Adjustable ceramic MR16 bi-pin socket with retention clip and ±25° tilt
- Includes 5W LED MR16 lamp: 350 Lumens, 2700K, CRI 80, 45° beam angle, dimmable, 9–17V operating range, 50,000-hour rated life
- Remote 12V transformer required
- Prewired with 3 ft of 18-2 SJT-W direct-burial cord
- Supports MR16 lamps up to 50W max
- Dimensions: 4-7/8" Dia x 6-1/8" L; weight 4.0 lbs
- Warranty: Limited lifetime warranty on faceplate; 10-year warranty on composite housing
- Mounting: in-ground direct burial or concrete encasement
Specifications
| Brass Hooded Glass Lens Disc Step Light, In-Ground, 5 Inch, Gun Metal, 45° Wide Beam Angle, 350 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 350LM |
| Efficacy | 70LM/W |
| Wattage | 5W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 45° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 6-1/8" L |
| Finish | Gun Metal |
| Material | Die-cast brass faceplate and injection-molded composite housing |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime warranty on stainless steel fixture housing, Five (5) years limited warranty on LED module |
