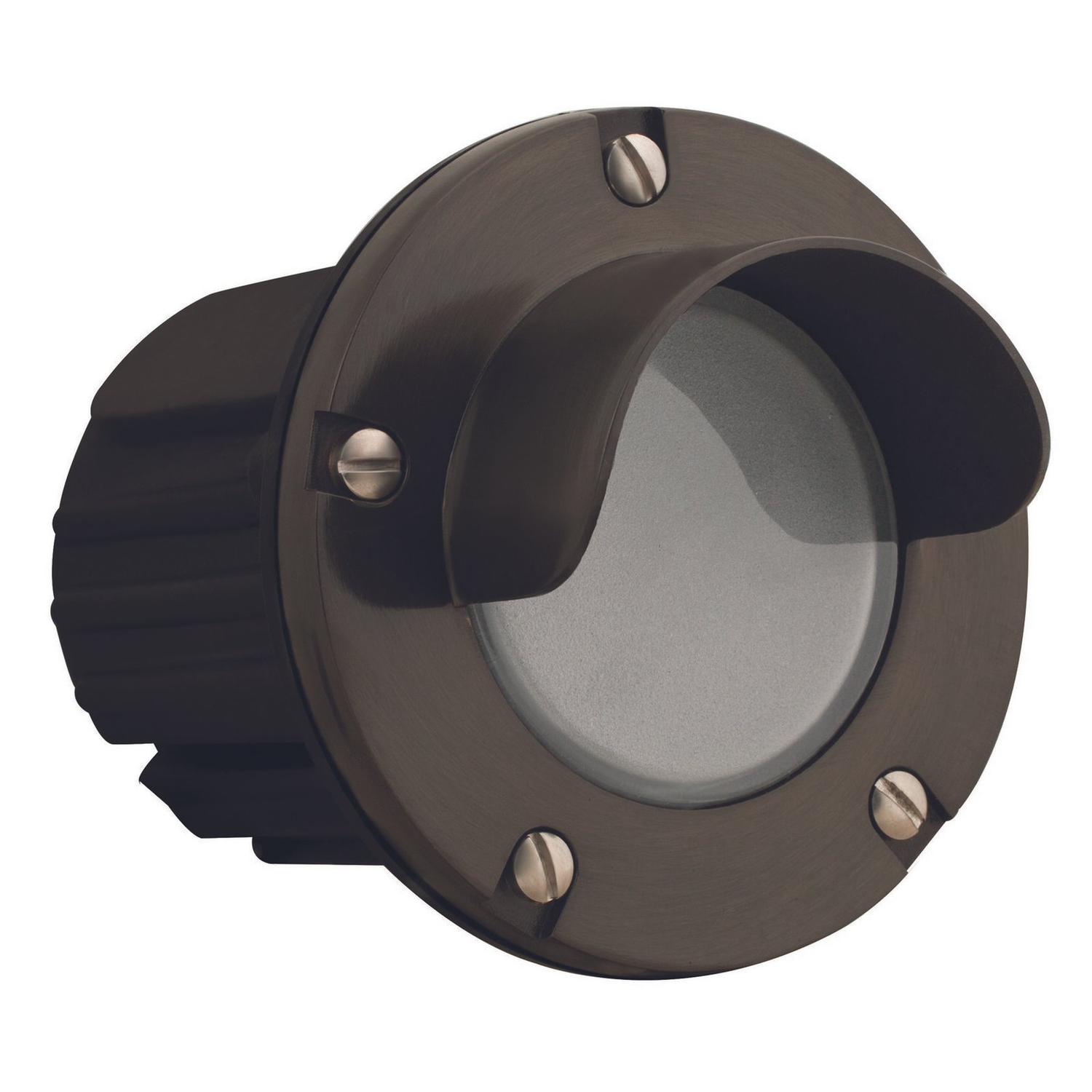

Brass Hooded Glass Lens Disc Step Light, In-Ground, 5 Inch, Gun Metal, 60° Wide Beam Angle, 350 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This brass hooded glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 350 lumens at 2700K with a 60° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Hooded step light with frosted lens and Gun Metal finish
- Die-cast brass faceplate and injection-molded composite housing with high UV stability
- Frosted heat-resistant flat glass lens with silicone O-ring gasket for sealed installation
- Adjustable ceramic MR16 bi-pin socket with retention clip; socket tilt ±25°
- Includes MR16 LED lamp: 5W wide flood, 350 Lumens, 2700K, 70 Lumens/W, 50,000-hour rated life, dimmable; operating range 9–17V
- Remote 12V transformer required
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Dimensions: 4-7/8 Inch Dia x 6-1/8 Inch length
- Warranty: Limited lifetime warranty on faceplate; 10-year warranty on composite housing
- Beam angle: 60° wide beam
- Mounting: in-ground direct burial or concrete encasement
This brass hooded glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 350 lumens at 2700K with a 60° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Hooded step light with frosted lens and Gun Metal finish
- Die-cast brass faceplate and injection-molded composite housing with high UV stability
- Frosted heat-resistant flat glass lens with silicone O-ring gasket for sealed installation
- Adjustable ceramic MR16 bi-pin socket with retention clip; socket tilt ±25°
- Includes MR16 LED lamp: 5W wide flood, 350 Lumens, 2700K, 70 Lumens/W, 50,000-hour rated life, dimmable; operating range 9–17V
- Remote 12V transformer required
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Dimensions: 4-7/8 Inch Dia x 6-1/8 Inch length
- Warranty: Limited lifetime warranty on faceplate; 10-year warranty on composite housing
- Beam angle: 60° wide beam
- Mounting: in-ground direct burial or concrete encasement
Overview
This brass hooded glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 350 lumens at 2700K with a 60° wide beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Hooded step light with frosted lens and Gun Metal finish
- Die-cast brass faceplate and injection-molded composite housing with high UV stability
- Frosted heat-resistant flat glass lens with silicone O-ring gasket for sealed installation
- Adjustable ceramic MR16 bi-pin socket with retention clip; socket tilt ±25°
- Includes MR16 LED lamp: 5W wide flood, 350 Lumens, 2700K, 70 Lumens/W, 50,000-hour rated life, dimmable; operating range 9–17V
- Remote 12V transformer required
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Dimensions: 4-7/8 Inch Dia x 6-1/8 Inch length
- Warranty: Limited lifetime warranty on faceplate; 10-year warranty on composite housing
- Beam angle: 60° wide beam
- Mounting: in-ground direct burial or concrete encasement
Specifications
| Brass Hooded Glass Lens Disc Step Light, In-Ground, 5 Inch, Gun Metal, 60° Wide Beam Angle, 350 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 350LM |
| Efficacy | 70LM/W |
| Wattage | 5W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 60° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 6-1/8" L |
| Finish | Gun Metal |
| Material | Die-cast brass faceplate; injection-molded composite housing; frosted heat-resistant flat glass lens |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime warranty on brass faceplate; 5-Year manufacturer warranty on the lamp |
