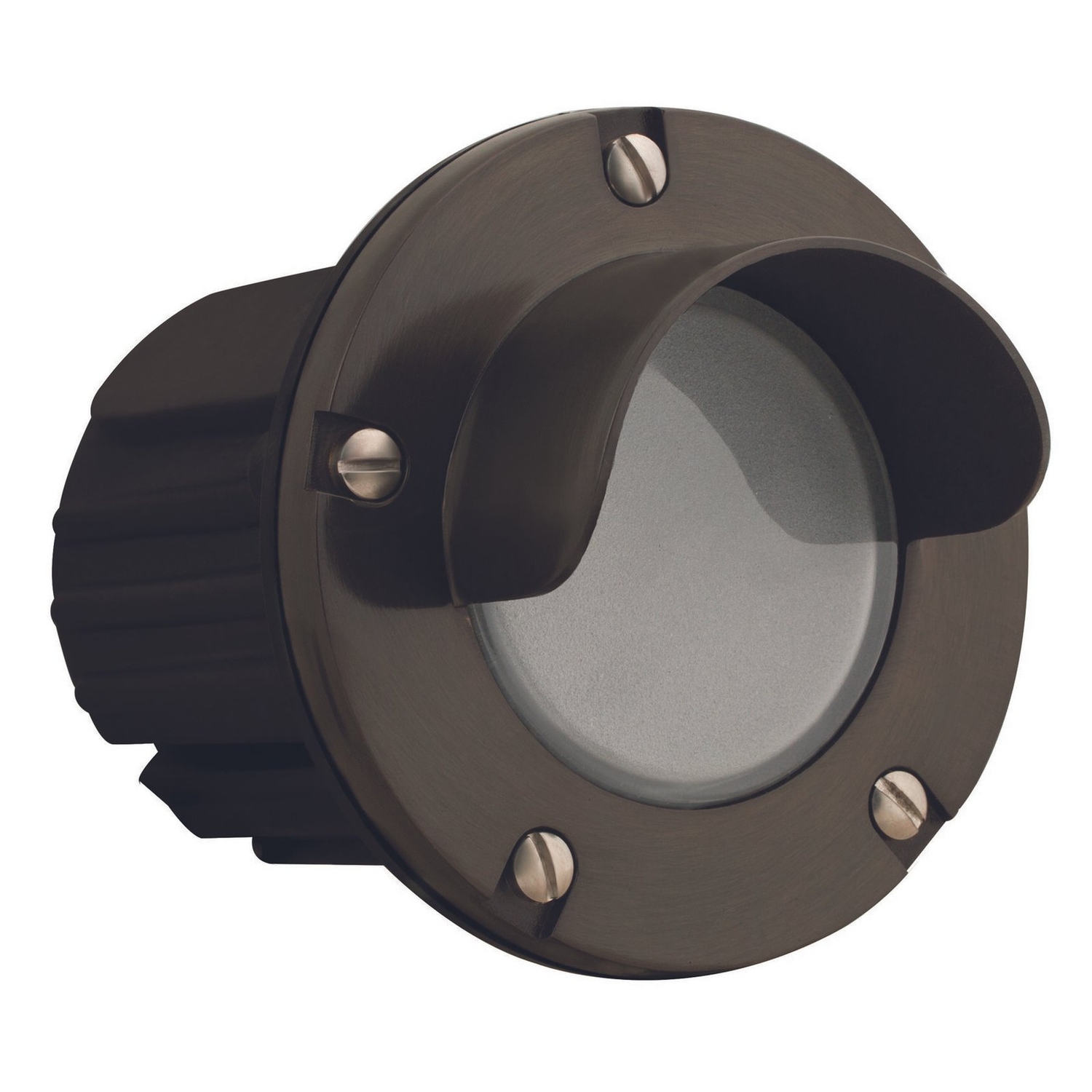

Brass Hooded Glass Lens Disc Step Light, In-Ground, 5 Inch, Gun Metal, 15° Narrow Beam Angle, 350 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This brass hooded glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 350 lumens at 2700K with a 15° narrow beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Die-cast brass faceplate with natural toning process, finished in Gun Metal
- Injection-molded composite housing with high UV stability
- Frosted heat-resistant flat glass lens; sealed with silicone O-ring gasket between faceplate and housing
- Adjustable ceramic MR16 bi-pin socket with retention clip; socket tilt ±25° for precise aiming
- Includes MR16 LED lamp: 5W COB, 15° narrow spot beam, 2700K, 350 Lumens, CRI 80, dimmable, 50,000-hour life
- Operates on remote 12V transformer; LED lamp operating range 9–17V
- MR16 halogen compatibility up to 50W max
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Mounting: in-ground direct burial or concrete encasement
- ETL listed
- Warranty: Limited lifetime warranty on faceplate; 10-year warranty on composite housing
This brass hooded glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 350 lumens at 2700K with a 15° narrow beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Die-cast brass faceplate with natural toning process, finished in Gun Metal
- Injection-molded composite housing with high UV stability
- Frosted heat-resistant flat glass lens; sealed with silicone O-ring gasket between faceplate and housing
- Adjustable ceramic MR16 bi-pin socket with retention clip; socket tilt ±25° for precise aiming
- Includes MR16 LED lamp: 5W COB, 15° narrow spot beam, 2700K, 350 Lumens, CRI 80, dimmable, 50,000-hour life
- Operates on remote 12V transformer; LED lamp operating range 9–17V
- MR16 halogen compatibility up to 50W max
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Mounting: in-ground direct burial or concrete encasement
- ETL listed
- Warranty: Limited lifetime warranty on faceplate; 10-year warranty on composite housing
Overview
This brass hooded glass lens disc step light is designed for in-ground direct-burial or concrete-encasement installation and has a 4-7/8-inch customer-facing face. The included lamp produces 350 lumens at 2700K with a 15° narrow beam angle. The adjustable MR16 socket tilts ±25° for aiming, and a remote 12V transformer is required.
Features
-
- Die-cast brass faceplate with natural toning process, finished in Gun Metal
- Injection-molded composite housing with high UV stability
- Frosted heat-resistant flat glass lens; sealed with silicone O-ring gasket between faceplate and housing
- Adjustable ceramic MR16 bi-pin socket with retention clip; socket tilt ±25° for precise aiming
- Includes MR16 LED lamp: 5W COB, 15° narrow spot beam, 2700K, 350 Lumens, CRI 80, dimmable, 50,000-hour life
- Operates on remote 12V transformer; LED lamp operating range 9–17V
- MR16 halogen compatibility up to 50W max
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Mounting: in-ground direct burial or concrete encasement
- ETL listed
- Warranty: Limited lifetime warranty on faceplate; 10-year warranty on composite housing
Specifications
| Brass Hooded Glass Lens Disc Step Light, In-Ground, 5 Inch, Gun Metal, 15° Narrow Beam Angle, 350 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 350LM |
| Efficacy | 70LM/W |
| Wattage | 5W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 15° Narrow Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. x 6-1/8" L |
| Finish | Gun Metal |
| Material | Die-cast brass faceplate; injection-molded composite housing; frosted heat-resistant flat glass lens |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime warranty on brass faceplate; 10-year warranty on housing for manufacturer defects; five (5) year manufacturer's warranty on the LED lamp |
